Ford Fiesta: Drum Brake / Wheel Cylinder. Removal and Installation
Ford Fiesta 2014 - 2019 Service Manual / Brake System / Drum Brake / Wheel Cylinder. Removal and Installation
Removal
NOTE: Removal steps in this procedure may include installation details.
-
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-
Remove the brake drum.
Refer to: Brake Drum (206-02 Drum Brake, Removal and Installation).
-
NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
-

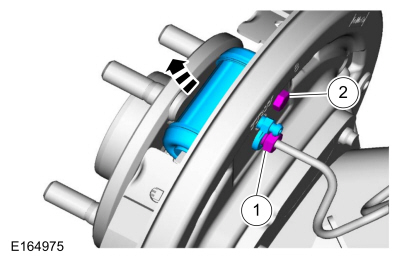

Disconnect the brake tube fitting.
Torque: 159 lb.in (18 Nm)
-
Remove the wheel cylinder bolt and wheel cylinder.
Torque: 106 lb.in (12 Nm)
-
Disconnect the brake tube fitting.
 |
Installation
-
To install, reverse the removal procedure.
-
Bleed the Brake System.
Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures).
Brake Shoes. Removal and Installation
Special Tool(s) /
General Equipment
Flat Headed Screw Driver
Materials
Name
Specification
Motorcraft® Silicone Brake Caliper Grease and Dielectric CompoundXG-3-A
ESA-M1C200-AESE-M1C171-A
Removal
NOTE:
Removal steps in this procedure may contain installation details...
