Ford Fiesta: Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Crankshaft Front Seal. Removal and Installation

Special Tool(s) / General Equipment

100-001 (T50T-100-A)
Slide Hammer
303-175 (T82L-6316-A)
Installer, Crankshaft Vibration Damper
TKIT-1982-F
303-335 (T88T-6701-A)
Installer, Front Cover Oil Seal
TKIT-1988-FLM
TKIT-1988-F
303-420 (T92P-6701-BH)
Installer, Crankshaft Front Oil Seal
TKIT-1992-FLMH/LMH
TKIT-1992-LMH/MH
308-375
Remover, Input Shaft Seal
TKIT-2005U-M
TKIT-1999-F/FLM/LT

Materials

Name Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
XO-5W20-Q1SP
WSS-M2C945-B1


Removal

  1. Remove the timing belt.
    Refer to: Timing Belt (303-01B Engine - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

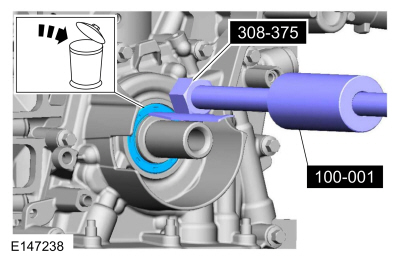

  1. Using the special tools, remove and discard the crankshaft front seal.
    Install Special Service Tool: 100-001 (T50T-100-A)  Slide Hammer. , 308-375  Remover, Input Shaft Seal.

Installation

  1. NOTE: Make sure that the mating faces are clean and free of foreign material.

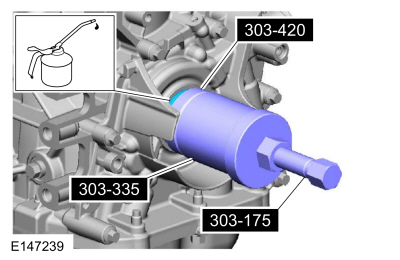

    Using the special tools, lubricate and install the new crankshaft front seal.
    Use Special Service Tool: 303-175 (T82L-6316-A)  Installer, Crankshaft Vibration Damper. , 303-335 (T88T-6701-A)  Installer, Front Cover Oil Seal. , 303-420 (T92P-6701-BH)  Installer, Crankshaft Front Oil Seal.
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
  1. Install the timing belt.
    Refer to: Timing Belt (303-01B Engine - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

    Camshaft Seal. Removal and Installation

    S..

    Crankshaft Rear Seal. Removal and Installation

    Removal Remove the following items: Remove the flywheel. Refer to: Flywheel (303-01A Engine - 1.6L Duratec-16V Ti-VCT (88kW/120PS) – Sigma, Removal and Installation)...
