Ford Fiesta: Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Camshaft Seal. Removal and Installation

Special Tool(s) / General Equipment

303-1532
Installer, Camshaft Seal
TKIT-2010B-FLM
TKIT-2010B-ROW
303-409 (T92C-6700-CH)
Remover, Crankshaft Seal
TKIT-1992-FH/FMH/FLMH
TKIT-1993-LMH/MH

Materials

Name Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
XO-5W20-Q1SP
WSS-M2C945-B1


Removal

  1. Remove the VCT unit.
    Refer to: Variable Camshaft Timing (VCT) Unit (303-01B Engine - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

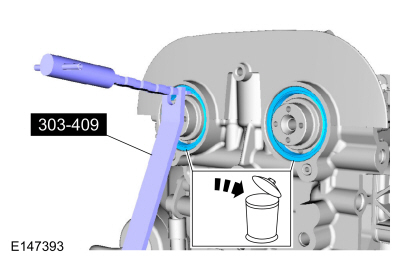

  1. Using special tool, remove and discard the camshaft seals.
    Use Special Service Tool: 303-409 (T92C-6700-CH)  Remover, Crankshaft Seal.

Installation

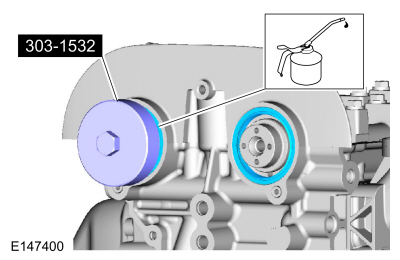

  1. Coat the camshaft bearing journal and the sealing lip of the camshaft oil seal with clean engine oil.
    Use Special Service Tool: 303-1532  Installer, Camshaft Seal.
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
  1. Install the VCT unit.
    Refer to: Variable Camshaft Timing (VCT) Unit (303-01B Engine - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).
