Ford Fiesta: Power Steering / Steering Gear. Removal and Installation
Ford Fiesta 2014 - 2019 Service Manual / Steering System / Power Steering / Steering Gear. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the front subframe.
Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).
-

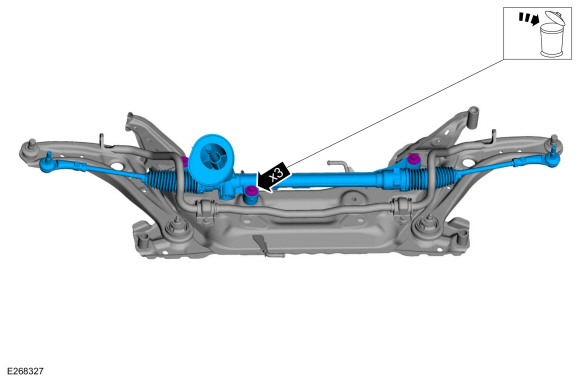

Remove the and discard steering gear bolts and remove the steering gear.
Torque: 66 lb.ft (90 Nm)
 |
Installation
-
To install, reverse the removal procedure.
