Ford Fiesta: Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Engine Component View. Description and Operation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Engine Component View. Description and Operation

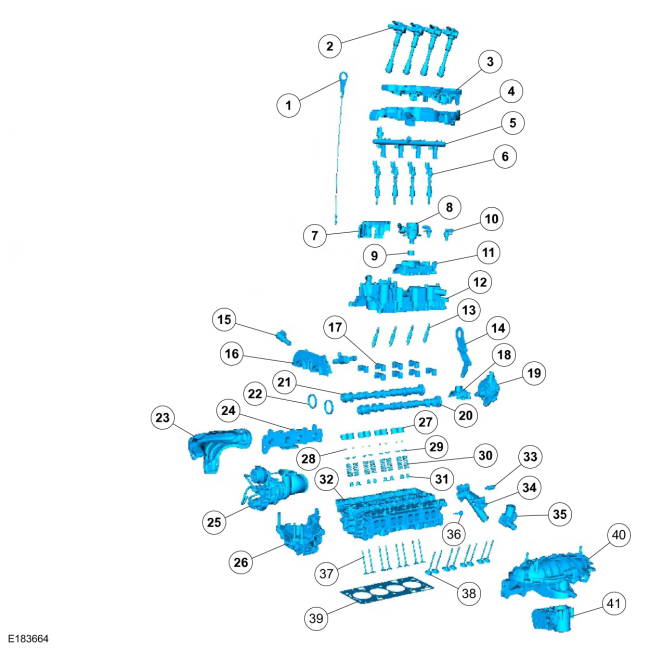

Upper Engine

Item	Part Number	Description
1	67506750	Oil indicator
2	12A36612A366	Ignition coil on plug (4 required)
3	1225712257	Ignition coil mounting bracket
4	9U5509U550	Ignition coil mounting bracket insulator
5	9H4879H487	Fuel rail
6	9F5939F593	Fuel injector (4 required)
7	9A4139A413	Fuel injection pump cover
8	9D3769D376	Fuel injection pump
9	6C2876C287	Fuel injection pump tappet
10	12K07312K073	Camshaft Position (CMP) sensor (2 required)
11	93469346	Fuel injection pump mounting bracket
12	6M2936M293	Cover assembly
13	1240512405	Spark plug (4 required)
14	17K07817K078	Lift eye bracket
15	6L7136L713	Variable valve timing (VVT) unit oil control solenoid
16	—	Variable valve timing (VVT) unit bridge (part of 6049)
17	—	Camshaft cap (8 required) (part of 6049)
18	—	Vacuum pump mounting bracket (part of 6069)
19	2A4512A451	Vacuum pump
20	6A2706A270	Intake camshaft
21	6A2726A272	Exhaust camshaft
22	6K2926K292	Camshaft oil seals
23	9N4549N454	Turbocharger heat shield
24	94319431	Exhaust manifold
25	6K6826K682	Turbocharger
26	6F0016F001	Engine mounting bracket assembly
27	65006500	Valve tappet (16 required)
28	65186518	Valve collet (16 required)
29	65146514	Valve spring retainer (16 required)
30	65136513	Valve spring (16 required)
31	65716571	Valve seal (16 required)
32	60496049	Cylinder head
33	12A64812A648	Engine Coolant Temperature (ECT) sensor
34	8K5568K556	Coolant outlet
35	1849518495	Bitron valve
36	6G0046G004	Cylinder Head Temperature (CHT) sensor
37	65056505	Exhaust valve (8 required)
38	65076507	Intake valve (8 required)
39	60516051	Cylinder head gasket
40	94249424	Intake manifold
41	9F9919F991	Throttle body

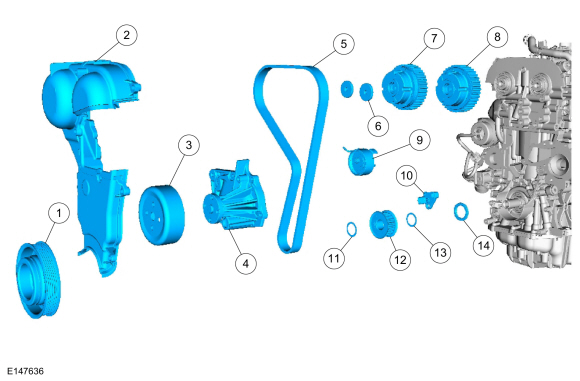

Front Engine

Item	Part Number	Description
1	6B3196B319	Crankshaft pulley
2	6P0736P073	Timing belt cover
3	85098509	Coolant pump pulley
4	85018501	Coolant pump
5	6K2886K288	Timing belt
6	W710954W710954	Camshaft phaser and sprocket plug and seal (2 required)
7	6C5246C524	Exhaust VVT unit
8	6C5246C524	Intake VVT unit
9	6K2546K254	Timing belt tensioner
10	6C3156C315	Crankshaft Position (CKP) sensor
11	—	Diamond washer (part of 6306)
12	63066306	Crankshaft sprocket gear
13	—	Diamond washer (part of 6306)
14	67006700	Crankshaft oil seal

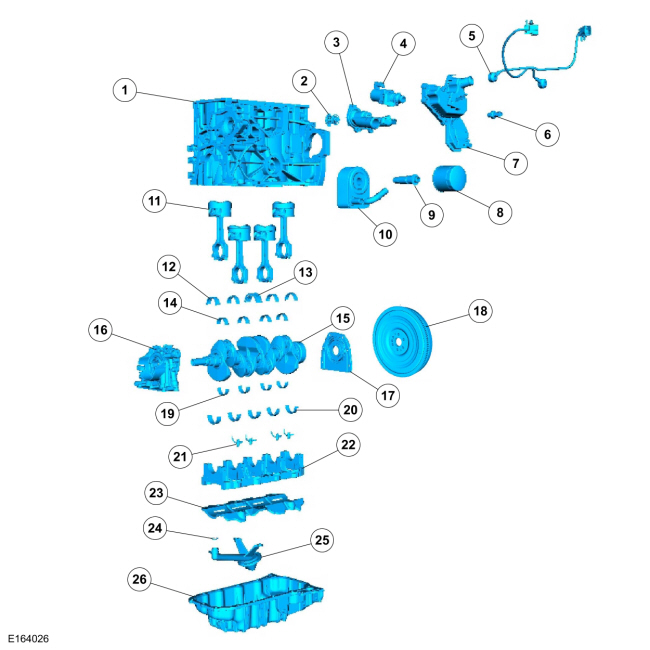

Lower Engine

Item	Part Number	Description
1	60106010	Engine block
2	—	Thermostat (part of 9K478)
3	9K4789K478	Thermostat housing
4	8C6058C605	Bitron valve
5	12A69912A699	Knock Sensor (KS) (2 required)
6	92789278	Engine Oil Pressure (EOP) sensor
7	6A7856A785	Crankcase vent oil separator
8	67146714	Oil filter
9	6L6266L626	Oil cooler mounting bolt
10	6B8566B856	Oil cooler
11	61006100	Piston and connecting rod (4 required)
12	63336333	Upper main bearing (4 required)
13	63376337	Upper main bearing
14	62116211	Upper connecting rod bearing (4 required)
15	63036303	Crankshaft
16	66006600	Oil pump
17	6K3016K301	Crankshaft rear oil seal with retainer plate
18	63756375	Flywheel
19	62116211	Lower connecting rod bearing (4 required)
20	6A3386A338	Lower main bearing (4 required)
21	6K8686K868	Piston oil cool valve
22	63346334	Main bearing beam
23	6B6606B660	Windage tray
24	66256625	Oil pump screen and pickup tube O-ring seal
25	6K6216K621	Oil pump screen and pickup tube
26	66756675	Oil pan
