Ford Fiesta: Steering Wheel and Column Electrical Components / Steering Wheel Multifunction Switch. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Steering System / Steering Wheel and Column Electrical Components / Steering Wheel Multifunction Switch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Driver Airbag (501-20B Supplemental Restraint System, Removal and Installation).

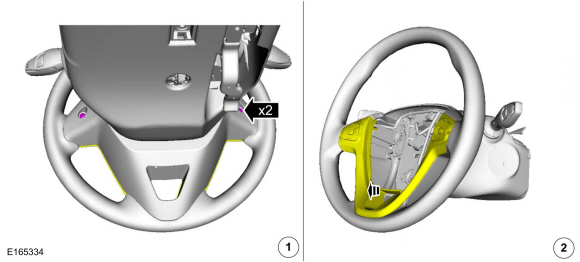

    1. Remove the screws.
    1. Using a suitable flat-bladed tool, remove the steering wheel bezel.

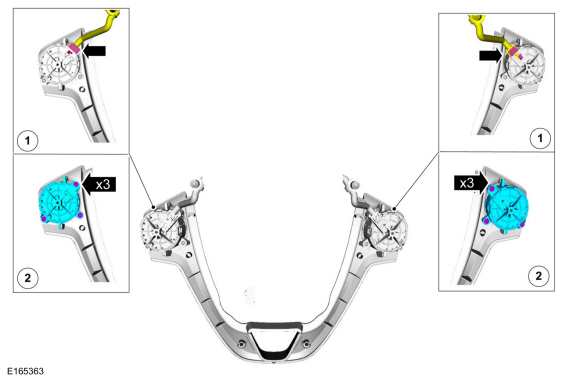

    1. Disconnect the electrical connectors.
    1. Remove the screws and the steering wheel multifunction switches.

Installation

  1. To install, reverse the removal procedure.
