Ford Fiesta: Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Heated Oxygen Sensor (HO2S). Removal and Installation
Ford Fiesta 2014 - 2019 Service Manual / Engine / Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Heated Oxygen Sensor (HO2S). Removal and Installation
Special Tool(s) / General Equipment
 |
303-476
(T94P-9472-A)
Socket, Exhaust Gas Oxygen Sensor TKIT-1994-LM/M TKIT-1994-F TKIT-1994-FLM/FM |
Materials
| Name | Specification |
|---|---|
| Motorcraft® High Temperature Nickel Anti-Seize Lubricant XL-2 |
- |
| Motorcraft® Penetrating and Lock Lubricant XL-1 |
- |
Removal
-
Remove the air cleaner outlet pipe.
Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).
-

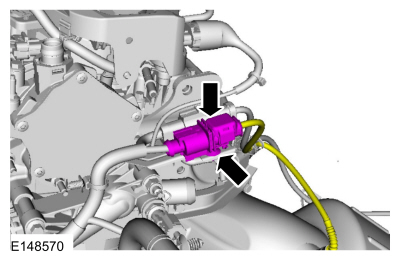

Disconnect the HO2S electrical connector and detach the wiring harness retainer.
 |
-

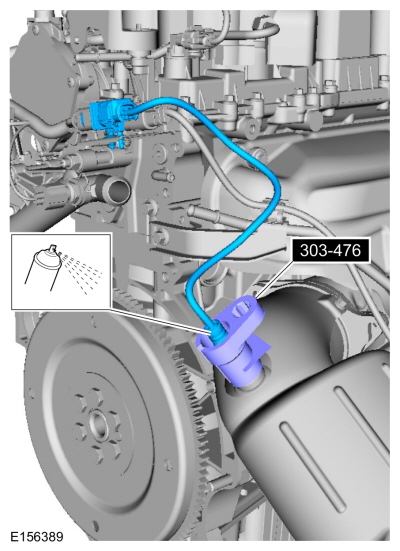

Remove the HO2S .
Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® Penetrating and Lock Lubricant / XL-1
 |
Installation
-
Calculate the correct torque wrench setting for the
following torque. Refer to Torque Wrench Adapter Formula in the Apex.

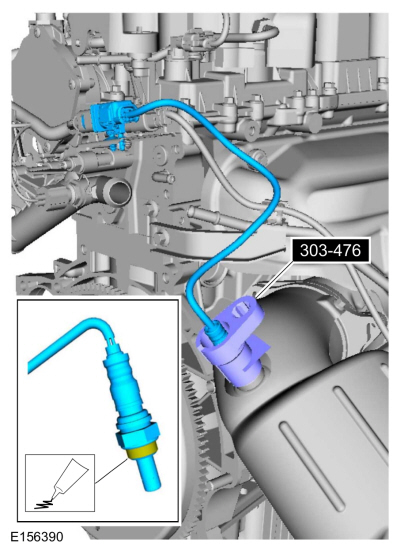

Install the HO2S .
Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2
Torque: 35 lb.ft (48 Nm)
 |
-
Connect the HO2S electrical connector and attach the wiring harness retainer.
|
-
Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and
Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and
Installation).
Variable Camshaft Timing (VCT) Oil Control Solenoid. Removal and Installation
Materials
Name
Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor OilXO-5W20-Q1SP
WSS-M2C945-B1
Removal
Remove the engine appearance cover...
Catalyst Monitor Sensor. Removal and Installation
Materials
Name
Specification
Motorcraft® High Temperature Nickel Anti-Seize LubricantXL-2
-
Motorcraft® Penetrating and Lock LubricantXL-1
-
Removal
With the vehicle in NEUTRAL, position it on a hoist...
