Ford Fiesta: Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Catalyst Monitor Sensor. Removal and Installation

Materials

Name Specification
Motorcraft® High Temperature Nickel Anti-Seize Lubricant
XL-2
-

Motorcraft® Penetrating and Lock Lubricant
XL-1
-


Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Remove the air cleaner outlet pipe.
    Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

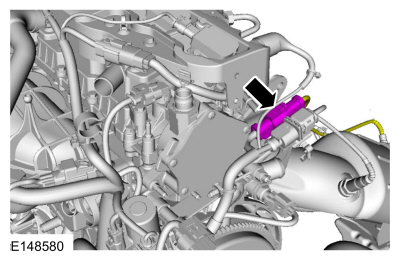

  1. Disconnect the catalyst monitor sensor electrical connector.

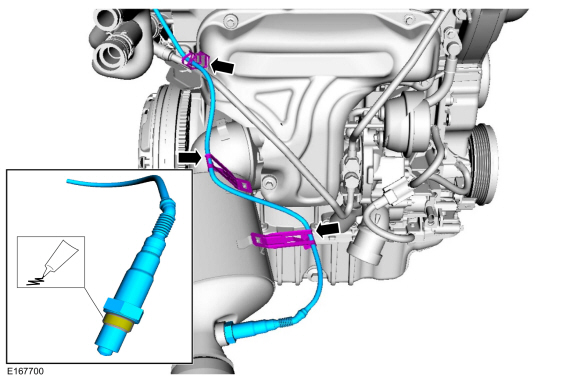

  1. Detach the wiring harness retainers and remove the catalyst monitor sensor.

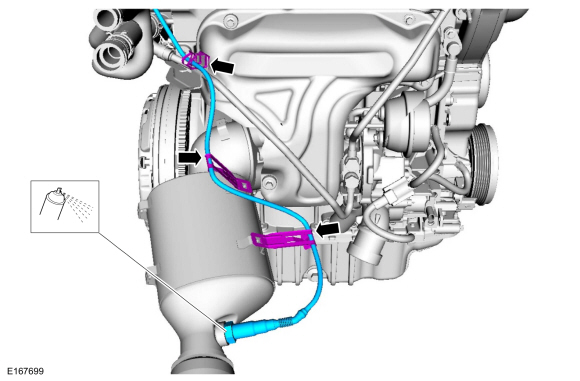

    Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

Installation

  1. NOTE: The correct torque wrench setting must be calculated when using a commercially available exhaust gas sensor socket to install the catalyst monitor sensor. Refer to the Torque Wrench Adapter Formulas in the Appendix.

    • Lubricate the O-ring.
      Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2
    • Install the catalyst monitor sensor and attach the wiring harness retainers.
      Torque: 35 lb.ft (48 Nm)
  1. Connect the catalyst monitor sensor electrical connector.
  1. Install the air cleaner outlet pipe.
    Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).
