Ford Fiesta: Clutch Controls - 5-Speed Manual Transmission – B5/IB5/6-Speed Manual Transmission – B6 / Clutch Controls. Description and Operation

Ford Fiesta 2014 - 2019 Service Manual / Manual Transmission, Clutch, Transfer Case and Power Transfer Unit / Clutch Controls - 5-Speed Manual Transmission – B5/IB5/6-Speed Manual Transmission – B6 / Clutch Controls. Description and Operation

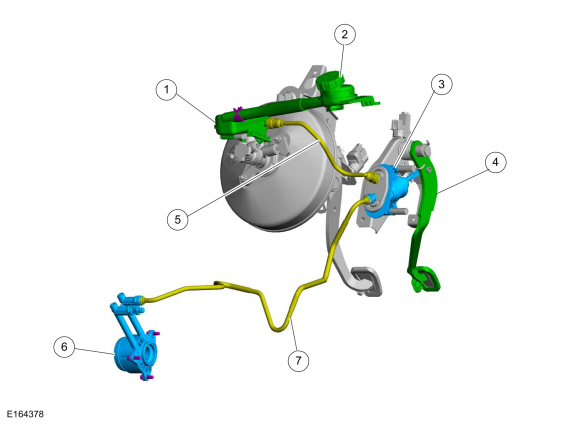

Item	Part Number	Description
1	21402140	Brake fluid master cylinder
2	2K4782K478	Brake fluid filling reservoir
3	7A5437A543	Clutch master cylinder
4	75197519	Clutch pedal
5	7K5027K502	Clutch reservoir hydraulic tube
6	7A5647A564	Clutch slave cylinder
7	7A5127A512	Clutch hydraulic tube

Clutch Controls - System Operation and Component Description. Description and Operation

System Operation Hydraulic Clutch Actuation System The design of the clutch actuation system is very similar to that of a hydraulic brake system...

Clutch Controls. Diagnosis and Testing

Inspection and Verification NOTICE: If transmission noise is reported, first check the transmission fluid level. The vehicle should not be driven if the transmission fluid level is low...
