Ford Fiesta: Manual Transmission - 6-Speed Manual Transmission – B6 / Roll Restrictor RH. Removal and Installation
Ford Fiesta 2014 - 2019 Service Manual / Manual Transmission, Clutch, Transfer Case and Power Transfer Unit / Manual Transmission - 6-Speed Manual Transmission – B6 / Roll Restrictor RH. Removal and Installation
Removal
-
With the vehicle in N , position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-

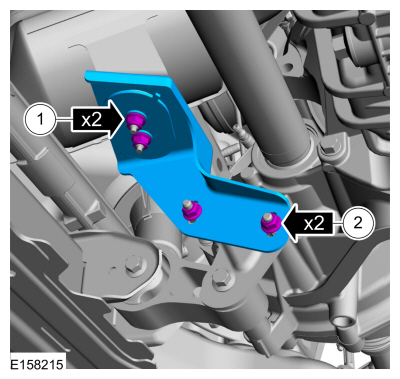

Remove the nuts and the bracket.
 |
-
NOTE: Note the different lengths of the bolts.

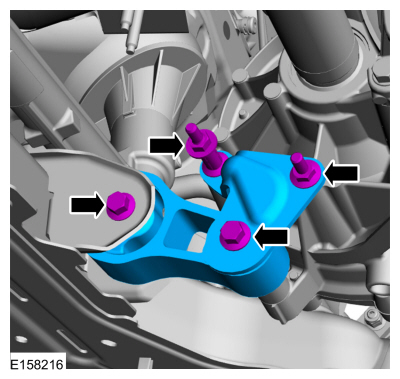

Remove the roll restrictor bolts and the roll restrictor.
 |
Installation
-
Install the roll restrictor and the roll restrictor bolts.
Torque: 52 lb.ft (70 Nm)
|
-
-
Install the bracket and the upper nuts.
Torque: 18 lb.ft (25 Nm)
-
Install the lower nuts.
Torque: 18 lb.ft (25 Nm)
-
Install the bracket and the upper nuts.
|
