Ford Fiesta: Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Exhaust Manifold. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Exhaust Manifold. Removal and Installation

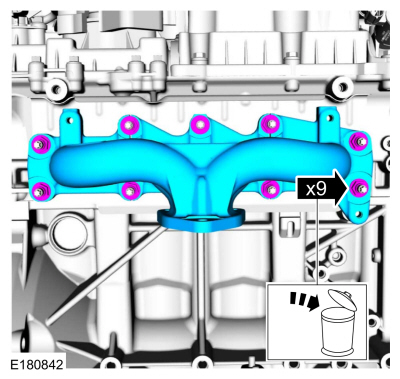

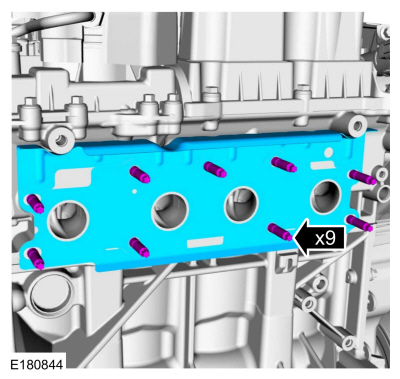

Removal

Refer to: Turbocharger (303-04C Fuel Charging and Controls - Turbocharger - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

Refer to: Exhaust Manifold Cleaning and Inspection (303-00 Engine System - General Information, General Procedures).

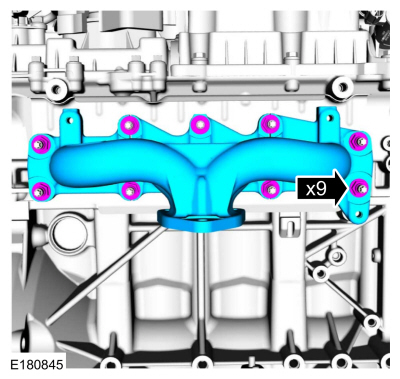

Installation

Torque: 89 lb.in (10 Nm)

- Torque: 15 lb.ft (21 Nm)
- Tighten the fasteners to specification a second time.
  Torque: 15 lb.ft (21 Nm)

Refer to: Turbocharger (303-04C Fuel Charging and Controls - Turbocharger - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).
