Ford Fiesta: Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Clutch Pedal Position (CPP) Switch. Removal and Installation
Removal
Top of travel switch
-

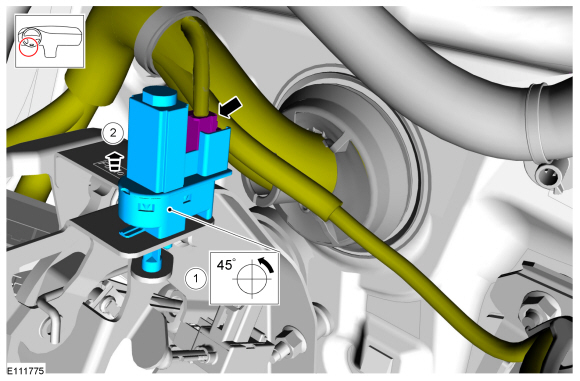

Disconnect the electrical connector and remove CPP switch from the bracket.
Bottom of travel switch
-
Disconnect the electrical connector and remove CPP switch from the bracket.
Installation
-
To install, reverse the removal procedure.
Materials
Name
Specification
Motorcraft® Orange Prediluted Antifreeze/CoolantVC-3DIL-B
WSS-M97B44-D2
