Ford Fiesta: Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Flywheel. Removal and Installation

Special Tool(s) / General Equipment

303-103 (T74P-6375-A)
Holding Tool, Flywheel
T74P-77000-A
TKIT-2009TC-F

Removal

  1. Remove the clutch disc and pressure plate.
    Refer to: Clutch Disc and Pressure Plate (308-01B Clutch - 6-Speed Manual Transmission – B6, Removal and Installation).
  1. Inspect the flywheel.
    Refer to: Flywheel Inspection - 1.6L EcoBoost (132kW/180PS) – Sigma (303-00 Engine System - General Information, General Procedures).

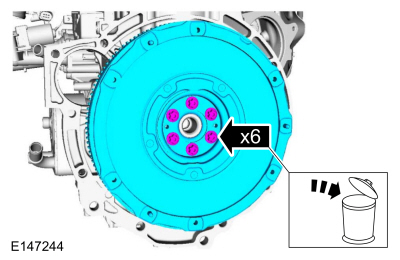

    • Remove the bolts and the flywheel.
    • Discard the bolts.

Installation

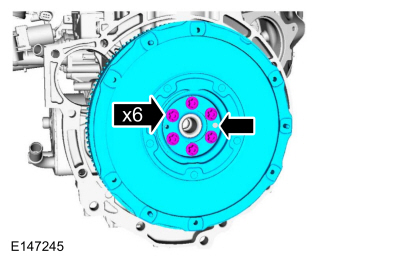

  1. Install the flywheel and the bolts finger-tight.

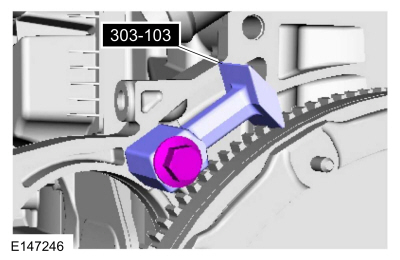

  1. Install Special Service Tool: 303-103 (T74P-6375-A)  Holding Tool, Flywheel.

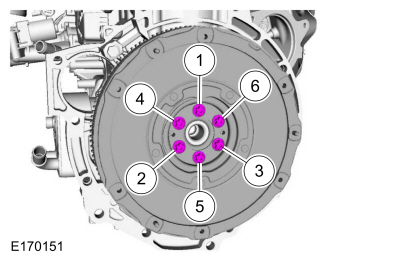

  1. Tighten the flywheel bolts in sequence shown.
    Torque:
      Stage 1:  133 lb.in (15 Nm)
      Stage 2:  18 lb.ft (25 Nm)
      Stage 3:  22 lb.ft (30 Nm)
      Stage 4:  90°
  1. Remove Special Service Tool: 303-103 (T74P-6375-A)  Holding Tool, Flywheel.
  1. Install the clutch disc and pressure plate.
    Refer to: Clutch Disc and Pressure Plate (308-01B Clutch - 6-Speed Manual Transmission – B6, Removal and Installation).
  1. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
