Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Information and Entertainment System. Diagnosis and Testing

Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Information and Entertainment System. Diagnosis and Testing

DTC Chart: ACM

DTC	Description	Action
B1A01:01	Speaker #1: General Electrical Failure	For a LHF door speaker concern, GO to Pinpoint Test H For a LHF door tweeter speaker concern, GO to Pinpoint Test I
B1A01:11	Speaker #1: Circuit Short To Ground	For a LHF door speaker concern, GO to Pinpoint Test H For a LHF door tweeter speaker concern, GO to Pinpoint Test I
B1A01:12	Speaker #1: Circuit Short To Battery	For a LHF door speaker concern, GO to Pinpoint Test H For a LHF door tweeter speaker concern, GO to Pinpoint Test I
B1A01:13	Speaker #1: Circuit Open	GO to Pinpoint Test H
B1A02:01	Speaker #2: General Electrical Failure	For a RHF door speaker concern, GO to Pinpoint Test J For a RHF door tweeter speaker concern, GO to Pinpoint Test K
B1A02:11	Speaker #2: Circuit Short To Ground	For a RHF door speaker concern, GO to Pinpoint Test J For a RHF door tweeter speaker concern, GO to Pinpoint Test K
B1A02:12	Speaker #2: Circuit Short To Battery	For a RHF door speaker concern, GO to Pinpoint Test J For a RHF door tweeter speaker concern, GO to Pinpoint Test K
B1A02:13	Speaker #2: Circuit Open	GO to Pinpoint Test J
B1A03:01	Speaker #3: General Electrical Failure	GO to Pinpoint Test L
B1A03:11	Speaker #3: Circuit Short To Ground	GO to Pinpoint Test L
B1A03:12	Speaker #3: Circuit Short To Battery	GO to Pinpoint Test L
B1A03:13	Speaker #3: Circuit Open	GO to Pinpoint Test L
B1A04:01	Speaker #4: General Electrical Failure	GO to Pinpoint Test M
B1A04:11	Speaker #4: Circuit Short To Ground	GO to Pinpoint Test M
B1A04:12	Speaker #4: Circuit Short To Battery	GO to Pinpoint Test M
B1A04:13	Speaker #4: Circuit Open	GO to Pinpoint Test M
B1A56:21	Antenna: Signal Amplitude < Minimum	If DTC B1A56:21 sets after running the bezel diagnostic tests, DISREGARD this DTC . This test is used for end of line or repair bay testing at the vehicle assembly plant. Each plant has its own assigned frequency and signal strength requirements. The running and passing of this test depends on local radio stations. If no local station is broadcasting on the required frequency, the test will fail.
B1A89:11	Satellite Antenna: Circuit Short To Ground	For a satellite radio concern, GO to Pinpoint Test B For a SIRIUS Travel Link concern, GO to Pinpoint Test C For a navigation concern (if equipped), GO to Pinpoint Test Y For a compass concern, GO to Pinpoint Test Z
B1A89:13	Satellite Antenna: Circuit Open	For a satellite radio concern, GO to Pinpoint Test B For a SIRIUS Travel Link concern, GO to Pinpoint Test C For a navigation concern (if equipped), GO to Pinpoint Test Y For a compass concern, GO to Pinpoint Test Z
B1D19:49	Compact Disc Unit: Internal Electronic Failure	GO to Pinpoint Test V
B1D19:4B	Compact Disc Unit: Over Temperature	GO to Pinpoint Test V
U0155:00	Lost Communication With IPC Control Module: No Sub Type Information	GO to Pinpoint Test AD
U0253:00	Lost Communication With Accessory Protocol Interface Module: No Sub Type Information	GO to Pinpoint Test AH
U0256:00	Lost Communication With Front Controls Interface Module "A": No Sub Type Information	GO to Pinpoint Test AI
U201A:51	Control Module Main Calibration Data: Not Programmed	This DTC sets due to an incorrect or incomplete ACM configuration. Using a diagnostic scan tool, PERFORM the ACM programming procedure using as-built data. For information on as-built data, REFER to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation). See As-Built Data.
U2100:00	Initial Configuration Not Complete: No Sub Type Information	This DTC sets due to an incorrect or incomplete ACM configuration. Using a diagnostic scan tool, PERFORM the ACM programming procedure using as-built data. For information on as-built data, REFER to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation). See As-Built Data.
U2101:00	Control Module Configuration Incompatible: No Sub Type Information	This DTC sets due to an incorrect or incomplete ACM configuration. Using a diagnostic scan tool, PERFORM the ACM programming procedure using as-built data. For information on as-built data, REFER to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation). See As-Built Data.
U3000:41	Control Module: General Checksum Failure	CLEAR the DTC . WAIT at least 10 seconds. REPEAT the self-test. If DTC U3000:41 is retrieved again, INSTALL a new ACM . REFER to: Audio Front Control Module (ACM) (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).
U3000:42	Control Module: General Memory Failure	CLEAR the DTC . WAIT at least 10 seconds. REPEAT the self-test. If DTC U3000:42 is retrieved again, INSTALL a new ACM . REFER to: Audio Front Control Module (ACM) (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).
U3000:96	Control Module: Component Internal Failure	CLEAR the DTC . WAIT at least 10 seconds. REPEAT the self-test. If DTC U3000:96 is retrieved again, INSTALL a new ACM . REFER to: Audio Front Control Module (ACM) (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).
U3003:16	Battery Voltage: Circuit Voltage Below Threshold	GO to Pinpoint Test AJ
U3003:17	Battery Voltage: Circuit Voltage Above Threshold	GO to Pinpoint Test AK

DTC Chart: APIM

DTC

Description

Action

B108E:01

Display: General Electrical Failure

GO to Pinpoint Test W

B108E:12

Display: Circuit Short To Battery

GO to Pinpoint Test W

B108E:63

Display: Circuit / Component Protection Time-Out

GO to Pinpoint Test W

B119F:01

GPS Antenna: General Electrical Failure

For a navigation concern (if equipped), GO to Pinpoint Test Y
For a compass concern, GO to Pinpoint Test Z

B119F:13

GPS Antenna: Circuit Open

For a navigation concern (if equipped), GO to Pinpoint Test Y
For a compass concern, GO to Pinpoint Test Z

B11BA:1C

Steering Wheel Audio Switch Pack: Circuit Voltage Out of Range

GO to Pinpoint Test U

B11BA:63

Steering Wheel Audio Switch Pack: Circuit / Component Protection Time-Out

GO to Pinpoint Test U

B1252:11

USB Port: Circuit Short To Ground

GO to Pinpoint Test Q

B1252:13

USB Port: Circuit Open

GO to Pinpoint Test Q

B12B8:11

USB Port #2: Circuit Short To Ground

NOTE: This DTC refers to USB port #2 on the APIM itself, which is not used.

INSPECT the APIM USB port #2 for damage and REMOVE any debris.
CLEAR the Diagnostic Trouble Codes (DTCs).
WAIT at least 10 seconds.
REPEAT the APIM self-test.

If DTC B12B8:11 is retrieved again, PERFORM the APIM Hardware Test.

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

B14FD:11

External Media Control Connectivity: Circuit Short To Ground

GO to Pinpoint Test Q

B1D79:11

Microphone Input: Circuit Short To Ground

GO to Pinpoint Test P

B1D79:12

Microphone Input: Circuit Short To Battery

GO to Pinpoint Test P

B1D79:13

Microphone Input: Circuit Open

GO to Pinpoint Test P

C1001:01

Vision System Camera: General Electrical Failure

REFER to: Parking Aid (413-13B Parking Aid - Vehicles With: Parking Aid Camera, Diagnosis and Testing).
See The Rear Video Is Inoperative.

U0121:00

Lost Communication With Anti-Lock Brake System (ABS) Control Module: No Sub Type Information

GO to Pinpoint Test AA

U0140:00

Lost Communication With Body Control Module: No Sub Type Information

GO to Pinpoint Test AB

U0151:00

Lost Communication With Restraints Control Module: No Sub Type Information

GO to Pinpoint Test AC

U0155:00

Lost Communication With Instrument Panel Cluster IPC Control Module: No Sub Type Information

GO to Pinpoint Test AD

U0159:00

Lost Communication With Parking Assist Control Module "A": No Sub Type Information

GO to Pinpoint Test AF

U0162:00

Lost Communication With Navigation Display Module: No Sub Type Information

GO to Pinpoint Test W

U0184:00

Lost Communication With Radio: No Sub Type Information

GO to Pinpoint Test AG

U0256:00

Lost Communication With Front Controls Interface Module "A": No Sub Type Information

GO to Pinpoint Test AI

U0415:00

Invalid Data Received From Anti-Lock Brake System (ABS) Control Module: No Sub Type Information

RETRIEVE and FOLLOW Diagnostic Trouble Codes (DTCs) present in the ABS module.
REFER to: Anti-Lock Brake System (ABS) and Stability Control (206-09 Anti-Lock Brake System (ABS) and Stability Control, Diagnosis and Testing).
• If no Diagnostic Trouble Codes (DTCs) are present in the ABS module, DIAGNOSE the observable symptom.

U0422:00

Invalid Data Received From Body Control Module: No Sub Type Information

RETRIEVE and FOLLOW Diagnostic Trouble Codes (DTCs) present in the BCM .
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Diagnosis and Testing).
• If no Diagnostic Trouble Codes (DTCs) are present in the BCM , DIAGNOSE the observable symptom.

U0423:00

Invalid Data Received From Instrument Panel Cluster Control Module: No Sub Type Information

RETRIEVE and FOLLOW Diagnostic Trouble Codes (DTCs) present in the IPC .
REFER to: Instrumentation, Message Center and Warning Chimes (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing).
• If no Diagnostic Trouble Codes (DTCs) are present in the IPC , DIAGNOSE the observable symptom.

U0452:00

Invalid Data Received From Restraints Control Module: No Sub Type Information

RETRIEVE and FOLLOW Diagnostic Trouble Codes (DTCs) present in the RCM .
REFER to: Airbag Supplemental Restraint System (SRS) (501-20 Supplemental Restraint System) .
• If no Diagnostic Trouble Codes (DTCs) are present in the RCM , DIAGNOSE the observable symptom.

U1A00:87

Private Communication Network: Missing Message

For a satellite radio concern, GO to Pinpoint Test B
For a SIRIUS Travel Link concern, GO to Pinpoint Test C
For a navigation concern (if equipped), GO to Pinpoint Test Y
For a compass concern, GO to Pinpoint Test Z

U2017:45

Control Module Software #2: Program Memory Failure

CLEAR all Continuous Memory Diagnostic Trouble Codes (CMDTCs).
WAIT at least 10 seconds.
RETRIEVE all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

If DTC U2017:45 is retrieved again, PERFORM the APIM Hardware Test.

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

U2017:51

Control Module Software #2: Not Programmed

This DTC sets due to an incorrect or incomplete APIM programming/provisioning. Using a diagnostic scan tool, PERFORM the APIM programming procedure.
REFER to: SYNC Module [APIM] Programming (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, General Procedures).

U2017:52

Control Module Software #2: Not Activated

U2017:54

Control Module Software #2: Missing Calibration

U2100:00

Initial Configuration Not Complete: No Sub Type Information

U2101:00

Control Module Configuration Incompatible: No Sub Type Information

U3000:04

Control Module: System Internal Failure

CLEAR all Continuous Memory Diagnostic Trouble Codes (CMDTCs).
WAIT at least 10 seconds.
RETRIEVE all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

If DTC U3000:04 is retrieved again, PERFORM the APIM Hardware Test.

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

U3000:09

Control Module: Component Failure

CLEAR all Continuous Memory Diagnostic Trouble Codes (CMDTCs).
WAIT at least 10 seconds.
RETRIEVE all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

If DTC U3000:09 is retrieved again, PERFORM the APIM Hardware Test.

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

U3000:41

Control Module: General Checksum Failure

CLEAR the Diagnostic Trouble Codes (DTCs).
WAIT at least 10 seconds.
REPEAT the APIM self-test.

If DTC U3000:41 is retrieved again, PERFORM the APIM Hardware Test.

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

U3000:88

Control Module: Bus Off

NOTE: The module was unable to communicate on the network at a point in time. The fault is not currently present since the module had to communicate with the diagnostic scan tool to report this DTC .

To avoid repeat network concerns:

INSPECT for damaged or corroded wiring at the APIM . Refer to Wiring Diagrams Cell 14 for schematic and connector information.
CLEAR all Continuous Memory Diagnostic Trouble Codes (CMDTCs).
WAIT at least 10 seconds.
REPEAT the network test with the diagnostic scan tool.

U3003:16

Battery Voltage: Circuit Voltage Below Threshold

GO to Pinpoint Test AJ

U3003:17

Battery Voltage: Circuit Voltage Above Threshold

GO to Pinpoint Test AK

DTC Chart: FCIM

DTC	Description	Action
U0009:88 (Sony® FCIM only)	High Speed CAN Communication Bus (-) Shorted to Bus (+): Bus off	The module was unable to communicate on the network at a point in time. The fault is not currently present (the module had to communicate with the diagnostic scan tool to report this DTC . VERIFY the integrity of the connectors and wiring.
U0155:00 (Sony® FCIM only)	Lost Communication With Instrument Panel Cluster (IPC) Control Module: No Sub Type Information	GO to Pinpoint Test AD
U0155:87 (Non-branded FCIM only)	Lost Communication With Instrument Panel Cluster (IPC) Control Module: Missing Message	GO to Pinpoint Test AE
U0423:00 (Sony® FCIM only)	Invalid Data Received From Instrument Panel Cluster Control Module: No Sub Type Information	RETRIEVE and FOLLOW Diagnostic Trouble Codes (DTCs) present in the IPC . REFER to: Instrumentation, Message Center and Warning Chimes (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing). • If no Diagnostic Trouble Codes (DTCs) are present in the IPC , DIAGNOSE the observable symptom.
U2013:63	Switch Pack: Circuit/Component Protection Time-Out	CLEAR the Diagnostic Trouble Codes (DTCs). WAIT at least 10 seconds. REPEAT the self-test. If DTC U2013:63 is retrieved again, INSTALL a new FCIM . REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).
U201A:51 (Non-branded FCIM only)	Control Module Main Calibration Data: Not Programmed	This DTC sets due to an incorrect or incomplete FCIM configuration. Using a diagnostic scan tool, PERFORM the FCIM programming procedure using as-built data. For information on as-built data, REFER to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation). See As-Built Data.
U3000:41	Control Module: General Checksum Failure	CLEAR the Diagnostic Trouble Codes (DTCs). WAIT at least 10 seconds. REPEAT the self-test. If DTC U3000:41 is retrieved again, INSTALL a new FCIM . REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).
U3000:42	Control Module: General Memory Failure	CLEAR the Diagnostic Trouble Codes (DTCs). WAIT at least 10 seconds. REPEAT the self-test. If DTC U3000:42 is retrieved again, INSTALL a new FCIM . REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).
U3003:16	Battery Voltage: Circuit Voltage Below Threshold	GO to Pinpoint Test AJ
U3003:17	Battery Voltage: Circuit Voltage Above Threshold	GO to Pinpoint Test AK

Symptom Charts

Symptom Chart: Display

Condition	Possible Sources	Actions
Navigation is inoperative or does not operate correctly - if equipped	Refer to the Pinpoint Test	GO to Pinpoint Test Y
SIRIUS Travel Link is inoperative or does not operate correctly - if equipped with navigation	Refer to the Pinpoint Test	GO to Pinpoint Test C
The compass is inoperative or does not operate correctly	Refer to the Pinpoint Test	GO to Pinpoint Test Z
The FDIM is blank or black	Refer to the Pinpoint Test	GO to Pinpoint Test W
The image displayed on the FDIM is incorrect, the image color is incorrect, or the image is distorted, flickering, or unclear	Refer to the Pinpoint Test	GO to Pinpoint Test W
The image on the FDIM is locked or frozen	Refer to the Pinpoint Test	GO to Pinpoint Test W
The FDIM changes brightness	Refer to the Pinpoint Test	GO to Pinpoint Test X
The FDIM is not responsive to touch	Refer to the Pinpoint Test	GO to Pinpoint Test W
The FDIM is slow to respond to touch	Refer to the Pinpoint Test	GO to Pinpoint Test W

Symptom Chart: Media/Phone

Condition	Possible Sources	Actions
All APIM mono outputs are inoperative or do not operate correctly REFER to: Information and Entertainment System - System Operation and Component Description (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Description and Operation). See APIM for a list of mono outputs.	Refer to the Pinpoint Test	GO to Pinpoint Test N
All APIM stereo outputs are inoperative or do not operate correctly REFER to: Information and Entertainment System - System Operation and Component Description (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Description and Operation). See APIM for a list of stereo outputs.	Refer to the Pinpoint Test	GO to Pinpoint Test O
Bluetooth is inoperative or does not operate correctly	Refer to the Pinpoint Test	GO to Pinpoint Test S
SYNC® AppLink™ is inoperative or does not operate correctly	Refer to the Pinpoint Test	INSTRUCT the customer to review the mobile device platform, application, and application version compatibility list. REFER to: owner.ford.com/how-tos/sync-technology/all/phone-setup/how-your-device-works-with-sync.html or es.owner.ford.com/how-tos/sync-technology/all/phone-setup/how-your-device-works-with-sync.html It is normal operation for incompatible mobile device platforms, applications, and application versions to be unavailable through SYNC® AppLink™. If the mobile device platform, application, and application version are compatible, and the device is connected through Bluetooth only, GO to Pinpoint Test S If the mobile device platform, application, and application version are compatible, and the device is connected through Bluetooth and the USB port, GO to Pinpoint Test Q
The APIM does not acknowledge voice commands and outgoing audio is not transmitted during a phone call	Refer to the Pinpoint Test	GO to Pinpoint Test P
The CD player is inoperative or does not operate correctly	Refer to the Pinpoint Test	GO to Pinpoint Test V
The USB hub is inoperative or does not operate correctly	Refer to the Pinpoint Test	GO to Pinpoint Test Q
The 911 Assist not operational message is displayed	Refer to the Pinpoint Test	GO to Pinpoint Test R
Wi-Fi is inoperative or does not operate correctly	Refer to the Owner's Literature	REFER to: Information and Entertainment System (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Diagnosis and Testing). See the System Diagram, SYNC® System description, and APIM component description.
Wi-Fi is inoperative or does not operate correctly	Refer to the Owner's Literature	ADVISE the customer to refer to “WiFi Issues” in the SYNC 3 Troubleshooting section of the SYNC® 3 Supplement Owner's Literature.

Symptom Chart: Radio

Condition	Possible Sources	Actions
The AM radio is inoperative or does not operate correctly	Refer to the Pinpoint Test	GO to Pinpoint Test A
The FM radio is inoperative or does not operate correctly	Refer to the Pinpoint Test	GO to Pinpoint Test A
The HD Radio® is inoperative or does not operate correctly - if equipped	Refer to the Owner's Literature	ADVISE the customer to refer to “HD Radio Reception and Station Troubleshooting” in the Owner's Literature.
The satellite radio is inoperative or does not operate correctly	Refer to the Pinpoint Test	GO to Pinpoint Test B

Symptom Chart: Sound Quality

Condition	Possible Sources	Actions
A loud popping sound is heard from the speakers when cycling the ignition	Refer to the Pinpoint Test	GO to Pinpoint Test D
No sound from all speakers	Refer to the Pinpoint Test	GO to Pinpoint Test E
Poor sound quality or distorted sound from one or more speakers (not all speakers)	Refer to the Pinpoint Test	GO to Pinpoint Test F
The speed compensated volume does not operate correctly	Refer to the Pinpoint Test	GO to Pinpoint Test G
The LHF door speaker is inoperative	Refer to the Pinpoint Test	GO to Pinpoint Test H
The LHF door tweeter speaker is inoperative	Refer to the Pinpoint Test	GO to Pinpoint Test I
The RHF door speaker is inoperative	Refer to the Pinpoint Test	GO to Pinpoint Test J
The RHF door tweeter speaker is inoperative	Refer to the Pinpoint Test	GO to Pinpoint Test K
The RHR door speaker is inoperative	Refer to the Pinpoint Test	GO to Pinpoint Test L
The LHR door speaker is inoperative	Refer to the Pinpoint Test	GO to Pinpoint Test M

Symptom Chart: Switches

Condition	Possible Sources	Actions
The audio system does not operate correctly from the FCIM	Refer to the Pinpoint Test	GO to Pinpoint Test T
The LH steering wheel switches are inoperative or do not operate correctly	Refer to the Pinpoint Test	GO to Pinpoint Test U

Pinpoint Tests

The AM / FM Radio Is Inoperative Or Does Not Operate Correctly

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Refer to Wiring Diagrams Cell 12 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Information and Entertainment System - System Operation and Component Description (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Description and Operation).
See AM / FM Radio, RDS , Antenna, and Noise Suppression Equipment.

Possible Sources

No channel found in the selected RDS category
Charging system
Wiring, terminals, or connectors
Ignition system
Noise suppression equipment
AM / FM antenna coaxial cable
AM / FM antenna
Mounting surface corrosion
ACM

PINPOINT TEST A: THE AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) RADIO IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY

A1 CHECK THE AUDIO SYSTEM RECEPTION WITH THE ENGINE RUNNING

Operate the audio system in AM / FM mode.

Check the reception with the engine running, and with the engine off.

Is the concern only present with the engine running?

Yes

GO to A2

No	• For a concern with only the AM radio, GO to A4 • For a concern with only the FM radio, or with both the AM and FM radio, GO to A7

A2 CHECK THE GENERATOR

Ignition OFF.

NOTICE: Do not allow the generator B+ cable terminal to make contact with a conductive surface. Failure to follow this instruction may result in personal injury or damage to the vehicle. Disconnect: Generator B+ Cable C102B.

Start the engine.

Operate the audio system in AM / FM mode.

Is the reception OK?

Yes

INSTALL a new generator.
• For vehicles with the 1.0L Fox GTDI (90kW/120PS),
REFER to: Generator - 1.6L Duratec-16V Ti-VCT (88kW/120PS) – Sigma (414-02 Generator and Regulator, Removal and Installation). • For vehicles with the 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma,
REFER to: Generator - 1.6L Duratec-16V Ti-VCT (88kW/120PS) – Sigma (414-02 Generator and Regulator, Removal and Installation). • For vehicles with the 1.6L EcoBoost (132kW/180PS) - Sigma,
REFER to: Generator - 1.6L EcoBoost (132kW/180PS) – Sigma (414-02 Generator and Regulator, Removal and Installation).

GO to A3

A3 CHECK THE IGNITION CIRCUITS

Ignition OFF.

Connect: Generator B+ Cable C102B.

Visually inspect the engine compartment and make sure all ignition coils are correctly and securely connected, and that there are no visible cracks in the coil housings.

Inspect all the wiring harnesses and connectors for damaged insulation and loose or broken conditions.

Are the ignition components OK?

Yes

USE a jumper cable to temporarily ground various parts of the vehicle (examples include: engine, fenders, quarter panels, body sheet metal) to the frame. When the noise is eliminated, PROVIDE a permanent ground where necessary.

No	REPAIR the ignition system as necessary.

A4 CHECK THE AM (AMPLITUDE MODULATION) SIGNAL AMPLIFIER CIRCUIT FOR CORRECT VOLTAGE

Ignition OFF.

Disconnect: Antenna C9021.

Ignition ON.

Operate the audio system in AM mode.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C9021-2 Ground

Is the voltage greater than 11 volts?

Yes

GO to A7

GO to A5

A5 CHECK THE AM (AMPLITUDE MODULATION) SIGNAL AMPLIFIER CIRCUIT FOR A SHORT TO GROUND

Ignition OFF.

Disconnect: ACM C240A.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C9021-2 Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to A6

No	REPAIR the circuit.

A6 CHECK THE AM (AMPLITUDE MODULATION) SIGNAL AMPLIFIER CIRCUIT FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C9021-2 C240A-2

Is the resistance less than 3 ohms?

Yes

GO to A20

No	REPAIR the circuit.

A7 CHECK THE FRONT AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: AM / FM antenna coaxial cable from the ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Disconnect: AM / FM antenna inline coaxial cable connection behind the RH lower cowl trim panel.
REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
AM / FM antenna coaxial cable core at the ACM		Ground
AM / FM antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly.
REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

GO to A8

A8 CHECK THE FRONT AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA COAXIAL CABLE CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

AM / FM antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to A9

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

A9 CHECK THE FRONT AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
AM / FM antenna coaxial cable core at the ACM		Front AM / FM antenna coaxial cable core at the inline connection
AM / FM antenna coaxial cable shield at the ACM		Front AM / FM antenna coaxial cable shield at the inline connection

Are the resistances less than 1 ohm?

Yes

GO to A10

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

A10 CHECK THE FRONT AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
AM / FM antenna coaxial cable core at the ACM		AM / FM antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to A11

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

A11 CHECK THE REAR AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TO VOLTAGE

Connect: AM / FM antenna inline coaxial cable connection behind the RH lower cowl trim panel.

Disconnect: AM / FM antenna coaxial cable from the antenna unit.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
AM / FM antenna coaxial cable core at the ACM		Ground
AM / FM antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

REPAIR or INSTALL a new rear AM / FM antenna coaxial cable.
REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

GO to A12

A12 CHECK THE REAR AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA COAXIAL CABLE CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

AM / FM antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to A13

No	REPAIR or INSTALL a new rear AM / FM antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

A13 CHECK THE REAR AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
AM / FM antenna coaxial cable core at the ACM		AM / FM antenna coaxial cable core at the antenna unit (harness side)
AM / FM antenna coaxial cable shield at the ACM		AM / FM antenna coaxial cable shield at the antenna unit (harness side)

Are the resistances less than 1 ohm?

Yes

GO to A14

No	REPAIR or INSTALL a new rear AM / FM antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

A14 CHECK THE REAR AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
AM / FM antenna coaxial cable core at the ACM		AM / FM antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to A15

No	REPAIR or INSTALL a new rear AM / FM antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

A15 CHECK THE AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA UNIT CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Connect: AM / FM antenna coaxial cable to the antenna unit.

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
AM / FM antenna coaxial cable core at the ACM		Ground
AM / FM antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

INSTALL a new antenna.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

GO to A16

A16 CHECK THE AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA UNIT CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

AM / FM antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to A17

No	INSTALL a new antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

A17 CHECK THE AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA UNIT CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
AM / FM antenna coaxial cable core at the ACM		AM / FM antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to A18

No	INSTALL a new antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

A18 CHECK THE AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA UNIT SHIELD FOR CONTINUITY TO GROUND

Measure:

Positive Lead Measurement / Action Negative Lead

AM / FM antenna coaxial cable shield at the ACM Ground

Is the resistance less than 1 ohm?

Yes

GO to A20

GO to A19

A19 CHECK THE AM (AMPLITUDE MODULATION) / FM (FREQUENCY MODULATION) ANTENNA UNIT SHIELD FOR CONTINUITY TO ANTENNA UNIT BASE

Remove the AM / FM antenna.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Measure:

Positive Lead	Measurement / Action	Negative Lead
AM / FM antenna unit shield at the antenna unit (component side)		AM / FM antenna base (unpainted surface)

Is the resistance less than 1 ohm?

Yes

INSPECT and REPAIR any corrosion on the antenna unit base and/or vehicle mounting surface. REINSTALL the antenna and ensure the proper torque value is achieved.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

No	INSTALL a new AM / FM antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

A20 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The Satellite Radio Is Inoperative Or Does Not Operate Correctly

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC

Description

Fault Trigger Conditions

DTC Type

B1A89:11

Satellite Antenna: Circuit Short To Ground

Set by the ACM when a short to ground is detected for more than 1 second on any of the following:

Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter
Satellite radio/GPS splitter
Rear satellite radio/GPS coaxial cable
Antenna

Continuous and on-demand

B1A89:13

Satellite Antenna: Circuit Open

Set by the ACM when an open is detected for more 250 milliseconds on any of the following:

Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter
Satellite radio/GPS splitter
Rear satellite radio/GPS coaxial cable
Antenna

Continuous and on-demand

Possible Sources

Expired subscription
Obstructions in the satellite antenna's line of sight
Incorrectly matched ESN
Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter
Satellite radio/GPS splitter
Rear satellite radio/GPS coaxial cable
AM / FM /satellite radio/ GPS antenna
ACM

PINPOINT TEST B: THE SATELLITE RADIO IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY

B1 VERIFY THE SUBSCRIPTION STATUS

Operate the audio system in satellite radio mode.

Using the FCIM TUNE UP or TUNE DOWN buttons, verify if channels other than 0 and 184 can be selected.

Can channels other than 0 and 184 be selected?

Yes

GO to B5

No	If the ACM has not been replaced previously, the subscription has expired. INSTRUCT the customer to contact SIRIUS to reactivate the subscription. If the ACM has been replaced previously, GO to B2

B2 VERIFY IF THERE IS A ESN (ELECTRONIC SERIAL NUMBER) /VIN MISMATCH ON THE CUSTOMER’S ACCOUNT

Retrieve the satellite radio ESN by tuning to channel 0.

Contact the SIRIUS Dealer Support Line (888-465-8528).

Inquire if the ESN and VIN on the customer’s SIRIUS file match the ESN and VIN retrieved from the vehicle.

Do the ESN and VIN on the customer’s SIRIUS file match the ESN and VIN retrieved from the vehicle?

Yes

The subscription has expired. INSTRUCT the customer to contact SIRIUS to reactivate the subscription.

GO to B3

B3 RE-VERIFY THE SUBSCRIPTION STATUS

Once the correct ESN is matched with the VIN, inquire with the SIRIUS Dealer Support Line if the subscription is subscribed or unsubscribed.

Does the SIRIUS Dealer Support Line indicate that the subscription has expired?

Yes

INSTRUCT the customer to contact SIRIUS to reactivate the subscription.

GO to B4

B4 SEND THE SIRIUS ACTIVATION SIGNAL AND RECHECK THE SATELLITE RADIO SYSTEM FOR CORRECT OPERATION

Using a diagnostic scan tool, view the ACM Parameter Identifications (PIDs).

Monitor the Satellite Radio Signal Strength PID (SAT_SIG_STR).

If the PID reads "No Signal" or "Poor," drive the vehicle to an outdoor location that is free from obstacles such as tall buildings or large trees until a "Good," "Very Good," or "Excellent" PID value is obtained.

Operate the audio system in satellite radio mode.

NOTE: It may take up to 15 minutes for the activation signal to be received and satellite radio functions to operate. Refer to www.siriusxm.com/refresh and input the ESN to send the activation signal to the vehicle.
- If more than 15 minutes have passed and satellite radio channels have not updated, refer to www.siriusxm.com/refresh and input the ESN again to resend/refresh the signal.

Operate multiple channels with the audio system in satellite radio mode.

Does the satellite radio system receive multiple channels with normal sound quality?

Yes

The system is operating correctly at this time. The concern was a result of the ESN and VIN on the customer’s SIRIUS file not matching the ESN and VIN retrieved from the vehicle.

No	• If a "Good," "Very Good," or "Excellent" PID value was able to be obtained, REFER to www.siriusxm.com/refresh and input the ESN to resend the activation signal. • If a "Good," "Very Good," or "Excellent" PID value was not able to be obtained, GO to B6

B5 CHECK THE RECEPTION

Using a diagnostic scan tool, view the ACM Parameter Identifications (PIDs).

Monitor the Satellite Radio Signal Strength PID (SAT_SIG_STR).

If the PID reads "No Signal" or "Poor," drive the vehicle to an outdoor location that is free from obstacles such as tall buildings or large trees until a "Good," "Very Good," or "Excellent" PID value is obtained.

Operate multiple channels with the audio system in satellite radio mode.

Can a "Good," "Very Good," or "Excellent" PID value be obtained and does the satellite radio system receive multiple channels with normal sound quality?

Yes

The system is operating correctly at this time. The concern was a result of obstructions in the antenna's line of sight.

GO to B6

B6 CHECK FOR ACM (AUDIO FRONT CONTROL MODULE) DTC (DIAGNOSTIC TROUBLE CODE) B1A89:11 OR DTC (DIAGNOSTIC TROUBLE CODE) B1A89:13

Ignition ON.

Using a diagnostic scan tool, clear the ACM Diagnostic Trouble Codes (DTCs).

Using a diagnostic scan tool, perform the ACM self-test.

Is DTC B1A89:11 and/or DTC B1A89:13 set in the ACM ?

Yes

GO to B7

GO to B21

B7 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OUTPUT VOLTAGE FROM THE SATELLITE RADIO COAXIAL CABLE CONNECTION

Ignition OFF.

Disconnect: Satellite radio antenna coaxial cable from the ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM (component side)		Ground

Is the voltage between 4.4 and 5.5 volts?

Yes

GO to B8

GO to B21

B8 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: Satellite radio antenna coaxial cable from the ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Disconnect: Satellite radio/GPS antenna inline coaxial cable connection behind the RH lower cowl trim panel.
REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

GO to B9

B9 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to B10

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

B10 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio coaxial cable core at the ACM		Front satellite radio/GPS antenna coaxial cable core at the inline connection
Satellite radio antenna coaxial cable shield at the ACM		Front satellite radio/GPS antenna coaxial cable shield at the inline connection

Are the resistances less than 1 ohm?

Yes

GO to B11

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

B11 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to B12

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

B12 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Connect: Satellite radio/GPS antenna inline coaxial cable connection behind the RH lower cowl trim panel.

Disconnect: Satellite radio/GPS antenna coaxial cable from the antenna unit.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable.
REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

GO to B13

B13 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to B14

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

B14 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio/GPS antenna coaxial cable core at the antenna unit (harness side)
Satellite radio antenna coaxial cable shield at the ACM		Satellite radio/GPS antenna coaxial cable shield at the antenna unit (harness side)

Are the resistances less than 1 ohm?

Yes

GO to B15

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

B15 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to B16

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

B16 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Connect: Satellite radio/GPS antenna coaxial cable to the antenna unit.

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

INSTALL a new AM / FM /satellite radio/ GPS antenna.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

GO to B17

B17 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to B18

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

B18 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE AND SHIELD FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to B19

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

B19 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT SHIELD FOR CONTINUITY TO GROUND

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio/GPS antenna coaxial cable shield at the antenna unit (component side)		Ground

Is the resistance less than 1 ohm?

Yes

GO to B21

GO to B20

B20 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT SHIELD FOR CONTINUITY TO ANTENNA UNIT BASE

Remove the AM / FM /satellite radio/ GPS antenna.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio/GPS antenna coaxial cable shield at the antenna unit (component side)		Satellite radio/GPS antenna base (unpainted surface)

Is the resistance less than 1 ohm?

Yes

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

B21 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all ACM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

SIRIUS Travel Link Is Inoperative Or Does Not Operate Correctly - If Equipped With Navigation

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B119F:01	GPS Antenna: General Electrical Failure	Set by the APIM when a short to ground or short to battery voltage is detected on the GPS coaxial cable between the APIM and satellite radio/ GPS splitter for more than 250 milliseconds.	Continuous
B119F:13	GPS Antenna: Circuit Open	Set by the APIM when an open is detected on the GPS coaxial cable between the APIM and satellite radio/ GPS splitter for more than 250 milliseconds.	Continuous
B1A89:11	Satellite Antenna: Circuit Short To Ground	Set by the ACM when a short to ground is detected for more than 1 second on any of the following: Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter Satellite radio/GPS splitter Rear satellite radio/GPS coaxial cable Antenna	Continuous and on-demand
B1A89:13	Satellite Antenna: Circuit Open	Set by the ACM when an open is detected for more 250 milliseconds on any of the following: Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter Satellite radio/GPS splitter Rear satellite radio/GPS coaxial cable Antenna	Continuous and on-demand
U1A00:87	Private Communication Network: Missing Message	Set by the APIM when it sends a request over the HS-CAN3 to the ACM and does not receive a valid response from the ACM on the SDL circuits in five seconds with at least three retries, or if there is a fault which would prevent data from being transmitted through any of the following: Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter Satellite radio/GPS splitter Rear satellite radio/GPS coaxial cable Antenna	On-demand

Possible Sources

Expired subscription
Obstructions in the satellite antenna's line of sight
Obstructions in the GPS antenna's line of sight
Incorrectly matched ESN
Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter
Satellite radio/GPS splitter
Rear satellite radio/GPS coaxial cable
AM / FM /satellite radio/ GPS antenna
Wiring, terminals, or connectors
ACM
APIM

PINPOINT TEST C: SIRIUS TRAVEL LINK IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY - IF EQUIPPED WITH NAVIGATION

C1 VERIFY AN ACTIVE SUBSCRIPTION

NOTE: The status of the satellite radio subscription should be disregarded in this step since SIRIUS Travel Link does not require a satellite radio subscription to operate.

Access the "Subscription Info" selection in the SIRIUS Travel Link menu.

Does the display indicate "Unsubscribed" for traffic, weather, fuel prices, movie times, sports, weather map, or ski conditions?

Yes

• If the display indicates "Unsubscribed" for one or more, but not all categories mentioned above, GO to C32
• If the display indicates "Unsubscribed" for all categories mentioned above, and if the ACM has not been replaced previously, the subscription has expired. INSTRUCT the customer to contact SIRIUS to reactivate the subscription.
• If the display indicates "Unsubscribed" for all categories mentioned above, and if the ACM has been replaced previously, GO to C2

• If one or more categories display a refresh icon and cannot be accessed or updated, GO to C5
• If all categories can be accessed, but certain date-dependent features are inoperative (such as in-season sports schedules or scores) or contain data for the wrong day (such as movie times or the 5-day forecast), GO to C9

C2 VERIFY IF THERE IS A ESN (ELECTRONIC SERIAL NUMBER) /VIN MISMATCH ON THE CUSTOMER’S ACCOUNT

Retrieve the satellite radio ESN by tuning to channel 0.

Contact the SIRIUS Dealer Support Line (888-465-8528).

Inquire if the ESN and VIN on the customer’s SIRIUS file match the ESN and VIN retrieved from the vehicle.

Do the ESN and VIN on the customer’s SIRIUS file match the ESN and VIN retrieved from the vehicle?

Yes

The subscription has expired. INSTRUCT the customer to contact SIRIUS to reactivate the subscription.

GO to C3

C3 CORRECT THE ESN (ELECTRONIC SERIAL NUMBER) /VIN MISMATCH AND RE-VERIFY THE SUBSCRIPTION STATUS

Once the correct ESN is matched with the VIN, inquire with the SIRIUS Dealer Support Line if the subscription is subscribed or unsubscribed.

Does the SIRIUS Dealer Support Line indicate that the subscription has expired?

Yes

INSTRUCT the customer to contact SIRIUS to reactivate the subscription.

GO to C4

C4 SEND THE SIRIUS ACTIVATION SIGNAL AND RECHECK SIRIUS TRAVEL LINK FOR CORRECT OPERATION

Using a diagnostic scan tool, view the ACM Parameter Identifications (PIDs).

Monitor the Satellite Radio Signal Strength PID (SAT_SIG_STR).

If the PID reads "No Signal" or "Poor," drive the vehicle to an outdoor location that is free from obstacles such as tall buildings or large trees until a "Good," "Very Good," or "Excellent" PID value is obtained.

Operate SIRIUS Travel Link.

NOTE: It may take up to 15 minutes for the activation signal to be received and SIRIUS Travel Link features to update and operate. Refer to www.siriusxm.com/refresh and input the ESN to send the activation signal to the vehicle.
- If more than 15 minutes have passed and SIRIUS Travel Link features have not updated, refer to www.siriusxm.com/refresh and input the ESN again to resend/refresh the signal.

Operate various SIRIUS Travel Link features and observe their functionality.

Does SIRIUS Travel Link operate correctly?

Yes

The system is operating correctly at this time. The concern was a result of the ESN and VIN on the customer’s SIRIUS file not matching the ESN and VIN retrieved from the vehicle.

• If a "Good," "Very Good," or "Excellent" PID value was able to be obtained and if one or more categories display a refresh icon and cannot be accessed or updated, GO to C13
• If a "Good," "Very Good," or "Excellent" PID value was able to be obtained, and if all categories can be accessed, but certain date-dependent features are inoperative (such as in-season sports schedules or scores) or contain data for the wrong day (such as movie times or the 5-day weather forecast), GO to C9
• If a "Good," "Very Good," or "Excellent" PID value was not able to be obtained, GO to C7

C5 CHECK THE SATELLITE ANTENNA RECEPTION

Using a diagnostic scan tool, view the ACM Parameter Identifications (PIDs).

Monitor the Satellite Radio Signal Strength PID (SAT_SIG_STR).

If the PID reads "No Signal" or "Poor," drive the vehicle to an outdoor location that is free from obstacles such as tall buildings or large trees until a "Good," "Very Good," or "Excellent" PID value is obtained.

Can a "Good," "Very Good," or "Excellent" PID value be obtained?

Yes

GO to C6

GO to C7

C6 ALLOW THE CATEGORIES TO UPDATE AND CHECK SIRIUS TRAVEL LINK FOR CORRECT OPERATION

NOTE: The frequency that the categories update varies depending on the category and SIRIUS infrastructure data load.

Wait for 15 minutes for all categories to have a chance to update.

Operate various SIRIUS Travel Link features and observe their functionality.

Does SIRIUS Travel Link operate correctly?

Yes

The system is operating correctly at this time. The concern was a result of obstructions in the antenna's line of sight.

GO to C13

C7 CHECK FOR ACM (AUDIO FRONT CONTROL MODULE) DTC (DIAGNOSTIC TROUBLE CODE) B1A89:11 OR DTC (DIAGNOSTIC TROUBLE CODE) B1A89:13

Ignition ON.

Using a diagnostic scan tool, clear the ACM Diagnostic Trouble Codes (DTCs).

Using a diagnostic scan tool, perform the ACM self-test.

Is DTC B1A89:11 or DTC B1A89:13 set in the ACM ?

Yes

GO to C8

GO to C31

C8 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OUTPUT VOLTAGE FROM THE SATELLITE RADIO COAXIAL CABLE CONNECTION

Ignition OFF.

Disconnect: Satellite radio antenna coaxial cable from the ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM (component side)		Ground

Is the voltage between 4.4 and 5.5 volts?

Yes

GO to C14

GO to C31

C9 CHECK THE GPS (GLOBAL POSITIONING SYSTEM) ANTENNA RECEPTION

Access Bezel Diagnostics.
REFER to: Bezel Diagnostics (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, General Procedures).

Monitor the "Number of Satellites" and "Fix Mode" in APIM Location Information.

If the values read less than 3 for "Number of Satellites" or "No GPS Fix" for "Fix Mode," drive the vehicle to an outdoor location that is free from obstacles such as tall buildings or large trees until at least 3 satellites are listed for "Number of Satellites" and "3D" is listed for "Fix Mode."

Can 3 or more satellites and a 3D fix be obtained?

Yes

GO to C10

GO to C11

C10 ALLOW THE DATE-DEPENDENT FEATURES TO UPDATE AND CHECK SIRIUS TRAVEL LINK FOR CORRECT OPERATION

NOTE: The frequency that the categories update varies depending on the category and SIRIUS infrastructure data load.

Wait for 15 minutes for all categories to have a chance to update.

Operate various SIRIUS Travel Link features and observe their functionality.

Does SIRIUS Travel Link operate correctly?

Yes

The system is operating correctly at this time. The concern was a result of obstructions in the antenna's line of sight.

GO to C32

C11 CHECK THE GPS (GLOBAL POSITIONING SYSTEM) COAXIAL CABLE FOR A SHORT TO VOLTAGE, SHORT TO GROUND, OR OPEN

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B119F:01 or DTC B119F:13 set in the APIM ?

Yes

GO to C12

GO to C32

C12 CHECK FOR CORRECT APIM (SYNC MODULE) OUTPUT VOLTAGE FROM THE GPS (GLOBAL POSITIONING SYSTEM) COAXIAL CABLE CONNECTION

Ignition OFF.

Disconnect: GPS Coaxial Cable from the APIM .

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

GPS coaxial cable core at the APIM (component side) Ground

Is the voltage between 4.7 and 5.8 volts?

Yes

GO to C32

C13 CHECK FOR APIM (SYNC MODULE) DTC (DIAGNOSTIC TROUBLE CODE) U1A00:87

Ignition ON.

Using a diagnostic scan tool, clear the APIM Diagnostic Trouble Codes (DTCs).

Using a diagnostic scan tool, perform the APIM self-test.

Is DTC U1A00:87 set in the APIM ?

Yes

GO to C27

GO to C31

C14 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: Satellite radio antenna coaxial cable from the ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Disconnect: Satellite radio/GPS antenna inline coaxial cable connection behind the RH lower cowl trim panel.
REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

GO to C15

C15 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to C16

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

C16 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio coaxial cable core at the ACM		Front satellite radio/GPS antenna coaxial cable core at the inline connection
Satellite radio antenna coaxial cable shield at the ACM		Front satellite radio/GPS antenna coaxial cable shield at the inline connection

Are the resistances less than 1 ohm?

Yes

GO to C17

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

C17 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to C18

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

C18 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Connect: Satellite radio/GPS antenna inline coaxial cable connection behind the RH lower cowl trim panel.

Disconnect: Satellite radio/GPS antenna coaxial cable from the antenna unit.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

GO to C19

C19 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to C20

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

C20 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio/GPS antenna coaxial cable core at the antenna unit (harness side)
Satellite radio antenna coaxial cable shield at the ACM		Satellite radio/GPS antenna coaxial cable shield at the antenna unit (harness side)

Are the resistances less than 1 ohm?

Yes

GO to C21

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

C21 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to C22

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

C22 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Connect: Satellite radio/GPS antenna coaxial cable to the antenna unit.

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

GO to C23

C23 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to C24

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

C24 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE AND SHIELD FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to C25

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

C25 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT SHIELD FOR CONTINUITY TO GROUND

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio/GPS antenna coaxial cable shield at the antenna unit (component side)		Ground

Is the resistance less than 1 ohm?

Yes

GO to C31

GO to C26

C26 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT SHIELD FOR CONTINUITY TO ANTENNA UNIT BASE

Remove the AM / FM /satellite radio/ GPS antenna.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio/GPS antenna coaxial cable shield at the antenna unit (component side)		Satellite radio/GPS antenna base (unpainted surface)

Is the resistance less than 1 ohm?

Yes

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

C27 CHECK THE SDL (SIRIUS DATA LINK) CIRCUITS FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: ACM C240B.

Disconnect: APIM C2383A.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240B-6 Ground

C240B-19 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to C28

C28 CHECK THE SDL (SIRIUS DATA LINK) CIRCUITS FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240B-6 Ground

C240B-19 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to C29

No	REPAIR the circuit in question.

C29 CHECK THE SDL (SIRIUS DATA LINK) CIRCUITS FOR AN OPEN

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240B-6 C2383A-51

C240B-19 C2383A-52

Are the resistances less than 3 ohms?

Yes

GO to C30

No	REPAIR the circuit in question.

C30 CHECK THE SDL (SIRIUS DATA LINK) CIRCUITS FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240B-6 C240B-19

Is the resistance greater than 10,000 ohms?

Yes

GO to C32

No	REPAIR the circuit in question.

C31 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

C32 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

A Loud Popping Sound Is Heard When Cycling The Ignition

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Refer to Wiring Diagrams Cell 20 for schematic and connector information.

Normal Operation and Fault Conditions

The PCM provides voltage to the ACM on the start signal circuit when the ignition is in the START position. When the voltage is received by the ACM , the audio signal output is muted to prevent voltage spikes from producing popping noises through the speakers. An open on the circuit between splice S212 and the ACM could cause voltage spikes to produce popping noises through the speakers.

Possible Sources

Wiring, terminals, or connectors
ACM

PINPOINT TEST D: A LOUD POPPING SOUND IS HEARD WHEN CYCLING THE IGNITION

D1 CHECK THE START SENSE CIRCUIT FOR AN OPEN

Ignition OFF.

Disconnect: ACM C240A.

Remove: BJB Starter Inhibit Relay.

Disconnect:
- PCM C1381B For vehicles with the 1.0L Fox GTDI (90kW/120PS).
- PCM C175E for vehicles with the 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma.
- PCM C1915B for vehicles with the 1.6L EcoBoost (132kW/180PS) - Sigma.
- IPC C220A for vehicles with push button start.

Click to display connectors

For vehicles with the 1.0L Fox GTDI (90kW/120PS), measure:

Positive Lead	Measurement / Action	Negative Lead
C240A-3		BJB Starter Inhibit Relay Socket 1

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C240A-3		C1381B-62

Click to display connectors

For vehicles with the 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma, measure without push button start:

Positive Lead	Measurement / Action	Negative Lead
C240A-3		BJB Starter Inhibit Relay Socket 1

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C240A-3		C175E-15

Click to display connectors

For vehicles with the 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma, measure with push button start:

Positive Lead	Measurement / Action	Negative Lead
C240A-3		BJB Starter Inhibit Relay Socket 1

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C240A-3		C175E-15

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C240A-3		C220A-9

Click to display connectors

For vehicles with the 1.6L EcoBoost (132kW/180PS) - Sigma, measure:

Positive Lead	Measurement / Action	Negative Lead
C240A-3		BJB Starter Inhibit Relay Socket 1

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C240A-3		C1915B-62

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C240A-3		C220A-9

Are the resistances less than 3 ohms?

Yes

GO to D2

No	REPAIR the circuit.

D2 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new ACM .
REFER to: Audio Front Control Module (ACM) (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

No Sound From All Speakers

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Information and Entertainment System - System Operation and Component Description (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Description and Operation).
See ACM .

A short to ground or short to voltage in the circuitry to one of the speakers may cause multiple speakers to lose sound due to the built-in overload protection feature of the ACM . In this case, a speaker fault DTC sets.

The PCM provides voltage to the ACM on the start signal circuit when the ignition is in the START position. When the voltage is received by the ACM , the audio signal output is muted to prevent voltage spikes from producing popping noises through the speakers. A short to voltage on this circuit causes the ACM output to be muted continuously.

Possible Source

Wiring, terminals, or connectors
ACM

PINPOINT TEST E: NO SOUND FROM ALL SPEAKERS

E1 VERIFY THAT THE ACM (AUDIO FRONT CONTROL MODULE) PASSES THE NETWORK TEST

Using a diagnostic scan tool, perform the network test.

Did the ACM pass the network test?

Yes

GO to E2

No	REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing). See The ACM Does Not Respond To The Diagnostic Scan Tool.

E2 CHECK FOR SPEAKER DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the ACM self-test.

Are any speaker fault Diagnostic Trouble Codes (DTCs) present?

Yes

REFER to: Information and Entertainment System (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Diagnosis and Testing).
See DTC Chart: ACM .

GO to E3

E3 CHECK THE START SENSE CIRCUIT FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: ACM C240A.

Remove: BJB Starter Inhibit Relay.

Disconnect:
- PCM C1381B For vehicles with the 1.0L Fox GTDI (90kW/120PS).
- PCM C175E for vehicles with the 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma.
- PCM C1915B for vehicles with the 1.6L EcoBoost (132kW/180PS) - Sigma.
- IPC C220A for vehicles with push button start.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240A-3 Ground

Is any voltage present?

Yes

REPAIR the circuit.

GO to E4

E4 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, discontinue this test and follow TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new ACM .
REFER to: Audio Front Control Module (ACM) (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by GO to Pinpoint Test Amodule connections. ADDRESS the root cause of any connector or pin issues.

Poor Sound Quality Or Distorted Sound From One Or More Speakers (Not All Speakers)

Normal Operation and Fault Conditions

The ACM sends audio signals to the speakers in the form of AC voltage, resulting in clear audio output.

Possible Sources

Loose component fasteners
Loose door handle, lock, and other trim panel components and fasteners
Loose items in storage areas
Loose speaker grilles
Loose wire harnesses or wire harness fasteners
Speaker(s)
Water shield bonding and placement

Visual Inspection and Diagnostic Pre-checks

Inspect the suspect area for any possible rattle conditions such as:

Any storage compartments including cup holders (if equipped)
Door map pockets for contents that can rattle (if equipped)
Door pull cup attachments (if equipped)
Door switch bezels (if equipped)
Package tray (if equipped)
Speaker grilles
Trim panels and fasteners

PINPOINT TEST F: POOR SOUND QUALITY OR DISTORTED SOUND FROM ONE OR MORE SPEAKERS (NOT ALL SPEAKERS)

F1 ISOLATE THE ZONE

Operate the audio system using digital media (CD , MP3, etc.).

Using the audio system fade and balance feature, adjust the audio sound to each of the four zones (LHF , RHF , LHR and RHR ) of the vehicle to isolate the poor sound quality.

Locate and apply pressure to the trim panel(s) around the poor sound quality area in question.

Does applying pressure to a trim panel reduce or eliminate the audible noise?

Yes

REPAIR or REPLACE the trim panel as needed.

GO to F2

F2 REMOVE AND INSPECT BEHIND/UNDERNEATH THE SUSPECT TRIM PANEL(S)

Remove the trim panel to access the suspect speaker.

Operate the audio system using digital media (CD , MP3, etc.).

Validate where the poor sound quality area is located.

Check:
- Trim panel for loose components around the speaker area such as the speaker grille.
- Trim panel joining components for missing or broken pieces.
- Lock and handle mechanical parts for correct attachment.
- Wire harnesses for correct routing.
- Wire harness fasteners for correct attachment.
- Water shield for correct placement (speaker air path not blocked).
- Water shield for correct bonding to sheet metal.
- Storage areas for loose items.
- All child safety belt anchors (if equipped).
- All safety belt retractors.
- All speaker bracket fasteners and other fasteners are secured and tightened to specified torque.

Was the source of the noise located?

Yes

REPAIR or REPLACE any loose or broken component or fastener as needed.

GO to F3

F3 CHECK THE SUSPECT SPEAKER FOR WATER INTRUSION

Inspect for watermarks.

Check the:
- Cone
- Magnet
- Basket

Are any watermarks present on the speaker?

Yes

VERIFY the water shield is in the correct location, REPAIR or REPLACE any trim, door, or speaker seal as required.
DRY the speaker in question and TEST the system for normal operation.

GO to F4

F4 ISOLATE SPEAKER TO VERIFY NOISE

Remove the suspect speaker from its location and leave the speaker connected to the harness.

Hold the speaker away from any trim panel(s) and ensure the speaker is isolated from contact.

Operate the audio system using digital media (CD , MP3, etc.).

Is the noise still present in the suspect speaker?

Yes

INSTALL a new speaker for the one in question.

No	LOCATE the source of the noise and REPAIR as needed.

The Speed Compensated Volume Does Not Operate Correctly

Normal Operation and Fault Conditions

Possible Sources

Speed compensated volume setting
ACM

PINPOINT TEST G: THE SPEED COMPENSATED VOLUME DOES NOT OPERATE CORRECTLY

G1 CHECK THE SPEEDOMETER OPERATION

Drive the vehicle and observe the speedometer.

Does the speedometer operate correctly?

Yes

GO to G2

No	REFER to: Instrumentation, Message Center and Warning Chimes (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing). See The Speedometer Is Inoperative

G2 CHECK THE SPEED COMPENSATED VOLUME SETTING

Turn the speed compensated volume off. Refer to the Owner's Literature.

Operate the audio system in AM / FM mode.

Drive the vehicle at various speeds and observe the speaker volume.

Set the speed compensated volume to maximum compensation. Refer to the Owner's Literature.

Operate the audio system in AM / FM mode.

Drive the vehicle at various speeds and observe the speaker volume.

Does the volume remain constant with the speed compensated volume turned off, and increase and decrease with vehicle speed with the speed compensated volume set to maximum?

Yes

The system is operating correctly at this time. INSTRUCT the customer in the correct usage of the speed compensated volume feature.

GO to G3

G3 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0155:00

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0155:00 retrieved in any audio system module?

Yes

GO to Pinpoint Test AD

GO to G4

G4 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The LHF Door Speaker Is Inoperative

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

The LHF door speaker and LHF door tweeter speaker share the same audio signal.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B1A01:01	Speaker #1: General Electrical Failure	Set by the ACM when a failure is detected on the LHF door or LHF door tweeter speaker circuits.	On-demand
B1A01:11	Speaker #1: Circuit Short To Ground	Set by the ACM when a short to ground is detected on the LHF door or LHF door tweeter speaker circuits. When DTC B1A01:11 is set, the speaker output is disabled.	Continuous and on-demand
B1A01:12	Speaker #1: Circuit Short To Battery	Set by the ACM when a short to voltage is detected on the LHF door or LHF door tweeter speaker circuits. When DTC B1A01:12 is set, the speaker output is disabled.	Continuous and on-demand
B1A01:13	Speaker #1: Circuit Open	Set by the ACM when an open is detected on the LHF door speaker circuits.	On-demand

Possible Sources

Speaker
Wiring, terminals, or connectors
ACM

PINPOINT TEST H: THE LHF (LEFT-HAND FRONT) DOOR SPEAKER IS INOPERATIVE

H1 CHECK THE AUDIO SIGNAL TO THE LHF (LEFT-HAND FRONT) DOOR SPEAKER

Ignition OFF.

Disconnect: LHF Door Speaker C536.

Operate the audio system in AM / FM mode.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C536-1 C536-4

Is a fluctuating AC voltage present?

Yes

INSTALL a new LHF door speaker.
REFER to: Front Door Speaker (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

GO to H2

H2 CHECK THE AUDIO CIRCUITS TO THE LHF (LEFT-HAND FRONT) DOOR SPEAKER FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: ACM C240A.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C536-1 Ground

C536-4 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to H3

H3 CHECK THE AUDIO CIRCUITS TO THE LHF (LEFT-HAND FRONT) DOOR SPEAKER FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C536-1 Ground

C536-4 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to H4

No	REPAIR the circuit in question.

H4 CHECK THE AUDIO CIRCUITS TO THE LHF (LEFT-HAND FRONT) DOOR SPEAKER FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C536-1 C240A-22

C536-4 C240A-10

Are the resistances less than 3 ohms?

Yes

GO to H5

No	REPAIR the circuit in question.

H5 CHECK THE AUDIO CIRCUITS TO THE LHF (LEFT-HAND FRONT) DOOR SPEAKER FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C536-1 C536-4

Is the resistance greater than 10,000 ohms?

Yes

GO to H6

No	REPAIR the circuit in question.

H6 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Disconnect and inspect all the ACM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The LHF Door Tweeter Speaker Is Inoperative

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

The LHF door speaker and LHF door tweeter speaker share the same audio signal.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B1A01:01	Speaker #1: General Electrical Failure	Set by the ACM when a failure is detected on the LHF door or LHF door tweeter speaker circuits.	On-demand
B1A01:11	Speaker #1: Circuit Short To Ground	Set by the ACM when a short to ground is detected on the LHF door or LHF door tweeter speaker circuits. When DTC B1A01:11 is set, the speaker output is disabled.	Continuous and on-demand
B1A01:12	Speaker #1: Circuit Short To Battery	Set by the ACM when a short to voltage is detected on the LHF door or LHF door tweeter speaker circuits. When DTC B1A01:12 is set, the speaker output is disabled.	Continuous and on-demand

Possible Sources

Speaker
Wiring, terminals, or connectors

PINPOINT TEST I: THE LHF (LEFT-HAND FRONT) DOOR TWEETER SPEAKER IS INOPERATIVE

I1 CHECK THE LHF (LEFT-HAND FRONT) DOOR SPEAKER

Ignition OFF.

Operate the audio system in AM / FM mode.

Does the LHF door speaker operate correctly?

Yes

GO to I2

No	GO to Pinpoint Test H

I2 CHECK THE AUDIO SIGNAL TO THE LHF (LEFT-HAND FRONT) DOOR TWEETER SPEAKER

Ignition OFF.

Disconnect: LHF Door Tweeter Speaker C513.

Operate the audio system in AM / FM mode.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C513-1 C513-3

Is a fluctuating AC voltage present?

Yes

INSTALL a new LHF door tweeter speaker.
REFER to: Front Door Tweeter Speaker (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

GO to I3

I3 CHECK THE AUDIO CIRCUITS TO THE LHF (LEFT-HAND FRONT) DOOR TWEETER SPEAKER FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: LHF Door Speaker C536.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C513-1 Ground

C513-3 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to I4

I4 CHECK THE AUDIO CIRCUITS TO THE LHF (LEFT-HAND FRONT) DOOR TWEETER SPEAKER FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C513-1 Ground

C513-3 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to I5

No	REPAIR the circuit in question.

I5 CHECK THE AUDIO CIRCUITS TO THE LHF (LEFT-HAND FRONT) DOOR TWEETER SPEAKER FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C513-1 C536-2

C513-3 C536-3

Are the resistances less than 3 ohms?

Yes

GO to I6

No	REPAIR the circuit in question.

I6 CHECK THE AUDIO CIRCUITS TO THE LHF (LEFT-HAND FRONT) DOOR TWEETER SPEAKER FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C513-1 C513-3

Is the resistance greater than 10,000 ohms?

Yes

INSTALL a new LHF door speaker.
REFER to: Front Door Speaker (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

No	REPAIR the circuit in question.

The RHF Door Speaker Is Inoperative

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

The RHF door speaker and RHF door tweeter speaker share the same audio signal.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B1A02:01	Speaker #2: General Electrical Failure	Set by the ACM when a failure is detected on the RHF door or RHF door tweeter speaker circuits.	On-demand
B1A02:11	Speaker #2: Circuit Short To Ground	Set by the ACM when a short to ground is detected on the RHF door or RHF door tweeter speaker circuits. When DTC B1A02:11 is set, the speaker output is disabled.	Continuous and on-demand
B1A02:12	Speaker #2: Circuit Short To Battery	Set by the ACM when a short to voltage is detected on the RHF door or RHF door tweeter speaker circuits. When DTC B1A02:12 is set, the speaker output is disabled.	Continuous and on-demand
B1A02:13	Speaker #2: Circuit Open	Set by the ACM when an open is detected on the RHF door speaker circuits.	On-demand

Possible Sources

Speaker
Wiring, terminals, or connectors
ACM

PINPOINT TEST J: THE RHF (RIGHT-HAND FRONT) DOOR SPEAKER IS INOPERATIVE

J1 CHECK THE AUDIO SIGNAL TO THE RHF (RIGHT-HAND FRONT) DOOR SPEAKER

Ignition OFF.

Disconnect: RHF Door Speaker C628.

Operate the audio system in AM / FM mode.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C628-1 C628-4

Is a fluctuating AC voltage present?

Yes

INSTALL a new RHF door speaker.
REFER to: Front Door Speaker (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

GO to J2

J2 CHECK THE AUDIO CIRCUITS TO THE RHF (RIGHT-HAND FRONT) DOOR SPEAKER FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: ACM C240A.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C628-1 Ground

C628-4 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to J3

J3 CHECK THE AUDIO CIRCUITS TO THE RHF (RIGHT-HAND FRONT) DOOR SPEAKER FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C628-1 Ground

C628-4 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to J4

No	REPAIR the circuit in question.

J4 CHECK THE AUDIO CIRCUITS TO THE RHF (RIGHT-HAND FRONT) DOOR SPEAKER FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C628-1 C240A-23

C628-4 C240A-11

Are the resistances less than 3 ohms?

Yes

GO to J5

No	REPAIR the circuit in question.

J5 CHECK THE AUDIO CIRCUITS TO THE RHF (RIGHT-HAND FRONT) DOOR SPEAKER FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C628-1 C628-4

Is the resistance greater than 10,000 ohms?

Yes

GO to J6

No	REPAIR the circuit in question.

J6 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The RHF Door Tweeter Speaker Is Inoperative

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

The RHF door speaker and RHF door tweeter speaker share the same audio signal.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B1A02:01	Speaker #2: General Electrical Failure	Set by the ACM when a failure is detected on the RHF door or RHF door tweeter speaker circuits.	On-demand
B1A02:11	Speaker #2: Circuit Short To Ground	Set by the ACM when a short to ground is detected on the RHF door or RHF door tweeter speaker circuits. When DTC B1A02:11 is set, the speaker output is disabled.	Continuous and on-demand
B1A02:12	Speaker #2: Circuit Short To Battery	Set by the ACM when a short to voltage is detected on the RHF door or RHF door tweeter speaker circuits. When DTC B1A02:12 is set, the speaker output is disabled.	Continuous and on-demand

Possible Sources

Speaker
Wiring, terminals, or connectors

PINPOINT TEST K: THE RHF (RIGHT-HAND FRONT) DOOR TWEETER SPEAKER IS INOPERATIVE

K1 CHECK THE RHF (RIGHT-HAND FRONT) DOOR SPEAKER

Ignition OFF.

Operate the audio system in AM / FM mode.

Does the RHF door speaker operate correctly?

Yes

GO to K2

No	GO to Pinpoint Test J

K2 CHECK THE AUDIO SIGNAL TO THE RHF (RIGHT-HAND FRONT) DOOR TWEETER SPEAKER

Ignition OFF.

Disconnect: RHF Door Tweeter Speaker C613.

Operate the audio system in AM / FM mode.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C613-1 C613-3

Is a fluctuating AC voltage present?

Yes

INSTALL a new RHF door tweeter speaker.
REFER to: Front Door Tweeter Speaker (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

GO to K3

K3 CHECK THE AUDIO CIRCUITS TO THE RHF (RIGHT-HAND FRONT) DOOR TWEETER SPEAKER FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: RHF Door Speaker C628.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C613-1 Ground

C613-3 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to K4

K4 CHECK THE AUDIO CIRCUITS TO THE RHF (RIGHT-HAND FRONT) DOOR TWEETER SPEAKER FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C613-1 Ground

C613-3 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to K5

No	REPAIR the circuit in question.

K5 CHECK THE AUDIO CIRCUITS TO THE RHF (RIGHT-HAND FRONT) DOOR TWEETER SPEAKER FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C613-1 C628-2

C613-3 C628-3

Are the resistances less than 3 ohms?

Yes

GO to K6

No	REPAIR the circuit in question.

K6 CHECK THE AUDIO CIRCUITS TO THE RHF (RIGHT-HAND FRONT) DOOR TWEETER SPEAKER FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C613-1 C613-3

Is the resistance greater than 10,000 ohms?

Yes

INSTALL a new RHF door speaker.
REFER to: Front Door Speaker (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

No	REPAIR the circuit in question.

The RHR Door Speaker Is Inoperative

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B1A03:01	Speaker #3: General Electrical Failure	Set by the ACM when a failure is detected on the RHR door speaker circuits.	On-demand
B1A03:11	Speaker #3: Circuit Short To Ground	Set by the ACM when a short to ground is detected on the RHR door speaker circuits. When DTC B1A03:11 is set, the speaker output is disabled.	Continuous and on-demand
B1A03:12	Speaker #3: Circuit Short To Battery	Set by the ACM when a short to voltage is detected on the RHR door speaker circuits. When DTC B1A03:12 is set, the speaker output is disabled.	Continuous and on-demand
B1A03:13	Speaker #3: Circuit Open	Set by the ACM when an open is detected on the RHR door speaker circuits.	On-demand

Possible Sources

Speaker
Wiring, terminals, or connectors
ACM

PINPOINT TEST L: THE RHR (RIGHT-HAND REAR) DOOR SPEAKER IS INOPERATIVE

L1 CHECK THE AUDIO SIGNAL TO THE RHR (RIGHT-HAND REAR) DOOR SPEAKER

Ignition OFF.

Disconnect: RHR Door Speaker C802.

Operate the audio system in AM / FM mode.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C802-1 C802-4

Is a fluctuating AC voltage present?

Yes

INSTALL a new RHR door speaker.
REFER to: Rear Door Speaker (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

GO to L2

L2 CHECK THE AUDIO CIRCUITS TO THE RHR (RIGHT-HAND REAR) DOOR SPEAKER FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: ACM C240A.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C802-1 Ground

C802-4 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to L3

L3 CHECK THE AUDIO CIRCUITS TO THE RHR (RIGHT-HAND REAR) DOOR SPEAKER FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C802-1 Ground

C802-4 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to L4

No	REPAIR the circuit in question.

L4 CHECK THE AUDIO CIRCUITS TO THE RHR (RIGHT-HAND REAR) DOOR SPEAKER FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C802-1 C240A-24

C802-4 C240A-12

Are the resistances less than 3 ohms?

Yes

GO to L5

No	REPAIR the circuit in question.

L5 CHECK THE AUDIO CIRCUITS TO THE RHR (RIGHT-HAND REAR) DOOR SPEAKER FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C802-1 C802-4

Is the resistance greater than 10,000 ohms?

Yes

GO to L6

No	REPAIR the circuit in question.

L6 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Disconnect and inspect all the ACM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The LHR Door Speaker Is Inoperative

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B1A04:01	Speaker #4: General Electrical Failure	Set by the ACM when a failure is detected on the LHR door speaker circuits.	On-demand
B1A04:11	Speaker #4: Circuit Short To Ground	Set by the ACM when a short to ground is detected on the LHR door speaker circuits. When DTC B1A04:11 is set, the speaker output is disabled.	Continuous and on-demand
B1A04:12	Speaker #4: Circuit Short To Battery	Set by the ACM when a short to voltage is detected on the LHR door speaker circuits. When DTC B1A04:12 is set, the speaker output is disabled.	Continuous and on-demand
B1A04:13	Speaker #4: Circuit Open	Set by the ACM when an open is detected on the LHR door speaker circuits.	On-demand

Possible Sources

Speaker
Wiring, terminals, or connectors
ACM

PINPOINT TEST M: THE LHR (LEFT-HAND REAR) DOOR SPEAKER IS INOPERATIVE

M1 CHECK THE AUDIO SIGNAL TO THE LHR (LEFT-HAND REAR) DOOR SPEAKER

Ignition OFF.

Disconnect: LHR Door Speaker C702.

Operate the audio system in AM / FM mode.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C702-1 C702-4

Is a fluctuating AC voltage present?

Yes

INSTALL a new LHR door speaker.
REFER to: Rear Door Speaker (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

GO to M2

M2 CHECK THE AUDIO CIRCUITS TO THE LHR (LEFT-HAND REAR) DOOR SPEAKER FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: ACM C240A.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C702-1 Ground

C702-4 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to M3

M3 CHECK THE AUDIO CIRCUITS TO THE LHR (LEFT-HAND REAR) DOOR SPEAKER FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C702-1 Ground

C702-4 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to M4

No	REPAIR the circuit in question.

M4 CHECK THE AUDIO CIRCUITS TO THE LHR (LEFT-HAND REAR) DOOR SPEAKER FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C702-1 C240A-21

C702-4 C240A-9

Are the resistances less than 3 ohms?

Yes

GO to M5

No	REPAIR the circuit in question.

M5 CHECK THE AUDIO CIRCUITS TO THE LHR (LEFT-HAND REAR) DOOR SPEAKER FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C702-1 C702-4

Is the resistance greater than 10,000 ohms?

Yes

GO to M6

No	REPAIR the circuit in question.

M6 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Disconnect and install all the ACM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

All APIM Mono Outputs Are Inoperative Or Do Not Operate Correctly

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

Possible Sources

Wiring, terminals, or connectors
APIM
ACM

PINPOINT TEST N: ALL APIM (SYNC MODULE) MONO OUTPUTS ARE INOPERATIVE OR DO NOT OPERATE CORRECTLY

N1 CHECK FOR AN AC (ALTERNATING CURRENT) VOLTAGE SIGNAL ON THE APIM (SYNC MODULE) MONO OUTPUT CIRCUITS TO THE ACM (AUDIO FRONT CONTROL MODULE)

NOTICE: This pinpoint test step directs testing circuits using a back-probe method. Use the special back-probe tool POM6411. Do not force test leads or other probes into connectors. Adequate care must be exercised to avoid connector terminal damage, while ensuring that good electrical contact is made with the circuit or terminal. Failure to follow these instructions may cause damage to wiring, terminals, or connectors, and may cause subsequent electrical faults.

Access Bezel Diagnostics.
REFER to: Bezel Diagnostics (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, General Procedures).

While back-probing ACM C240B, measure the AC voltage while performing the Tones Test.
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240B-8 C240B-21

Is the AC voltage momentarily between 2.8-4.6 volts when the Mono Alert 1 and Mono Alert 2 are being tested?

Yes

GO to N7

GO to N2

N2 CHECK THE APIM (SYNC MODULE) MONO OUTPUT CIRCUITS TO THE ACM (AUDIO FRONT CONTROL MODULE) FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: ACM C240B.

Disconnect: APIM C2383A.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240B-8 Ground

C240B-21 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to N3

N3 CHECK THE APIM (SYNC MODULE) MONO OUTPUT CIRCUITS TO THE ACM (AUDIO FRONT CONTROL MODULE) FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240B-8 Ground

C240B-21 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to N4

No	REPAIR the circuit in question.

N4 CHECK THE APIM (SYNC MODULE) MONO OUTPUT CIRCUITS TO THE ACM (AUDIO FRONT CONTROL MODULE) FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240B-8 C2383A-3

C240B-21 C2383A-4

Are the resistances less than 3 ohms?

Yes

GO to N5

No	REPAIR the circuit in question.

N5 CHECK THE APIM (SYNC MODULE) MONO OUTPUT CIRCUITS TO THE ACM (AUDIO FRONT CONTROL MODULE) FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240B-8 C240B-21

Is the resistance greater than 10,000 ohms?

Yes

GO to N6

No	REPAIR the circuit in question.

N6 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Disconnect and inspect the APIM connector.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

N7 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, discontinue this test and follow TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

All APIM Stereo Outputs Are Inoperative Or Do Not Operate Correctly

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Information and Entertainment System - System Operation and Component Description (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Description and Operation).
See Bluetooth Mode, SYNC® System, USB Mode, ACM , APIM , and USB Hub.

Possible Sources

Wiring, terminals, or connectors
APIM
ACM

PINPOINT TEST O: ALL APIM (SYNC MODULE) STEREO OUTPUTS ARE INOPERATIVE OR DO NOT OPERATE CORRECTLY

O1 CHECK FOR AN AC (ALTERNATING CURRENT) VOLTAGE SIGNAL ON THE APIM (SYNC MODULE) STEREO OUTPUT CIRCUITS TO THE ACM (AUDIO FRONT CONTROL MODULE)

Access Bezel Diagnostics.
REFER to: Bezel Diagnostics (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, General Procedures).

While back-probing ACM C240B, measure the AC voltage while performing the Tones Test.
Click to display connectors
Stereo Left

Positive Lead Measurement / Action Negative Lead

C240B-12 C240B-25

Click to display connectors
Stereo Right

Positive Lead Measurement / Action Negative Lead

C240B-13 C240B-26

Is the AC voltage between 2.8-4.6 volts when the Stereo Right and Stereo Left are being tested?

Yes

GO to O7

GO to O2

O2 CHECK THE APIM (SYNC MODULE) STEREO OUTPUT CIRCUITS TO THE ACM (AUDIO FRONT CONTROL MODULE) FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: ACM C240B.

Disconnect: APIM C2383A.

Ignition ON.

Measure:
Click to display connectors
Stereo Left

Positive Lead Measurement / Action Negative Lead

C240B-12 Ground

C240B-25 Ground

Click to display connectors
Stereo Right

Positive Lead Measurement / Action Negative Lead

C240B-13 Ground

C240B-26 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to O3

O3 CHECK THE APIM (SYNC MODULE) STEREO OUTPUT CIRCUITS TO THE ACM (AUDIO FRONT CONTROL MODULE) FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors
Stereo Left

Positive Lead Measurement / Action Negative Lead

C240B-12 Ground

C240B-25 Ground

Click to display connectors
Stereo Right

Positive Lead Measurement / Action Negative Lead

C240B-13 Ground

C240B-26 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to O4

No	REPAIR the circuit in question.

O4 CHECK THE APIM (SYNC MODULE) STEREO OUTPUT CIRCUITS TO THE ACM (AUDIO FRONT CONTROL MODULE) FOR AN OPEN

Measure:
Click to display connectors
Stereo Left

Positive Lead Measurement / Action Negative Lead

C240B-12 C2383A-23

C240B-25 C2383A-24

Click to display connectors
Stereo Right

Positive Lead Measurement / Action Negative Lead

C240B-13 C2383A-25

C240B-26 C2383A-26

Are the resistances less than 3 ohms?

Yes

GO to O5

No	REPAIR the circuit in question.

O5 CHECK THE APIM (SYNC MODULE) STEREO OUTPUT CIRCUITS TO THE ACM (AUDIO FRONT CONTROL MODULE) FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C240B-12		C240B-13
C240B-12		C240B-25
C240B-12		C240B-26
C240B-13		C240B-25
C240B-13		C240B-26
C240B-25		C240B-26

Are the resistances greater than 10,000 ohms?

Yes

GO to O6

No	REPAIR the circuit in question.

O6 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

O7 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The APIM Does Not Acknowledge Voice Commands And Outgoing Audio Is Not Transmitted During A Phone Call

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B1D79:11	Microphone Input: Circuit Short To Ground	Set by the APIM when a short to ground is detected on the microphone circuits.	On-demand
B1D79:12	Microphone Input: Circuit Short To Battery	Set by the APIM when a short to battery voltage is detected on the microphone circuits.	On-demand
B1D79:13	Microphone Input: Circuit Open	Set by the APIM when an open is detected on the microphone circuits.	On-demand

Possible Sources

Wiring, terminals, or connectors
Microphone
APIM

PINPOINT TEST P: THE APIM (SYNC MODULE) DOES NOT ACKNOWLEDGE VOICE COMMANDS AND OUTGOING AUDIO IS NOT TRANSMITTED DURING A PHONE CALL

P1 CHECK THE MICROPHONE CIRCUITS FOR CORRECT VOLTAGE

Ignition OFF.

Disconnect: APIM C2383A.

Remove the connector cover for C2383A by gently releasing two tabs located near the circuit entry point, and sliding the cover out of place.

Backprobe: APIM C2383A-12.

Backprobe: APIM C2383A-13.

With the connector cover for C2383A still removed, carefully reconnect: APIM C2383A.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2383A-12 C2383A-13

Is the voltage between 1.6 and 6.3 volts?

Yes

GO to P2

GO to P7

P2 CHECK THE MICROPHONE’S RESPONSE TO SOUND INPUTS

Operate the audio system in AM / FM mode.

Measure the AC voltage while increasing and decreasing the audio system volume.
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2383A-12 C2383A-13

Is a fluctuating AC voltage present that increases when the audio system volume increases and decreases when the audio system volume decreases?

Yes

GO to P7

GO to P3

P3 CHECK THE MICROPHONE CIRCUITS FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: APIM C2383A and reinstall the connector cover.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2383A-12 Ground

C2383A-13 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to P4

P4 CHECK THE MICROPHONE CIRCUITS FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2383A-12 Ground

C2383A-13 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to P5

No	REPAIR the circuit in question.

P5 CHECK THE MICROPHONE CIRCUITS FOR AN OPEN

Disconnect: Microphone C9045 for vehicles with an overhead console.

Disconnect: Microphone C9221 for vehicles without an overhead console.

Click to display connectors

For vehicles with an overhead console, measure:

Positive Lead	Measurement / Action	Negative Lead
C2383A-12		C9045-1
C2383A-13		C9045-2

Click to display connectors

For vehicles without an overhead console, measure:

Positive Lead	Measurement / Action	Negative Lead
C2383A-12		C9221-2
C2383A-13		C9221-3

Are the resistances less than 3 ohms?

Yes

GO to P6

No	REPAIR the circuit in question.

P6 CHECK THE MICROPHONE CIRCUITS FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2383A-12 C2383A-13

Is the resistance greater than 10,000 ohms?

Yes

Install a new microphone.
REFER to: Microphone (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

No	REPAIR the circuit in question.

P7 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The USB Hub Is Inoperative Or Does Not Operate Correctly

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B1252:11	USB Port: Circuit Short to Ground	Set by the APIM when a short to ground or over-current condition is detected on the USB cable.	Continuous and on-demand
B1252:13	USB Port: Circuit Open	Set by the APIM when an open is detected on the USB cable, or when there is an open or short on the USB hub power or ground circuits, causing the USB hub to lose power.	On-demand
B14FD:11	External Media Control Connectivity: Circuit Short To Ground	Set by the APIM when an short to ground is detected on the USB hub power circuit for more than one second during normal operation.	Continuous

Possible Sources

USB hub
Customer's device
Wiring, terminals, or connectors
USB cable
APIM

PINPOINT TEST Q: THE USB (UNIVERSAL SERIAL BUS) HUB IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY

Q1 OBSERVE THE USB (UNIVERSAL SERIAL BUS) HUB ILLUMINATION

Ignition ON.

Observe if the USB hub illumination is operating correctly.

Is the USB hub illumination operating correctly?

Yes

• If the hub contains two USB ports, GO to Q2
• If the hub contains one USB port, GO to Q3

• If the hub contains two USB ports and only one port is illuminated, INSTALL a new USB hub.
REFER to: Universal Serial Bus (USB) Hub (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation). • If the USB hub illumination is completely inoperative, GO to Q5

Q2 REBOOT THE APIM (SYNC MODULE) AND OBSERVE THE OPERATION OF BOTH USB (UNIVERSAL SERIAL BUS) PORTS

Remove any devices connected to the USB hub.

Simultaneously press and hold the SEEK UP and POWER buttons on the FCIM for approximately 10 seconds. The touchscreen turns black before the startup sequence begins.

After the reboot is complete, connect the MIT 105-00120 to the USB hub.

Select USB mode on the MIT .

Operate the audio system in USB mode and observe the audio output.

Disconnect: MIT 105-00120 from the USB hub.

Connect: MIT 105-00120 to the other USB hub USB port.

Select USB mode on the MIT 105-00120.

Operate the audio system in USB mode and observe the audio output.

Is the audio system USB output OK with the MIT 105-00120 connected to each USB port?

Yes

GO to Q4

• If the audio output is not OK from one USB port, INSTALL a new USB hub.
REFER to: Universal Serial Bus (USB) Hub (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation). • If the audio output is not OK from both USB ports, GO to Q11

Q3 REBOOT THE APIM (SYNC MODULE) AND OBSERVE THE OPERATION OF THE USB (UNIVERSAL SERIAL BUS) PORT

Remove any devices connected to the USB hub.

Simultaneously press and hold the SEEK UP and POWER buttons on the FCIM for approximately 10 seconds. The touchscreen turns black before the startup sequence begins.

After the reboot is complete, connect the MIT 105-00120 to the USB hub.

Select USB mode on the MIT .

Operate the audio system in USB mode and observe the audio output.

Is the audio system USB output OK with the MIT 105-00120 connected to the USB port?

Yes

GO to Q4

GO to Q11

Q4 RETEST THE CUSTOMER’S DEVICE

Connect the customer’s device and test the audio output for each USB port.

Is the audio system USB output OK with the customer’s device connected to each USB port?

Yes

The system is operating correctly at this time. The concern may have been caused by a faulty USB device previously connected to the USB hub, and was corrected by cold booting the APIM software without any devices connected.

No	The fault is with the customer's device.

Q5 CHECK THE USB (UNIVERSAL SERIAL BUS) HUB VOLTAGE SUPPLY CIRCUIT

Ignition OFF.

Disconnect: USB Hub C3512A.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C3512A-1 Ground

Is the voltage greater than 11 volts?

Yes

GO to Q6

GO to Q7

Q6 CHECK THE USB (UNIVERSAL SERIAL BUS) HUB GROUND CIRCUIT

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C3512A-1 C3512A-4

Is the voltage greater than 11 volts?

Yes

INSTALL a new USB hub.
REFER to: Universal Serial Bus (USB) Hub (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

GO to Q7

Q7 CHECK THE USB (UNIVERSAL SERIAL BUS) HUB VOLTAGE SUPPLY CIRCUIT AND GROUND CIRCUIT FOR AN OPEN

Ignition OFF.

Disconnect: APIM C2383A.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C3512A-1 C2383A-8

C3512A-4 C2383A-38

Are the resistances less than 3 ohms?

Yes

GO to Q8

No	REPAIR the circuit in question.

Q8 CHECK THE USB (UNIVERSAL SERIAL BUS) HUB VOLTAGE SUPPLY CIRCUIT AND GROUND CIRCUIT FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C3512A-1 C3512A-4

Is the resistance greater than 10,000 ohms?

Yes

GO to Q9

No	REPAIR the circuit in question.

Q9 CHECK THE USB (UNIVERSAL SERIAL BUS) HUB VOLTAGE SUPPLY CIRCUIT FOR A SHORT TO GROUND

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C3512A-1 Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to Q10

No	REPAIR the circuit.

Q10 CHECK THE USB (UNIVERSAL SERIAL BUS) HUB GROUND CIRCUIT FOR A SHORT TO VOLTAGE

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C3512A-4 Ground

Is any voltage present?

Yes

REPAIR the circuit.

GO to Q16

Q11 INSPECT THE USB (UNIVERSAL SERIAL BUS) CABLE INLINE CONNECTION

Ignition OFF.

Disconnect: USB hub to APIM USB cable inline connection.
REFER to: SYNC Module [APIM] to Universal Serial Bus (USB) Port Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Inspect the USB cables and cable connectors for damage. Remove any debris.

Connect: USB hub to APIM USB cable inline connection. Verify the connector is properly seated and latched.

Ignition ON.

Perform an APIM reboot by simultaneously pressing and holding the SEEK UP and POWER buttons on the FCIM for approximately 10 seconds. The touchscreen turns black before the startup sequence begins.

After the reboot is complete, connect the MIT 105-00120 to the USB hub.

Select USB mode on the MIT 105-00120.

Operate the audio system in USB mode and observe the audio output.

Is the audio system USB output OK?

Yes

The concern was caused by the USB cable inline connection. The system is operating correctly at this time.

GO to Q12

Q12 INSPECT THE USB (UNIVERSAL SERIAL BUS) CABLE CONNECTION AT THE USB (UNIVERSAL SERIAL BUS) HUB

Ignition OFF.

Disconnect: USB hub to APIM USB cable connection at the USB hub.
REFER to: Universal Serial Bus (USB) Hub (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Inspect the USB cable, cable connector, and USB hub connector port for damage. Remove any debris.

Connect: USB hub to APIM USB cable at the USB hub. Verify the connector is properly seated and latched.

Ignition ON.

Perform an APIM reboot by simultaneously pressing and holding the SEEK UP and POWER buttons on the FCIM for approximately 10 seconds. The touchscreen turns black before the startup sequence begins.

After the reboot is complete, connect the MIT 105-00120 to the USB hub.

Select USB mode on the MIT 105-00120.

Operate the audio system in USB mode and observe the audio output.

Is the audio system USB output OK?

Yes

The concern was caused by the USB cable connection at the USB hub. The system is operating correctly at this time.

GO to Q13

Q13 INSPECT THE USB (UNIVERSAL SERIAL BUS) CABLE CONNECTION AT THE APIM (SYNC MODULE)

Ignition OFF.

Disconnect: USB cable connection at the APIM .
REFER to: SYNC Module [APIM] (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Inspect the USB cable, cable connector, and APIM connector port for damage. Remove any debris.

Connect: USB cable at the APIM . Verify the connector is properly seated and latched.

Ignition ON.

Perform an APIM reboot by simultaneously pressing and holding the SEEK UP and POWER buttons on the FCIM for approximately 10 seconds. The touchscreen turns black before the startup sequence begins.

After the reboot is complete, connect the MIT 105-00120 to the USB hub.

Select USB mode on the MIT 105-00120.

Operate the audio system in USB mode and observe the audio output.

Is the audio system USB output OK?

Yes

The concern was caused by the USB cable connection at the APIM hub. The system is operating correctly at this time.

GO to Q14

Q14 VERIFY THE OPERATION OF THE USB (UNIVERSAL SERIAL BUS) CABLE

Disconnect: USB hub to APIM USB cable from the USB hub.
REFER to: Universal Serial Bus (USB) Hub (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Connect: Female Type A 4 Pin To Female Type Mini-B 5 Pin USB 2.0 Adaptor (Rotunda part number CCMUSB-AF-BF5) or equivalent to the USB cable at the USB hub.

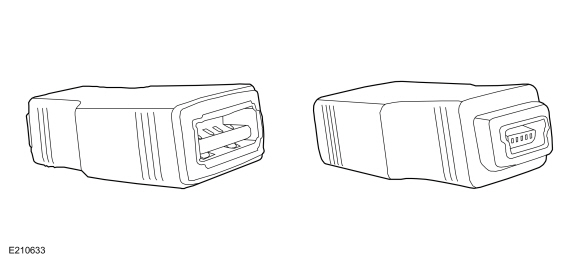

Ignition ON.

Perform an APIM reboot by simultaneously pressing and holding the SEEK UP and POWER buttons on the FCIM for approximately 10 seconds. The touchscreen turns black before the startup sequence begins.

After the reboot is complete, connect the MIT 105-00120 to the USB adaptor.

Select USB mode on the MIT 105-00120.

Operate the audio system in USB mode and observe the audio output.

Is the audio system USB output OK?

Yes

GO to Q15

Q15 ISOLATE THE USB (UNIVERSAL SERIAL BUS) CABLE

Install a new USB cable.
REFER to: SYNC Module [APIM] to Universal Serial Bus (USB) Port Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Perform an APIM reboot by simultaneously pressing and holding the SEEK UP and POWER buttons on the FCIM for approximately 10 seconds. The touchscreen turns black before the startup sequence begins.

After the reboot is complete, connect the MIT 105-00120 to the USB hub.

Select USB mode on the MIT 105-00120.

Operate the audio system in USB mode and observe the audio output.

Is the audio system USB output OK?

Yes

The system is operating correctly at this time. The concern was caused by an inoperative USB cable.

GO to Q16

Q16 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector and related in-line connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connector and related in-line connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW the TSB instructions. If no Technical Service Bulletins (TSBs) address this concern,

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

Normal Operation and Fault Conditions

The 911 Assist feature is used to call for help in the event the airbags are deployed. This only operates when a cellular phone has been successfully paired and actively communicating with the audio system.

If a fault message appers indicating the 911 Assist is not operational, the concern may be caused due to modules not communicating or incorrect PMI procedures.

Possible Sources

911 Assist feature disabled
Network communication concern
Module configuration concern
APIM

PINPOINT TEST R: THE 911 ASSIST NOT OPERATIONAL MESSAGE IS DISPLAYED

R1 CHECK FOR CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)

Ignition ON.

Using a diagnostic scan tool, retrieve the Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Are any Continuous Memory Diagnostic Trouble Codes (CMDTCs) present?

Yes

REFER to the appropriate module DTC Chart in the appropriate section.

GO to R2

R2 CHECK THE 911 ASSIST FEATURE IS ENABLED

Check the 911 Assist feature setting in the display settings menu.

Is the 911 Assist setting enabled?

Yes

GO to R3

No	Enable the 911 Assist feature. INFORM the customer how to enable/disable the feature.

R3 CHECK THE VEHICLE SERVICE HISTORY

CHECK the vehicle service history for recent service actions related to the IPC , RCM and APIM .

Is there any recent service actions with the IPC , RCM or APIM ?

Yes

PERFORM the PMI procedure as directed by the diagnostic scan tool.

GO to R4

R4 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM and any related in-line connectors.

Repair:
- corrosion (install new connectors or terminals - clean module pins)
- damaged or bent pins - install new terminals pins
- pushed-out pins - install new pins as necessary

Reconnect the APIM and any related in-line connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable service articles: TSB , GSB , SSM or FSA .
If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern,

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

Bluetooth Is Inoperative Or Does Not Operate Correctly

Normal Operation and Fault Conditions

REFER to: Information and Entertainment System - System Operation and Component Description (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Description and Operation).
See Bluetooth Mode, SYNC® AppLink™, and SYNC® System.

Possible Sources

Incompatible Bluetooth device
APIM

PINPOINT TEST S: BLUETOOTH IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY

S1 CHECK THE APIM (SYNC MODULE) BLUETOOTH PAIRING CAPABILITY

Connect one of the following to a USB port:
- MIT (420-373 or Rotunda part # 105-00120-GEN2) or later version
- Verification tool equivalent to the MIT (only if the MIT is not available)
- Compatible Bluetooth Device (only if the MIT or equivalent verification tool are not available). REFER to: owner.ford.com/how-tos/sync-technology/all/phone-setup/how-your-device-works-with-sync.html or es.owner.ford.com/how-tos/sync-technology/all/phone-setup/how-your-device-works-with-sync.html

With the MIT , equivalent verification tool, or compatible Bluetooth device in Bluetooth mode, pair it with the APIM . If necessary, follow the device instructions for Bluetooth pairing.

Using a diagnostic scan tool, view the APIM Parameter Identifications (PIDs).

Monitor the Bluetooth device paired PID (BT_PAIR) and the Bluetooth device connected PID (BT_CONN).

Do the Parameter Identifications (PIDs) both read "Yes"?

Yes

GO to S2

GO to S5

S2 PERFORM A MASTER RESET AND RETEST THE CUSTOMER’S DEVICE

NOTE: Performing a Master Reset returns all preference settings to the factory defaults, erases the phone book and call histories, deletes any Bluetooth devices paired with the SYNC® system, and removes any Wi-Fi network connections (cancelling any system update download or installation in progress). For vehicles with navigation, the customer’s saved destinations (home, favorites, and previous) are erased. Perform a Master Reset. For information on how to perform the Master Reset, refer to “Master Reset” in the Owner's Literature.

Pair and connect the customer's Bluetooth device with the APIM . For information on the pairing process, refer to the Owner's Literature.

Using a diagnostic scan tool, view the APIM Parameter Identifications (PIDs).

Monitor the Bluetooth device paired PID (BT_PAIR) and the Bluetooth device connected PID (BT_CONN).

Do the Parameter Identifications (PIDs) both read "Yes"?

Yes

If an individual Bluetooth device feature such as text messaging, Bluetooth media playback or controls, phone book download, call history, or call waiting is inoperative, GO to S3
If individual Bluetooth device features such as text messaging, Bluetooth media playback or controls, phone book download, call history, or call waiting are operating correctly, the system is operating correctly at this time. REVIEW the pairing process with the customer.

No	If the customer's device does not pair or connect, GO to S4

S3 CHECK THE INOPERATIVE BLUETOOTH DEVICE FEATURE

Review the device compatibility list and determine if the inoperative Bluetooth device feature is supported and compatible. REFER to owner.ford.com/how-tos/sync-technology/all/phone-setup/phones-compatible-with-sync.html#?syncGen=sync3&country=us

Is the inoperative Bluetooth device feature supported and compatible?

Yes

GO to S4

No	It is normal operation for unsupported or incompatible Bluetooth features to be unavailable through the SYNC® system.

S4 CHECK THE CUSTOMER’S DEVICE

Advise the customer to power their device off and back on for a simple reboot.

If necessary, advise the customer to remove the battery (if possible) and re-install it for a complete reboot.

If necessary, advise the customer to check their device for updates.

If necessary, advise the customer to delete "SYNC" from the device’s Bluetooth menu prior to attempting to re-pair and re-connect the Bluetooth device with the APIM .

If necessary, the customer can also perform a Master Clear, Master Reset, or Factory Data Reset on their device following the manufacturer's instructions in the device's owner's manual and/or website.

Is the concern still present?

Yes

The fault is with the customer's device.

No	The system is operating correctly at this time. INSTRUCT the customer to review the device compatibility list. REFER to owner.ford.com/how-tos/sync-technology/all/phone-setup/phones-compatible-with-sync.html#?syncGen=sync3&country=us.

S5 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The Audio System Does Not Operate Correctly From The FCIM

Normal Operation and Fault Conditions

REFER to: Information and Entertainment System - System Operation and Component Description (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Description and Operation).
See Accessory Delay Feature, Audio Extended Play, and FCIM .

Possible Source

FCIM

PINPOINT TEST T: THE AUDIO SYSTEM DOES NOT OPERATE CORRECTLY FROM THE FCIM (FRONT CONTROLS INTERFACE MODULE)

T1 CHECK THE FDIM (FRONT DISPLAY INTERFACE MODULE) OPERATION

Ignition ON.

Perform various FDIM touch commands and observe the FDIM operation.

Does the FDIM respond correctly to each touch command?

Yes

GO to T2

No	GO to Pinpoint Test W

T2 VERIFY THAT THE FCIM (FRONT CONTROLS INTERFACE MODULE) AND AUDIO MODULES THAT PERFORM COMMANDS BASED ON FCIM (FRONT CONTROLS INTERFACE MODULE) AUDIO INPUTS PASS THE NETWORK TEST

Using a diagnostic scan tool, perform the network test.

Did the ACM , APIM , and FCIM pass the network test?

Yes

GO to T3

• If the ACM failed the network test,
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).
See The ACM Does Not Respond To The Diagnostic Scan Tool.
• If the APIM failed the network test,
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).
See The APIM Does Not Respond To The Diagnostic Scan Tool.
• If the FCIM failed the network test,
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).
See The FCIM Does Not Respond To The Diagnostic Scan Tool.

T3 TEMPORARILY REMOVE POWER FROM THE AUDIO SYSTEM MODULES AND RECHECK THE FCIM (FRONT CONTROLS INTERFACE MODULE) OPERATION

Ignition OFF.

Disconnect: Negative Battery Cable from the battery post.

Wait for 1 minute.

Connect: Negative Battery Cable to the battery post.

Ignition ON.

Test the FCIM for normal operation.

Does the FCIM operate correctly?

Yes

The FCIM is operating correctly at this time. The concern was corrected by allowing the audio system modules to reset.

GO to T4

T4 RETRIEVE THE ACM (AUDIO FRONT CONTROL MODULE) , APIM (SYNC MODULE) , AND FCIM (FRONT CONTROLS INTERFACE MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the self-test for the following modules:
- ACM
- APIM
- FCIM

Are any Diagnostic Trouble Codes (DTCs) present in the ACM , APIM , or FCIM ?

Yes

• For ACM Diagnostic Trouble Codes (DTCs),
REFER to: Information and Entertainment System (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Diagnosis and Testing).
See DTC Chart: ACM .
• For APIM Diagnostic Trouble Codes (DTCs),
REFER to: Information and Entertainment System (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Diagnosis and Testing).
See DTC Chart: APIM .
• For FCIM Diagnostic Trouble Codes (DTCs),
REFER to: Information and Entertainment System (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Diagnosis and Testing).
See DTC Chart: FCIM .

GO to T5

T5 CHECK FOR CORRECT FCIM (FRONT CONTROLS INTERFACE MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the FCIM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the FCIM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new FCIM .
REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The LH Steering Wheel Switches Are Inoperative Or Do Not Operate Correctly

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B11BA:1C	Steering Wheel Audio Switch Pack: Circuit Voltage Out of Range	Set by the APIM when a short to ground or open is detected on the steering wheel switch circuits.	Continuous and on-demand
B11BA:63	Steering Wheel Audio Switch Pack: Circuit / Component Protection Time-Out	Set by the APIM when the steering wheel switch is stuck for more than 2 minutes during normal operation, or for more than 3 seconds during the self-test.	Continuous and on-demand

Possible Sources

Steering wheel switch
Wiring, terminals, or connectors
Clockspring
APIM

PINPOINT TEST U: THE LH (LEFT-HAND) STEERING WHEEL SWITCHES ARE INOPERATIVE OR DO NOT OPERATE CORRECTLY

U1 CHECK THE LH (LEFT-HAND) STEERING WHEEL SWITCH PARAMETER IDENTIFICATIONS (PIDS)

Ignition ON.

Using a diagnostic scan tool, view the APIM Parameter Identifications (PIDs).

Monitor the steering wheel switch Parameter Identifications (PIDs) while pressing each LH steering wheel switch.
- Voice (SW_VOICE)
- Seek+ (SW_SEEKPLUS)
- Seek– (SW_SEEKMINUS)
- Volume+ (SW_VOLUP)
- Volume- (SW_VOLDOWN)

Do the PID values agree with the switch positions?

Yes

GO to U15

• If one or more, but not all PID values are incorrect or always read one particular switch position, INSTALL a new LH steering wheel switch.
REFER to: Steering Wheel Multifunction Switch (211-05 Steering Wheel and Column Electrical Components, Removal and Installation). • If all PID values are incorrect or always read one particular switch position, GO to U2

U2 CHECK FOR VOLTAGE FROM THE APIM (SYNC MODULE)

WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

Ignition OFF.

Remove the driver airbag.
REFER to: Driver Airbag (501-20B Supplemental Restraint System, Removal and Installation).

Disconnect: LH Steering Wheel Switch C2998.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 C2998-4

Is approximately 5 volts present?

Yes

INSTALL a new LH steering wheel switch.
REFER to: Steering Wheel Multifunction Switch (211-05 Steering Wheel and Column Electrical Components, Removal and Installation).

GO to U3

U3 CHECK THE STEERING WHEEL HARNESS FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: Clockspring C218C.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 Ground

C2998-4 Ground

Is any voltage present?

Yes

INSTALL a new steering wheel.
REFER to: Steering Wheel (211-04 Steering Column, Removal and Installation).

GO to U4

U4 CHECK THE STEERING WHEEL HARNESS FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 Ground

C2998-4 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to U5

No	INSTALL a new steering wheel. REFER to: Steering Wheel (211-04 Steering Column, Removal and Installation).

U5 CHECK THE STEERING WHEEL HARNESS FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 C218C-11

C2998-4 C218C-10

Are the resistances less than 3 ohms?

Yes

GO to U6

No	INSTALL a new steering wheel. REFER to: Steering Wheel (211-04 Steering Column, Removal and Installation).

U6 CHECK THE STEERING WHEEL HARNESS FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 C2998-4

Is the resistance greater than 10,000 ohms?

Yes

GO to U7

No	INSTALL a new steering wheel. REFER to: Steering Wheel (211-04 Steering Column, Removal and Installation).

U7 CHECK THE CLOCKSPRING FOR A SHORT TO VOLTAGE

Connect: Clockspring C218C.

Disconnect: Clockspring C218B.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 Ground

C2998-4 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to U8

U8 CHECK THE CLOCKSPRING FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 Ground

C2998-4 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to U9

No	INSTALL a new clockspring. REFER to: Clockspring (501-20B Supplemental Restraint System, Removal and Installation).

U9 CHECK THE CLOCKSPRING FOR AN OPEN

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C2998-2		C218B-14 (Component Side)
C2998-4		C218B-12 (Component Side)

Are the resistances less than 3 ohms?

Yes

GO to U10

No	INSTALL a new clockspring. REFER to: Clockspring (501-20B Supplemental Restraint System, Removal and Installation).

U10 CHECK THE CLOCKSPRING FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 C2998-4

Is the resistance greater than 10,000 ohms?

Yes

GO to U11

No	INSTALL a new clockspring. REFER to: Clockspring (501-20B Supplemental Restraint System, Removal and Installation).

U11 CHECK THE CIRCUITRY TO THE CLOCKSPRING FOR A SHORT TO VOLTAGE

Connect: Clockspring C218B.

Disconnect: APIM C2383A.

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 Ground

C2998-4 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to U12

U12 CHECK THE CIRCUITRY TO THE CLOCKSPRING FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 Ground

C2998-4 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to U13

No	REPAIR the circuit in question.

U13 CHECK THE CIRCUITRY TO THE CLOCKSPRING FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 C2383A-46

C2998-4 C2383A-47

Are the resistances less than 3 ohms?

Yes

GO to U14

No	REPAIR the circuit in question.

U14 CHECK THE CIRCUITRY TO THE CLOCKSPRING FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2998-2 C2998-4

Is the resistance greater than 10,000 ohms?

Yes

GO to U15

No	REPAIR the circuit in question.

U15 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The CD Player Is Inoperative Or Does Not Operate Correctly

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B1D19:49	Compact Disc Unit: Internal Electronic Failure	Set by the ACM when the internal circuit board cannot communicate with the CD mechanism while in CD mode for more than 28 seconds during normal operation or for more than 5 seconds during the self-test.	Continuous and on-demand
B1D19:4B	Compact Disc Unit: Over Temperature	Set by the ACM when the internal circuit board detects that the CD mechanism exceeds the temperature threshold for more than 1 second while in CD mode.	Continuous

Possible Sources

Misaligned FCIM CD slot to ACM CD slot
CD
ACM

PINPOINT TEST V: THE CD (COMPACT DISC) PLAYER IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY

V1 VERIFY THE FCIM (FRONT CONTROLS INTERFACE MODULE) CD (COMPACT DISC) EJECT BUTTON OPERATION

Ignition ON.

Operate the audio system in CD mode.

Using the FCIM CD EJECT button, attempt to eject the customer's CD.

Does the customer's CD eject?

Yes

GO to V4

No	• If the FCIM EJECT button is responsive, GO to V2 • If the FCIM EJECT button is not responsive, GO to V3

V2 VERIFY THAT THE FCIM (FRONT CONTROLS INTERFACE MODULE) CD (COMPACT DISC) SLOT IS ALIGNED WITH THE ACM (AUDIO FRONT CONTROL MODULE) CD (COMPACT DISC) SLOT

Remove the FCIM, but do not disconnect any electrical connectors.
REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Using the FCIM CD EJECT button, attempt to eject the customer's CD.

Does the customer's CD eject?

Yes

REINSTALL the FCIM and ensure the FCIM CD slot is properly aligned with the ACM CD slot.
REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

GO to V8

V3 VERIFY THE FCIM (FRONT CONTROLS INTERFACE MODULE) CD (COMPACT DISC) EJECT BUTTON TO ACM (AUDIO FRONT CONTROL MODULE) COMMUNICATION BY CHECKING FOR DTC (DIAGNOSTIC TROUBLE CODE) U0256:00 SET IN THE ACM (AUDIO FRONT CONTROL MODULE)

Using a diagnostic scan tool, perform the ACM self-test.

Is DTC U0256:00 set in the ACM ?

Yes

GO to Pinpoint Test AI

No	GO to Pinpoint Test T

V4 VERIFY THE CD (COMPACT DISC) PLAYER OPERATION

Insert a known good CD .

Operate the audio system in CD mode and play an audio file.

Is the audio output OK for the CD player?

Yes

The system is operating correctly at this time. The fault is with the customer's CD (inspect for fingerprints, loose paper label, incorrect format, irregular shape, scratches, or other damage).

GO to V5

V5 CHECK FOR ACM (AUDIO FRONT CONTROL MODULE) DTC (DIAGNOSTIC TROUBLE CODE) B1D19:49 OR DTC (DIAGNOSTIC TROUBLE CODE) B1D19:4B

With the audio system still in CD mode, perform the ACM self-test using a diagnostic scan tool.

Is DTC B1D19:49 or DTC B1D19:4B set in the ACM ?

Yes

If B1D19:49 is present, GO to V6
If B1D19:4B is present, the system is operating correctly at this time. The concern may have been caused by extended CD player use. Audio operation can resume after the ACM cools. Clear the DTC .

GO to V8

V6 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) B1D19:49

Ignition ON.

Using a diagnostic scan tool, clear the ACM Diagnostic Trouble Codes (DTCs).

Ignition OFF.

Ignition ON.

Wait at least 5 seconds.

With the audio system still in CD mode, repeat the ACM self-test using a diagnostic scan tool.

Is DTC B1D19:49 set in the ACM ?

Yes

GO to V8

GO to V7

V7 RECHECK FOR PROPER CD (COMPACT DISC) PLAYER OPERATION

Operate the audio system in CD mode and play an audio file.

Is the audio output OK for the CD player?

Yes

The system is operating correctly at this time. The concern was corrected by performing the ACM self-test, which cold boots the module.

GO to V8

V8 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The FDIM Is Inoperative Or Does Not Operate Correctly

Normal Operation and Fault Conditions

NOTE: The FDIM display calibrates after each ignition cycle. Touching the display during an ignition cycle can cause the touchscreen to be inoperative.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B108E:01	Display: General Electrical Failure	Set by the APIM when an internal connection concern or internal L CD panel concern is detected in the FDIM .	Continuous
B108E:12	Display: Circuit Short To Battery	Despite the DTC description, this DTC is set by the APIM when an open is detected on the LVDS cable.	Continuous
B108E:63	Display: Circuit / Component Protection Time-Out	Set by the APIM when the FDIM detects a touch input for more than 2 minutes during normal operation.	Continuous
U0162:00	Lost Communication With Navigation Display Module: No Sub Type Information	Set by the APIM when communication is missing from the FDIM for more than 1 second with the ignition in RUN.	Continuous and on-demand

Possible Sources

LVDS cable
FDIM
Object pressed against the FDIM touchscreen
APIM

PINPOINT TEST W: THE FDIM (FRONT DISPLAY INTERFACE MODULE) IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY

W1 REBOOT THE APIM (SYNC MODULE) AND RECHECK THE SYSTEM OPERATION

Ignition ON.

Simultaneously press and hold the SEEK UP and POWER buttons on the FCIM for 10 seconds. As the APIM reboot begins, the touchscreen turns black before the startup sequence begins.

After the reboot is complete, operate the system to verify if the concern is still present.

Is the concern still present?

Yes

• If the FDIM is blank or black, GO to W8
• If the image shown on the FDIM is incorrect, the image color is incorrect, or the image is distorted, flickering, or unclear, GO to W6
• If the FDIM is frozen, GO to W2
• If the FDIM is unresponsive to touch, GO to W2
• If the touchscreen is slow to respond, GO to W4
• For all other concerns, GO to W8

No	The system is operating correctly at this time. VERIFY the customer's specific concern by duplicating the steps that were taken when the original concern was generated.

W2 CHECK FOR THE AUDIO SYSTEM VOLUME POP-UP ON THE FDIM (FRONT DISPLAY INTERFACE MODULE) WHILE ADJUSTING THE AUDIO SYSTEM VOLUME

Operate the audio system in AM / FM mode.

Observe the FDIM while adjusting the audio system volume up and down.

Does the FDIM display the audio system volume pop-up when the volume is adjusted up and down?

Yes

• If the volume pop-up is displayed and the audio system output volume responds, GO to W3
• If the volume pop-up is displayed but no sound is heard, REFER to the symptom charts in this section to diagnose the inoperative audio system feature(s). For more information on specific audio system features and outputs,
REFER to: Information and Entertainment System - System Operation and Component Description (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Description and Operation).

GO to W5

W3 INSPECT THE DISPLAY FOR CRACKS

Ignition OFF.

Remove the FCIM .
REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

NOTE: Minor cracks on the display can cause touch concerns. Carefully inspect the FDIM screen for cracks. The RGB Pixel Test and Display Test Pattern functions available through APIM Bezel Diagnostics can be used to assist in the inspection.
REFER to: Bezel Diagnostics (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, General Procedures).

Are any cracks present on the FDIM display?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

GO to W4

W4 CONFIRM THE FDIM (FRONT DISPLAY INTERFACE MODULE) TOUCH RESPONSE

Access Bezel Diagnostics.
REFER to: Bezel Diagnostics (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, General Procedures).

After initiating the Touchscreen Activation Test, touch several points around the display and observe the display touch response. The most recent touch point is indicated by a blue box and prior touch points are indicated by white boxes.

Does the FDIM correctly respond to each touch point?

Yes

• If the touchscreen responds correctly, the system is operating correctly at this time. VERIFY the customer's specific concern by duplicating the steps that were taken when the original concern was generated.
• If the touchscreen responds slowly, GO to W5

No	• If the touchscreen does not respond or responds incorrectly, GO to W13 • If the Touchscreen Activation Test cannot be accessed, GO to W13

W5 TEMPORARILY REMOVE THE POWER FROM THE APIM (SYNC MODULE) AND RECHECK THE SYSTEM OPERATION

Ignition OFF.

Disconnect: Negative Battery Cable from the battery post.

Wait for 1 minute.

Connect: Negative Battery Cable to the battery post.

Ignition ON.

Test the system to verify the concern is still present.

Is the concern still present?

Yes

GO to W15

No	The system is operating correctly at this time. VERIFY the customer's specific concern by duplicating the steps that were taken when the original concern was generated.

W6 INSPECT THE FDIM (FRONT DISPLAY INTERFACE MODULE) IMAGE CLARITY

Access Bezel Diagnostics.
REFER to: Bezel Diagnostics (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, General Procedures).

While using the RGB Pixel Test and Display Test Pattern functions, inspect the display image quality.

Is the image quality concern present when using the RGB Pixel Test and Display Test Pattern functions?

Yes

GO to W7

No	The system is operating correctly at this time. VERIFY the customer's specific concern by duplicating the steps that were taken when the original concern was generated.

W7 TEMPORARILY REMOVE THE POWER FROM THE APIM (SYNC MODULE) AND RECHECK THE SYSTEM OPERATION

Ignition OFF.

Disconnect: Negative Battery Cable from the battery post.

Wait for 1 minute.

Connect: Negative Battery Cable to the battery post.

Ignition ON.

Test the system to verify the concern is still present.

Is the concern still present?

Yes

GO to W11

No	The system is operating correctly at this time. VERIFY the customer's specific concern by duplicating the steps that were taken when the original concern was generated.

W8 VERIFY THE APIM (SYNC MODULE) IGNITION STATE PID (PARAMETER IDENTIFICATION)

Using a diagnostic scan tool, view the APIM Parameter Identifications (PIDs).

Monitor the Ignition State PID (KEYPOS).

Ignition OFF.

Ignition ON.

Does the PID value match the actual switch positions?

Yes

GO to W10

GO to W9

W9 CHECK FOR CORRECT IPC (INSTRUMENT PANEL CLUSTER) OPERATION

Ignition OFF.

Ignition ON.

Inspect the IPC for correct operation. For indicator prove-out information,
REFER to: Instrument Panel Cluster (IPC) - Overview (413-01 Instrumentation, Message Center and Warning Chimes, Description and Operation).
See: Prove-Out.

Does the IPC operate correctly?

Yes

REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).
See: The APIM Does Not Respond To The Diagnostic Scan Tool.

No	DIAGNOSE the IPC . REFER to: Instrumentation, Message Center and Warning Chimes (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing).

W10 VERIFY THAT THE HS-CAN3 (HIGH-SPEED CONTROLLER AREA NETWORK 3) MODULES PASS THE NETWORK TEST

NOTE: A concern with the HS-CAN3 will cause the FDIM touchscreen to be blank.

Using a diagnostic scan tool, perform the network test.

Did the ACM , APIM , and IPC pass the network test?

Yes

GO to W11

No	REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

W11 CHECK THE LVDS (LOW VOLTAGE DIFFERENTIAL SIGNALING) CABLE FOR AN OPEN

Ignition OFF.

Disconnect: APIM C2383D.

Disconnect: FDIM C2253.

Using the male Flex Probe 300-08057 (.5mm) or equivalent, measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C2383D-1		C2253-4
C2383D-2		C2253-3
C2383D-3		C2253-2
C2383D-4		C2253-1
C2383D-Shield		C2253-Shield

Are the resistances less than 3 ohms?

Yes

GO to W12

INSTALL a new LVDS cable.
REFER to: SYNC Module [APIM] to Front Display Interface Module (FDIM) Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).
After installing a new cable, REBOOT the APIM by simultaneously pressing and holding the SEEK UP and POWER buttons on the FCIM for 10 seconds, and VERIFY touchscreen operation.

W12 CHECK FOR CORRECT VOLTAGE OUTPUT FROM THE APIM (SYNC MODULE) TO THE FDIM (FRONT DISPLAY INTERFACE MODULE)

Ignition OFF.

Connect: APIM C2383D.

Ignition ON.

Using the male Flex Probe 300-08057 (.5 mm) or equivalent, measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C2253-3		Ground (ensure that the LVDS cable ground is not used for this measurement)

Is the voltage greater than 11 volts?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

GO to W15

W13 TEMPORARILY REMOVE THE POWER FROM THE APIM (SYNC MODULE) AND RECHECK THE SYSTEM OPERATION

Ignition OFF.

Disconnect: Negative Battery Cable from the battery post.

Wait for 1 minute.

Connect: Negative Battery Cable to the battery post.

Ignition ON.

Test the system to verify the concern is still present.

Is the concern still present?

Yes

GO to W14

No	The system is operating correctly at this time. VERIFY the customer's specific concern by duplicating the steps that were taken when the original concern was generated.

W14 REMOVE THE FCIM (FRONT CONTROLS INTERFACE MODULE) AND RECHECK THE FDIM (FRONT DISPLAY INTERFACE MODULE) TOUCH RESPONSE

NOTE: The FDIM can only sense one touch command at a time. If any objects are pressed against the touchscreen (including wiring or components behind the trim panel surrounding the FDIM ), the FDIM can appear to be inoperative.

Remove the FCIM , but do not disconnect any electrical connectors.
REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Access Bezel Diagnostics.
REFER to: Bezel Diagnostics (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, General Procedures).

After initiating the Touchscreen Activation Test, touch several points around the display and observe the display touch response. The most recent touch point is indicated by a blue box and prior touch points are indicated by white boxes.

Does the FDIM respond correctly to each touch point?

Yes

The FDIM is operating correctly at this time. REINSTALL the FCIM and ensure the FDIM opening is properly aligned with the FDIM and that no objects are in contact with the FDIM touchscreen.

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

W15 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The FDIM Changes Brightness

Normal Operation and Fault Conditions

The FDIM display brightness can be automatically or manually adjusted. Automatic adjustment relies on the illumination dimming level message sent from the BCM to the APIM .

Possible Sources

Customer setting
Instrument panel backlighting system concern
Communication concern
LVDS cable
FDIM
APIM

PINPOINT TEST X: THE FDIM (FRONT DISPLAY INTERFACE MODULE) CHANGES BRIGHTNESS

X1 VERIFY THE DISPLAY BRIGHTNESS CONCERN IS NOT CAUSED BY SYSTEM SETTINGS

Using the touchscreen, review the display dimming settings under Settings>Display.

Test the system to verify the concern present and not caused by a display brightness setting, such as Auto Dim turned ON or OFF.

Is a concern present that is NOT caused by the display brightness settings?

Yes

GO to X2

No	REVIEW the display brightness settings and system operation with the customer.

X2 REBOOT THE APIM (SYNC MODULE) AND RECHECK THE SYSTEM OPERATION

Ignition ON.

Simultaneously press and hold the SEEK UP and POWER buttons on the FCIM for 10 seconds. As the APIM reboot begins, the touchscreen turns black before the startup sequence begins.

After the reboot is complete, operate the system to verify if the concern is still present.

Is the concern still present?

Yes

GO to X3

No	The system is operating correctly at this time. VERIFY the customer's specific concern by duplicating the conditions present when the original concern was generated.

X3 VERIFY OPERATION OF THE NETWORKED INSTRUMENT PANEL BACKLIGHTING SOURCES

Illuminate the ambient light sensor to simulate daytime lighting conditions.

While adjusting the instrument panel backlighting intensity up and down, inspect the FCIM and IPC .

Cover the ambient light sensor to simulate nighttime lighting conditions.

While adjusting the instrument panel backlighting intensity up and down, inspect the FCIM and IPC .

Does the instrument panel backlighting operate correctly?

Yes

GO to X4

No	REFER to: Instrument Panel and Interior Switches Illumination (413-00 Instrument Panel and Interior Switches Illumination, Diagnosis and Testing).

X4 VERIFY THAT THE APIM (SYNC MODULE) , IPC (INSTRUMENT PANEL CLUSTER) , AND BCM (BODY CONTROL MODULE) PASS THE NETWORK TEST

Using a diagnostic scan tool, perform the network test.

Did the APIM , IPC , and BCM pass the network test?

Yes

GO to X5

No	REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

X5 CHECK THE APIM (SYNC MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)

Using a diagnostic scan tool, retrieve the APIM Continuous Memory Diagnostic Trouble Codes (CMDTCs)

Are any Continuous Memory Diagnostic Trouble Codes (CMDTCs) present?

Yes

REFER to the APIM DTC Chart in this section.

GO to X6

X6 TEMPORARILY REMOVE THE POWER FROM THE APIM (SYNC MODULE) AND RECHECK THE SYSTEM OPERATION

Ignition OFF.

Disconnect: Negative Battery Cable from the battery post.

Wait for 1 minute.

Connect: Negative Battery Cable to the battery post.

Ignition ON.

Test the system to verify the concern is still present.

Is the concern still present?

Yes

GO to X7

No	The system is operating correctly at this time. VERIFY the customer's specific concern by duplicating the steps that were taken when the original concern was generated.

X7 CHECK THE LVDS (LOW VOLTAGE DIFFERENTIAL SIGNALING) CABLE FOR AN OPEN

Ignition OFF.

Disconnect: APIM C2383D.

Disconnect: FDIM C2253.

Using the male Flex Probe 300-08057 (.5mm) or equivalent, measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C2383D-1		C2253-4
C2383D-2		C2253-3
C2383D-3		C2253-2
C2383D-4		C2253-1
C2383D-Shield		C2253-Shield

Are the resistances less than 3 ohms?

Yes

GO to X8

No	INSTALL a new LVDS cable. REFER to: SYNC Module [APIM] to Front Display Interface Module (FDIM) Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

X8 CHECK FOR CORRECT VOLTAGE OUTPUT FROM THE APIM (SYNC MODULE) TO THE FDIM (FRONT DISPLAY INTERFACE MODULE)

Ignition OFF.

Connect: APIM C2383D.

Ignition ON.

Using the male Flex Probe 300-08057 (.5mm) or equivalent and the multimeter mV DC range setting, measure the following: (if necessary, refer to the multimeter's owner's manual for information on how to access the mV range)
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C2253-3		Ground (ensure that the LVDS cable ground is not used for this measurement)

Is the DC voltage between .5 and 10 millivolts?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

GO to X9

X9 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

Navigation Is Inoperative Or Does Not Operate Correctly - If Equipped

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B119F:01	GPS Antenna: General Electrical Failure	Set by the APIM when a short to ground or short to battery voltage is detected on the GPS coaxial cable between the APIM and satellite radio/ GPS splitter for more than 250 milliseconds.	Continuous
B119F:13	GPS Antenna: Circuit Open	Set by the APIM when an open is detected on the GPS coaxial cable between the APIM and satellite radio/ GPS splitter for more than 250 milliseconds.	Continuous
B1A89:11	Satellite Antenna: Circuit Short To Ground	Set by the ACM when a short to ground is detected for more than 1 second on any of the following: Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter Satellite radio/GPS splitter Rear satellite radio/GPS coaxial cable Antenna	Continuous and on-demand
B1A89:13	Satellite Antenna: Circuit Open	Set by the ACM when an open is detected for more 250 milliseconds on any of the following: Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter Satellite radio/GPS splitter Rear satellite radio/GPS coaxial cable Antenna	Continuous and on-demand
U1A00:87	Private Communication Network: Missing Message	Set by the APIM when it sends a request over the HS-CAN3 to the ACM and does not receive a valid response from the ACM on the SDL circuits in five seconds with at least three retries, or if there is a fault which would prevent data from being transmitted through any of the following: Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter Satellite radio/GPS splitter Rear satellite radio/GPS coaxial cable Antenna	On-demand

Possible Sources

Obstructions in the GPS antenna's line of sight
GPS coaxial cable between the APIM and satellite radio/ GPS splitter
Satellite radio/GPS splitter
Rear satellite radio/GPS coaxial cable
AM / FM /satellite radio/ GPS antenna
Corrosion
ACM
APIM

PINPOINT TEST Y: NAVIGATION IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY - IF EQUIPPED

Y1 CHECK THE GPS (GLOBAL POSITIONING SYSTEM) ANTENNA RECEPTION

Ignition ON.

Access Bezel Diagnostics.
REFER to: Bezel Diagnostics (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, General Procedures).

Monitor the "Number of Satellites" and "Fix Mode" in APIM Location Information.

If the values read less than 3 for "Number of Satellites" or "No GPS Fix" for "Fix Mode," drive the vehicle to an outdoor location that is free from obstacles such as tall buildings or large trees until at least 3 satellites are listed for "Number of Satellites" and "3D" is listed for "Fix Mode."

Can 3 or more satellites and a 3D fix be obtained?

Yes

GO to Y2

GO to Y4

Y2 CHECK NAVIGATION FOR CORRECT OPERATION

Operate various navigation features (including a short, guided route) and observe their functionality.

Does navigation operate correctly?

Yes

The system is operating correctly at this time. The concern was a result of obstructions in the antenna's line of sight for an extended period of time.

GO to Y3

Y3 CHECK FOR ABS (ANTI-LOCK BRAKE SYSTEM) MODULE TO APIM (SYNC MODULE) COMMUNICATION OF THE WHEEL SPEED AND WHEEL ROTATION DIRECTION INFORMATION

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0121:00 set in the APIM ?

Yes

GO to Y22

Y4 CHECK THE GPS (GLOBAL POSITIONING SYSTEM) COAXIAL CABLE FOR A SHORT TO VOLTAGE, SHORT TO GROUND, OR OPEN

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B119F:01 or DTC B119F:13 set in the APIM ?

Yes

GO to Y5

GO to Y6

Y5 CHECK FOR CORRECT APIM (SYNC MODULE) OUTPUT VOLTAGE FROM THE GPS (GLOBAL POSITIONING SYSTEM) COAXIAL CABLE CONNECTION

Ignition OFF.

Disconnect: GPS Coaxial Cable from the APIM .

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

GPS coaxial cable core at the APIM (component side) Ground

Is the voltage between 4.7 and 5.8 volts?

Yes

GO to Y22

Y6 CHECK FOR ACM (AUDIO FRONT CONTROL MODULE) DTC (DIAGNOSTIC TROUBLE CODE) B1A89:11 OR DTC (DIAGNOSTIC TROUBLE CODE) B1A89:13

Ignition ON.

Using a diagnostic scan tool, clear the ACM Diagnostic Trouble Codes (DTCs).

Using a diagnostic scan tool, perform the ACM self-test.

Is DTC B1A89:11 or DTC B1A89:13 set in the ACM ?

Yes

GO to Y7

GO to Y22

Y7 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OUTPUT VOLTAGE FROM THE SATELLITE RADIO COAXIAL CABLE CONNECTION

Ignition OFF.

Disconnect: Satellite radio antenna coaxial cable from the ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM (component side)		Ground

Is the voltage between 4.4 and 5.5 volts?

Yes

GO to Y8

GO to Y21

Y8 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: Satellite radio antenna coaxial cable from the ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Disconnect: Satellite radio/GPS antenna inline coaxial cable connection behind the RH lower cowl trim panel.
REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

GO to Y9

Y9 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to Y10

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Y10 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio coaxial cable core at the ACM		Front satellite radio/GPS antenna coaxial cable core at the inline connection
Satellite radio antenna coaxial cable shield at the ACM		Front satellite radio/GPS antenna coaxial cable shield at the inline connection

Are the resistances less than 1 ohm?

Yes

GO to Y11

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Y11 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to Y12

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Y12 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Connect: Satellite radio/GPS antenna inline coaxial cable connection behind the RH lower cowl trim panel.

Disconnect: Satellite radio/GPS antenna coaxial cable from the antenna unit.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

GO to Y13

Y13 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to Y14

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Y14 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio/GPS antenna coaxial cable core at the antenna unit (harness side)
Satellite radio antenna coaxial cable shield at the ACM		Satellite radio/GPS antenna coaxial cable shield at the antenna unit (harness side)

Are the resistances less than 1 ohm?

Yes

GO to Y15

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Y15 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to Y16

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Y16 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Connect: Satellite radio/GPS antenna coaxial cable to the antenna unit.

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

GO to Y17

Y17 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to Y18

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Y18 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE AND SHIELD FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to Y19

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Y19 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT SHIELD FOR CONTINUITY TO GROUND

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio/GPS antenna coaxial cable shield at the antenna unit (component side)		Ground

Is the resistance less than 1 ohm?

Yes

GO to Y22

GO to Y20

Y20 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT SHIELD FOR CONTINUITY TO ANTENNA UNIT BASE

Remove the AM / FM /satellite radio/ GPS antenna.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio/GPS antenna coaxial cable shield at the antenna unit (component side)		Satellite radio/GPS antenna base (unpainted surface)

Is the resistance less than 1 ohm?

Yes

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Y21 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

Y22 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

The Compass Is Inoperative Or Does Not Operate Correctly

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
B119F:01	GPS Antenna: General Electrical Failure	Set by the APIM when a short to ground or short to battery voltage is detected on the GPS coaxial cable between the APIM and satellite radio/ GPS splitter for more than 250 milliseconds.	Continuous
B119F:13	GPS Antenna: Circuit Open	Set by the APIM when an open is detected on the GPS coaxial cable between the APIM and satellite radio/ GPS splitter for more than 250 milliseconds.	Continuous
B1A89:11	Satellite Antenna: Circuit Short To Ground	Set by the ACM when a short to ground is detected for more than 1 second on any of the following: Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter Satellite radio/GPS splitter Rear satellite radio/GPS coaxial cable Antenna	Continuous and on-demand
B1A89:13	Satellite Antenna: Circuit Open	Set by the ACM when an open is detected for more 250 milliseconds on any of the following: Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter Satellite radio/GPS splitter Rear satellite radio/GPS coaxial cable Antenna	Continuous and on-demand
U1A00:87	Private Communication Network: Missing Message	Set by the APIM when it sends a request over the HS-CAN3 to the ACM and does not receive a valid response from the ACM on the SDL circuits in five seconds with at least three retries, or if there is a fault which would prevent data from being transmitted through any of the following: Satellite radio coaxial cable between the ACM and satellite radio/ GPS splitter Satellite radio/GPS splitter Rear satellite radio/GPS coaxial cable Antenna	On-demand

Possible Sources

Obstructions in the GPS antenna's line of sight
GPS coaxial cable between the APIM and satellite radio/ GPS splitter
Satellite radio/GPS splitter
Rear satellite radio/GPS coaxial cable
AM / FM /satellite radio/ GPS antenna
Corrosion
ACM
APIM

PINPOINT TEST Z: THE COMPASS IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY

Z1 CHECK THE GPS (GLOBAL POSITIONING SYSTEM) ANTENNA RECEPTION

Ignition ON.

Access Bezel Diagnostics.
REFER to: Bezel Diagnostics (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, General Procedures).

Monitor the "Number of Satellites" and "Fix Mode" in APIM Location Information.

If the values read less than 3 for "Number of Satellites" or "No GPS Fix" for "Fix Mode," drive the vehicle to an outdoor location that is free from obstacles such as tall buildings or large trees until at least 3 satellites are listed for "Number of Satellites" and "3D" is listed for "Fix Mode."

Can 3 or more satellites and a 3D fix be obtained?

Yes

GO to Z2

GO to Z4

Z2 CHECK COMPASS FOR CORRECT OPERATION

Drive the vehicle in different cardinal/ordinal directions and observe the compass operation.

Does the compass operate correctly?

Yes

The system is operating correctly at this time. The concern was a result of obstructions in the antenna's line of sight for an extended period of time.

GO to Z3

Z3 CHECK FOR ABS (ANTI-LOCK BRAKE SYSTEM) MODULE TO APIM (SYNC MODULE) COMMUNICATION OF THE WHEEL SPEED AND WHEEL ROTATION DIRECTION INFORMATION

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0121:00 set in the APIM ?

Yes

GO to Pinpoint Test AA

GO to Z22

Z4 CHECK THE GPS (GLOBAL POSITIONING SYSTEM) COAXIAL CABLE FOR A SHORT TO VOLTAGE, SHORT TO GROUND, OR OPEN

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B119F:01 or DTC B119F:13 set in the APIM ?

Yes

GO to Z5

GO to Z6

Z5 CHECK FOR CORRECT APIM (SYNC MODULE) OUTPUT VOLTAGE FROM THE GPS (GLOBAL POSITIONING SYSTEM) COAXIAL CABLE CONNECTION

Ignition OFF.

Disconnect: GPS Coaxial Cable from the APIM .

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

GPS coaxial cable core at the APIM (component side) Ground

Is the voltage between 4.7 and 5.8 volts?

Yes

GO to Z22

Z6 CHECK FOR ACM (AUDIO FRONT CONTROL MODULE) DTC (DIAGNOSTIC TROUBLE CODE) B1A89:11 OR DTC (DIAGNOSTIC TROUBLE CODE) B1A89:13

Ignition ON.

Using a diagnostic scan tool, clear the ACM Diagnostic Trouble Codes (DTCs).

Using a diagnostic scan tool, perform the ACM self-test.

Is DTC B1A89:11 or DTC B1A89:13 set in the ACM ?

Yes

GO to Z7

GO to Z22

Z7 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OUTPUT VOLTAGE FROM THE SATELLITE RADIO COAXIAL CABLE CONNECTION

Ignition OFF.

Disconnect: Satellite radio antenna coaxial cable from the ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM (component side)		Ground

Is the voltage between 4.4 and 5.5 volts?

Yes

GO to Z8

GO to Z21

Z8 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect: Satellite radio antenna coaxial cable from the ACM .
REFER to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Disconnect: Satellite radio/GPS antenna inline coaxial cable connection behind the RH lower cowl trim panel.
REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

GO to Z9

Z9 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to Z10

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Z10 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio coaxial cable core at the ACM		Front satellite radio/GPS antenna coaxial cable core at the inline connection
Satellite radio antenna coaxial cable shield at the ACM		Front satellite radio/GPS antenna coaxial cable shield at the inline connection

Are the resistances less than 1 ohm?

Yes

GO to Z11

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Z11 CHECK THE FRONT SATELLITE RADIO ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to Z12

No	REPAIR or INSTALL a new satellite radio/GPS splitter/cable assembly. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Z12 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Connect: Satellite radio/GPS antenna inline coaxial cable connection behind the RH lower cowl trim panel.

Disconnect: Satellite radio/GPS antenna coaxial cable from the antenna unit.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

GO to Z13

Z13 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to Z14

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Z14 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio/GPS antenna coaxial cable core at the antenna unit (harness side)
Satellite radio antenna coaxial cable shield at the ACM		Satellite radio/GPS antenna coaxial cable shield at the antenna unit (harness side)

Are the resistances less than 1 ohm?

Yes

GO to Z15

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Z15 CHECK THE REAR SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA COAXIAL CABLE CORE AND SHIELD FOR A SHORT TOGETHER

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to Z16

No	REPAIR or INSTALL a new rear satellite radio/GPS antenna coaxial cable. REFER to: Audio Unit Antenna Cable (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Z16 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE AND SHIELD FOR A SHORT TO VOLTAGE

Ignition OFF.

Connect: Satellite radio/GPS antenna coaxial cable to the antenna unit.

Ignition ON.

Measure:

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Ground
Satellite radio antenna coaxial cable shield at the ACM		Ground

Is any voltage present?

Yes

GO to Z17

Z17 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

Satellite radio antenna coaxial cable core at the ACM Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to Z18

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Z18 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT CORE AND SHIELD FOR A SHORT TOGETHER

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio antenna coaxial cable core at the ACM		Satellite radio antenna coaxial cable shield at the ACM

Is the resistance greater than 10,000 ohms?

Yes

GO to Z19

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Z19 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT SHIELD FOR CONTINUITY TO GROUND

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio/GPS antenna coaxial cable shield at the antenna unit (component side)		Ground

Is the resistance less than 1 ohm?

Yes

GO to Z22

GO to Z20

Z20 CHECK THE SATELLITE RADIO/GPS (GLOBAL POSITIONING SYSTEM) ANTENNA UNIT SHIELD FOR CONTINUITY TO ANTENNA UNIT BASE

Remove the AM / FM /satellite radio/ GPS antenna.
REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
Satellite radio/GPS antenna coaxial cable shield at the antenna unit (component side)		Satellite radio/GPS antenna base (unpainted surface)

Is the resistance less than 1 ohm?

Yes

No	INSTALL a new AM / FM /satellite radio/ GPS antenna. REFER to: Audio Unit Antenna (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

Z21 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

Z22 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

U0121:00

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U0121:00	Lost Communication With Anti-Lock Brake System (ABS) Control Module: No Sub Type Information	Set by the APIM when network messages are missing from the ABS module for more than 5 seconds with the ignition in RUN.	Continuous

Possible Source

ABS module

PINPOINT TEST AA: U0121:00

AA1 VERIFY THE CUSTOMER'S CONCERN

Ignition ON.

Verify if there is an observable symptom present.

Is an observable symptom present?

Yes

GO to AA2

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AA2 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0121:00

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0121:00 set in the APIM ?

Yes

GO to AA3

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AA3 CHECK THE ABS (ANTI-LOCK BRAKE SYSTEM) MODULE FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the BCM self-test.

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the ABS module?

Yes

• For DTC U3003:16,
REFER to: Anti-Lock Brake System (ABS) and Stability Control (206-09 Anti-Lock Brake System (ABS) and Stability Control, Diagnosis and Testing).
See U3003:16.
• For DTC U3003:17,
REFER to: Anti-Lock Brake System (ABS) and Stability Control (206-09 Anti-Lock Brake System (ABS) and Stability Control, Diagnosis and Testing).
See U3003:17.

GO to AA4

AA4 CHECK THE APIM (SYNC MODULE) FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the APIM self-test.

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the APIM ?

Yes

• For DTC U3003:16, GO to Pinpoint Test AJ
• For DTC U3003:17, GO to Pinpoint Test AK

GO to AA5

AA5 CHECK FOR CORRECT ABS (ANTI-LOCK BRAKE SYSTEM) MODULE OPERATION

Ignition OFF.

Disconnect and inspect the ABS module connector.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the ABS module connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, discontinue this test and follow TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new ABS module.
REFER to: Hydraulic Control Unit (HCU) (206-09 Anti-Lock Brake System (ABS) and Stability Control, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

U0140:00

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U0140:00	Lost Communication With Body Control Module: No Sub Type Information	Set by the APIM when network messages are missing from the BCM for more than 5 seconds with the ignition in RUN.	Continuous

Possible Source

PINPOINT TEST AB: U0140:00

AB1 VERIFY THE CUSTOMER'S CONCERN

Ignition ON.

Verify if there is an observable symptom present.

Is an observable symptom present?

Yes

GO to AB2

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AB2 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0140:00

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0140:00 set in the APIM ?

Yes

GO to AB3

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AB3 CHECK THE BCM (BODY CONTROL MODULE) FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the BCM self-test.

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the BCM ?

Yes

• For DTC U3003:16,
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Diagnosis and Testing).
See U3003:16.
• For DTC U3003:17,
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Diagnosis and Testing).
See U3003:17.

GO to AB4

AB4 CHECK THE APIM (SYNC MODULE) FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the APIM self-test.

Are low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the APIM ?

Yes

• For DTC U3003:16, GO to Pinpoint Test AJ
• For DTC U3003:17, GO to Pinpoint Test AK

GO to AB5

AB5 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

U0151:00

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U0151:00	Lost Communication With Restraints Control Module: No Sub Type Information	Set by the APIM when the airbag deployment notification message from the RCM is missing for more than 5 seconds with the ignition in RUN.	Continuous

Possible Source

PINPOINT TEST AC: U0151:00

AC1 VERIFY THE CUSTOMER'S CONCERN

Ignition ON.

Verify there is an observable symptom present.

Is an observable symptom present?

Yes

GO to AC2

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AC2 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0151:00

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0151:00 set in the APIM ?

Yes

GO to AC3

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AC3 CHECK THE RCM (RESTRAINTS CONTROL MODULE) FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the RCM self-test.

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the RCM ?

Yes

For DTC U3003:16 or U3003:17,
REFER to: Pinpoint Test - DTC: FF (501-20B Supplemental Restraint System, Diagnosis and Testing).

GO to AC4

AC4 CHECK THE APIM (SYNC MODULE) FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the APIM self-test.

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the APIM ?

Yes

• For DTC U3003:16, GO to Pinpoint Test AJ
• For DTC U3003:17, GO to Pinpoint Test AK

GO to AC5

AC5 CHECK FOR CORRECT RCM (RESTRAINTS CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the RCM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the RCM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new RCM .
REFER to: Restraints Control Module (RCM) (501-20B Supplemental Restraint System, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

U0155:00

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U0155:00	Lost Communication With IPC Control Module: No Sub Type Information	Set by the ACM , APIM , and Sony® FCIM when network messages are missing from the IPC for more than 5 seconds with the ignition in RUN.	Continuous

Possible Source

PINPOINT TEST AD: U0155:00

AD1 VERIFY THE CUSTOMER'S CONCERN

Ignition ON.

Verify there is an observable symptom present.

Is an observable symptom present?

Yes

GO to AD2

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AD2 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0155:00

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0155:00 set in the ACM , APIM , or Sony® FCIM ?

Yes

GO to AD3

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AD3 CHECK THE IPC (INSTRUMENT PANEL CLUSTER) FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the IPC self-test.

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the IPC ?

Yes

• For DTC U3006:16,
REFER to: Instrumentation, Message Center and Warning Chimes (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing).
See U3006:16.
• For DTC U3006:17,
REFER to: Instrumentation, Message Center and Warning Chimes (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing).
See U3006:17.

GO to AD4

AD4 CHECK FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the self-test for the following modules:
- ACM
- APIM
- Sony® FCIM

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the ACM , APIM , or Sony® FCIM ?

Yes

• For DTC U3003:16, GO to Pinpoint Test AJ
• For DTC U3003:17, GO to Pinpoint Test AK

GO to AD5

AD5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0155:00 SET IN MULTIPLE MODULES

Review the recorded results from the self-test.

Is DTC U0155:00 set in more than one module?

Yes

GO to AD6

• If there is an observable symptom,
REFER to: Information and Entertainment System (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Diagnosis and Testing).
See Symptom Chart.
• If there is no observable symptom, the system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AD6 CHECK FOR CORRECT IPC (INSTRUMENT PANEL CLUSTER) OPERATION

Ignition OFF.

Disconnect and inspect the IPC connector.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the IPC connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

Click here to access Guided Routine (IPC).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

U0155:87

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U0155:87	Lost Communication With Instrument Panel Cluster (IPC) Control Module: Missing Message	Set by the non-branded FCIM when network messages are missing from the IPC for more than 5 seconds with the ignition in RUN.	Continuous

Possible Source

PINPOINT TEST AE: U0155:87

AE1 VERIFY THE CUSTOMER'S CONCERN

Ignition ON.

Verify there is an observable symptom present.

Is an observable symptom present?

Yes

GO to AE2

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AE2 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0155:87

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0155:87 set in the FCIM ?

Yes

GO to AE3

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AE3 CHECK FOR IPC (INSTRUMENT PANEL CLUSTER) BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the IPC self-test.

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the IPC ?

Yes

• For DTC U3003:16,
REFER to: Instrumentation, Message Center and Warning Chimes (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing).
See U3003:16.
• For DTC U3003:17,
REFER to: Instrumentation, Message Center and Warning Chimes (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing).
See U3003:17.

GO to AE4

AE4 CHECK THE FCIM (FRONT CONTROLS INTERFACE MODULE) FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the FCIM self-test.

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the FCIM ?

Yes

• For DTC U3003:16, GO to Pinpoint Test AJ
• For DTC U3003:17, GO to Pinpoint Test AK

GO to AE5

AE5 CHECK FOR CORRECT IPC (INSTRUMENT PANEL CLUSTER) OPERATION

Ignition OFF.

Disconnect and inspect the IPC connector.

Repair:
- corrosion (install new connector or terminals – clean module pins)
- damaged pins - install new terminals/pins
- pushed-out pins (install new pins as necessary)

Reconnect the IPC connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

Click here to access Guided Routine (IPC).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

U0159:00

Normal Operation and Fault Conditions

The PAM is integral to the BCM .

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U0159:00	Lost Communication With Parking Assist Control Module "A": No Sub Type Information	Set by the APIM when network messages are missing from the PAM for more than 5 seconds with the ignition in RUN.	Continuous

Possible Source

PINPOINT TEST AF: U0159:00

AF1 VERIFY THE CUSTOMER'S CONCERN

Ignition ON.

Verify if there is an observable symptom present.

Is an observable symptom present?

Yes

GO to AF2

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AF2 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0159:00

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0159:00 set in the APIM ?

Yes

GO to AF3

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AF3 CHECK THE BCM (BODY CONTROL MODULE) FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the BCM self-test.

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the BCM ?

Yes

• For DTC U3006:16,
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Diagnosis and Testing).
See U3006:16.
• For DTC U3006:17,
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Diagnosis and Testing).
See U3006:17.

GO to AF4

AF4 CHECK THE APIM (SYNC MODULE) FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the APIM self-test.

Are low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the APIM ?

Yes

• For DTC U3003:16, GO to Pinpoint Test AJ
• For DTC U3003:17, GO to Pinpoint Test AK

GO to AF5

AF5 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the BCM connectors.

Repair:
- Corrosion (clean module pins or install new connectors or terminals)
- Damaged or bent pins (install new terminals or pins)
- Pushed-out pins (install new pins as necessary)

Reconnect the BCM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, discontinue this test and follow TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new BCM .
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

U0184:00

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U0184:00	Lost Communication With Radio: No Sub Type Information	Set by the APIM when network messages are missing from the ACM for more than 5 seconds with the ignition in RUN.	Continuous

Possible Source

PINPOINT TEST AG: U0184:00

AG1 VERIFY THE CUSTOMER'S CONCERN

Verify there is an observable symptom present.

Is an observable symptom present?

Yes

GO to AG2

No	The system is operating normally at this time. This DTC may have been set due to high network traffic or an intermittent fault condition.

AG2 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0184:00

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0184:00 set in the APIM ?

Yes

GO to AG3

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AG3 CHECK FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the self-test for the following modules:
- ACM
- APIM

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the ACM or APIM ?

Yes

• For DTC U3003:16, GO to Pinpoint Test AJ
• For DTC U3003:17, GO to Pinpoint Test AK

GO to AG4

AG4 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new ACM .
REFER to: Audio Front Control Module (ACM) (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

U0253:00

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U0253:00	Lost Communication With Accessory Protocol Interface Module: No Sub Type Information	Set by the ACM when network messages are missing from the APIM for more than 5 seconds with the ignition in RUN.	Continuous

Possible Source

APIM

PINPOINT TEST AH: U0253:00

AH1 VERIFY THE CUSTOMER'S CONCERN

Ignition ON.

Verify there is an observable symptom present.

Is an observable symptom present?

Yes

GO to AH2

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AH2 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0253:00

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0253:00 set in the ACM ?

Yes

GO to AH3

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AH3 CHECK FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the self-test for the following modules:
- ACM
- APIM

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the ACM or APIM ?

Yes

• For DTC U3003:16, GO to Pinpoint Test AJ
• For DTC U3003:17, GO to Pinpoint Test AK

GO to AH4

AH4 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

U0256:00

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U0256:00	Lost Communication With Front Controls Interface Module "A": No Sub Type Information	Set by the ACM and APIM when network messages are missing from the FCIM for more than 5 seconds with the ignition in RUN.	Continuous

Possible Source

FCIM

PINPOINT TEST AI: U0256:00

AI1 VERIFY THE CUSTOMER'S CONCERN

Ignition ON.

Verify there is an observable symptom present.

Is an observable symptom present?

Yes

GO to AI2

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AI2 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0256:00

Ignition ON.

Using a diagnostic scan tool, clear all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Ignition OFF.

Ignition ON.

Wait at least 10 seconds.

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0256:00 set in the ACM or APIM ?

Yes

GO to AI3

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AI3 CHECK FOR BATTERY VOLTAGE OUT-OF-RANGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, perform the self-test for the following modules:
- ACM
- APIM
- FCIM

Are any low or high voltage Diagnostic Trouble Codes (DTCs) recorded in the ACM , APIM , or FCIM ?

Yes

• For DTC U3003:16, GO to Pinpoint Test AJ
• For DTC U3003:17, GO to Pinpoint Test AK

GO to AI4

AI4 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0256:00 SET IN MULTIPLE MODULES

Review the recorded results from the self-test.

Is DTC U0256:00 set in both the ACM and the APIM ?

Yes

GO to AI5

• If there is an observable symptom,
REFER to: Information and Entertainment System (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Diagnosis and Testing).
See Symptom Chart.
• If there is no observable symptom, the system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

AI5 CHECK FOR CORRECT FCIM (FRONT CONTROLS INTERFACE MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the FCIM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the FCIM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new FCIM .
REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. Address the root cause of any connector or pin issues.

U3003:16

Refer to Wiring Diagrams Cell 130 for schematic and connector information.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U3003:16	Battery Voltage: Circuit Voltage Below Threshold	Set by the ACM , APIM , and FCIM when the supply voltage falls below 10 volts for at least 10 seconds during normal operation or for more than 250 milliseconds during the self-test.	Continuous and on-demand

Possible Sources

Previous low battery voltage
Wiring, terminals, or connectors
ACM
APIM
FCIM

PINPOINT TEST AJ: U3003:16

AJ1 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U3003:16

Ignition ON.

Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs) for the module in question.

Wait at least 15 seconds.

Using a diagnostic scan tool, repeat the self-test for the module in question.

Is DTC U3003:16 still present?

Yes

GO to AJ2

No	The system is operating correctly at this time. The DTC may have been set due to a previous low battery voltage condition.

AJ2 CHECK FOR CHARGING SYSTEM DIAGNOSTIC TROUBLE CODES (DTCS) IN THE PCM (POWERTRAIN CONTROL MODULE)

Using a diagnostic scan tool, perform the PCM self-test.

Are any voltage-related Diagnostic Trouble Codes (DTCs) set in the PCM ?

Yes

• For DTC P0562 or P0563 set For vehicles with the 1.0L Fox GTDI (90kW/120PS), See PCM DTC Chart.
• For DTC P0562 or P0563 set for vehicles with the 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma,
REFER to: Charging System - 1.6L Duratec-16V Ti-VCT (88kW/120PS) – Sigma (414-00 Charging System - General Information, Diagnosis and Testing).
See PCM DTC Chart.
• For DTC P0562 or P0563 set for vehicles with the 1.6L EcoBoost (132kW/180PS) - Sigma,
REFER to: Charging System - 1.6L EcoBoost (132kW/180PS) – Sigma (414-00 Charging System - General Information, Diagnosis and Testing).
See PCM DTC Chart.

GO to AJ3

AJ3 CHECK THE BATTERY CONDITION AND STATE OF CHARGE

Check the battery condition and verify that the battery is fully charged.
REFER to: Battery (414-01 Battery, Mounting and Cables, Diagnosis and Testing).
See Battery Condition Test.

Is the battery OK and fully charged?

Yes

GO to AJ4

• For vehicles with the 1.0L Fox GTDI (90kW/120PS), See Symptom Chart: Charging System.
• For vehicles with the 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma,
REFER to: Charging System - 1.6L Duratec-16V Ti-VCT (88kW/120PS) – Sigma (414-00 Charging System - General Information, Diagnosis and Testing).
See Symptom Chart: Charging System.
• For vehicles with the 1.6L EcoBoost (132kW/180PS) - Sigma,
REFER to: Charging System - 1.6L EcoBoost (132kW/180PS) – Sigma (414-00 Charging System - General Information, Diagnosis and Testing).
See Symptom Chart: Charging System.

AJ4 CHECK THE SUSPECT MODULE VOLTAGE SUPPLY

Ignition OFF.

Measure and record the voltage at the battery.

Disconnect the audio system module setting DTC U3003:16.

Ignition ON.

Measure the voltage between the module setting DTC U3003:16 and ground.

For the ACM , measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240A-1 Ground

For the APIM , measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2383A-1 Ground

For the FCIM , measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2402-8 Ground

Is the voltage within 0.2 volts of the recorded battery voltage?

Yes

GO to AJ5

No	REPAIR the circuit for high resistance.

AJ5 CHECK THE SUSPECT MODULE GROUND CIRCUIT

Measure the voltage at the suspect module.

For the ACM , measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C240A-1 C240A-13

For the APIM , measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2383A-1 C2383A-37

For the FCIM , measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C2402-8 C2402-5

Is the suspect module voltage greater than 11 volts?

Yes

• For the ACM , GO to AJ6
• For the APIM , GO to AJ7
• For the FCIM , GO to AJ8

No	REPAIR the circuit in question.

AJ6 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new ACM .
REFER to: Audio Front Control Module (ACM) (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

AJ7 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

AJ8 CHECK FOR CORRECT FCIM (FRONT CONTROLS INTERFACE MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the FCIM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the FCIM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new FCIM .
REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. Address the root cause of any connector or pin issues.

U3003:17

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Conditions	DTC Type
U3003:17	Battery Voltage: Circuit Voltage Above Threshold	Set by the ACM , APIM , and FCIM when the supply voltage is more than 15.8 volts for more than 250 milliseconds during normal operation or the self-test.	Continuous and on-demand

Possible Sources

Previous high battery voltage
ACM
APIM
FCIM

PINPOINT TEST AK: U3003:17

AK1 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U3003:17

Ignition ON.

Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs) for the module in question.

Wait at least 10 seconds.

Using a diagnostic scan tool, perform the self-test for the module in question.

Is DTC U3003:17 present?

Yes

GO to AK2

No	The system is operating correctly at this time. The DTC may have been set previously during battery charging or while jump starting the vehicle.

AK2 CHECK FOR HIGH VOLTAGE DIAGNOSTIC TROUBLE CODES (DTCS) SET IN MULTIPLE MODULES

Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Are high voltage Diagnostic Trouble Codes (DTCs) such as B1676, P0563, or U3003:17 set in more than one module?

Yes

• For vehicles with the 1.0L Fox GTDI (90kW/120PS), See Symptom Chart, System voltage high.
• For vehicles with the 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma,
REFER to: Charging System - 1.6L Duratec-16V Ti-VCT (88kW/120PS) – Sigma (414-00 Charging System - General Information, Diagnosis and Testing).
See Symptom Chart, System voltage high.
• For vehicles with the 1.6L EcoBoost (132kW/180PS) - Sigma,
REFER to: Charging System - 1.6L EcoBoost (132kW/180PS) – Sigma (414-00 Charging System - General Information, Diagnosis and Testing).
See Symptom Chart, System voltage high.

GO to AK3

AK3 CHECK THE BATTERY VOLTAGE

Turn off all interior lights, exterior lights, and accessories.

Start and run the engine at approximately 2,000 RPM for 3 minutes while monitoring the battery voltage.

Does the battery voltage rise to 15.5 volts or higher?

Yes

No	• For the ACM , GO to AK4 • For the APIM , GO to AK5 • For the FCIM , GO to AK6

AK4 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION

Ignition OFF.

Disconnect and inspect all the ACM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the ACM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new ACM .
REFER to: Audio Front Control Module (ACM) (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

AK5 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the APIM connector.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the APIM connector. Make sure it seats and latches correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

COMPLETE THE FDRS GUIDED ROUTINE

NOTE: This procedure must be completed using FDRS. Do not clear DTCs until the FDRS procedure has completed.
To complete the diagnosis, navigate to the FDRS Guided Routine tab and carry out the procedure SYNC.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

AK6 CHECK FOR CORRECT FCIM (FRONT CONTROLS INTERFACE MODULE) OPERATION

Ignition OFF.

Disconnect and inspect the FCIM connectors.

Repair:
- corrosion (clean module pins or install new connectors or terminals)
- damaged or bent pins (install new terminals or pins)
- pushed-out pins (install new pins as necessary)

Reconnect the FCIM connectors. Make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new FCIM .
REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. Address the root cause of any connector or pin issues.

Information and Entertainment System - System Operation and Component Description. Description and Operation

System Operation System Diagram Network Message Chart A missing network message is indicated by a U-code DTC and can be the result of intermittent concerns such as damaged wiring or low battery voltage occurrences...

Bezel Diagnostics. General Procedures

Check NOTE: If there is a concern with one of the following components and Bezel Diagnostics cannot be accessed, obtain the module part number or ESN by referencing the label attached to the module...

Other information:

Ford Fiesta 2014 - 2019 Service Manual: Gearshift Lever Boot. Removal and Installation

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: Removal steps in this procedure may contain installation details. Release the clips and remove the instrument panel center finish panel...

Ford Fiesta 2014 - 2019 Service Manual: Front Brake Flexible Hose. Removal and Installation

Removal NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water. NOTICE: Make sure that all openings are sealed. NOTE: Removal steps in this procedure may contain installation details...

Axle. Removal and Installation

Special Tool(s) / General Equipment

Flat Headed Screw Driver Transmission Jack Vehicle/Axle Stands

Removal

NOTICE: Suspension fasteners are critical parts that affect performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Remove the floor console.
Refer to: Floor Console (501-12 Instrum

Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Information and Entertainment System. Diagnosis and Testing

Information and Entertainment System - System Operation and Component Description. Description and Operation

Bezel Diagnostics. General Procedures

Other information:

Ford Fiesta 2014 - 2019 Service Manual: Gearshift Lever Boot. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual: Front Brake Flexible Hose. Removal and Installation

Categories

Axle. Removal and Installation
