Inspection

  1. Check the body to the hood dimensions.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

Adjustment

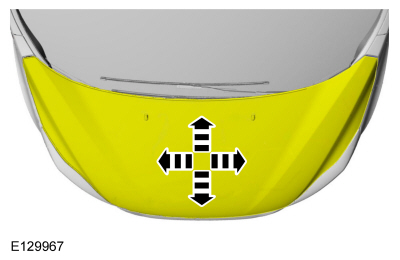

Right/Left and Fore/Aft

  1.

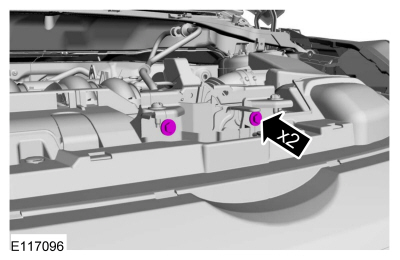

    Loosen the nuts to permit movement of the hood.
    Loosen: 2 turn(s)
  1. Loosen the bolts.
    Loosen: 2 turn(s)
  1. Adjust the hood to specification.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
  1. Tighten the nuts.
    Torque: 106 lb.in (12 Nm)
  1. Tighten the bolts.
    Torque: 80 lb.in (9 Nm)
  1. Check the body to the hood dimensions.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

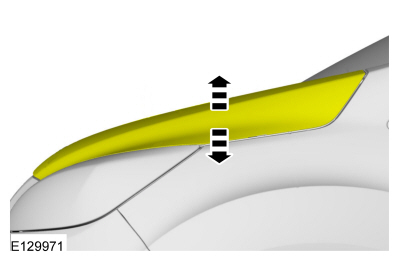

Up/Down

  1. Check the body to the hood dimensions.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

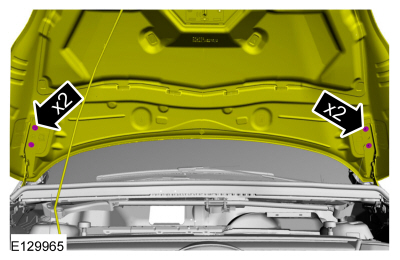

  1. On both sides.
    Loosen the bolts to permit movement of the hood.
    Loosen: 2 turn(s)

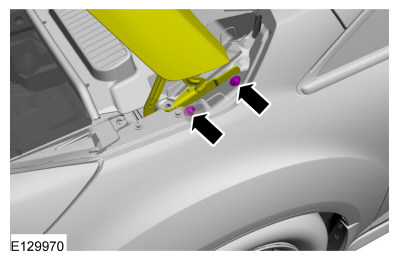

  1. Loosen the bolts.
    Loosen: 2 turn(s)
  1. Adjust the hood to specification.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
  1. On both sides.
    Tighten the bolts.
    Torque: 18 lb.ft (25 Nm)
  1. Tighten the bolts.
    Torque: 80 lb.in (9 Nm)
  1. Check the body to the hood dimensions.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
