Ford Fiesta: Body Closures / Liftgate Alignment. General Procedures

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Body Closures / Liftgate Alignment. General Procedures

Inspection

Check the liftgate to the body dimensions.
Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

Adjustment

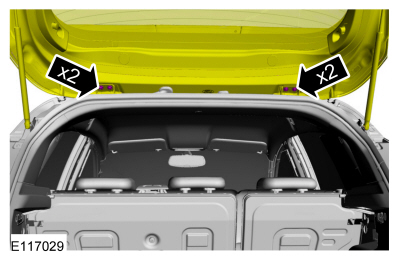

Loosen the bolts to permit movement of the liftgate.
Loosen: 2 turn(s)

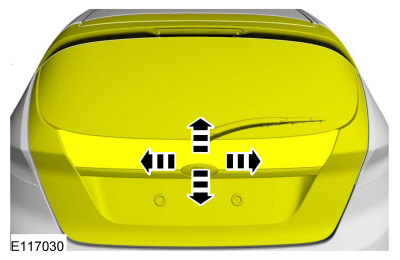

Adjust the liftgate to specification.
Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

Tighten the bolts.
Torque: 97 lb.in (11 Nm)

Rear Door Alignment. General Procedures

Inspection Check the body to the rear door dimensions. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation)...

Hood Alignment. General Procedures

Inspection Check the body to the hood dimensions. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation)...
