Ford Fiesta: Climate Control System - General Information / Cabin Air Filter. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Climate Control System / Climate Control System - General Information / Cabin Air Filter. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the push pin, release the clips and remove the RH floor console trim panel.

Release the retaining tabs and remove the glove compartment.

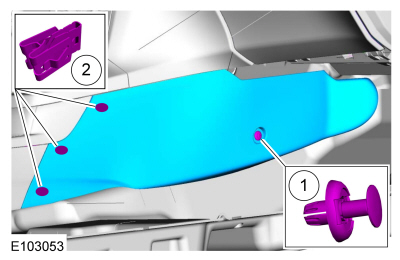

Remove the push pins and the RH insulation panel.

Remove the HVAC duct.

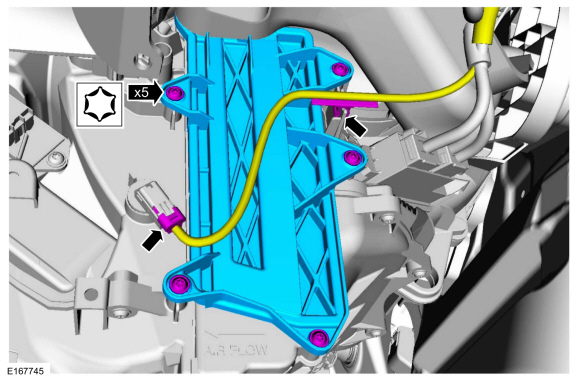

Disconnect the electrical connector, detach the wiring harness retainer and position aside the wiring harness. Remove the retainers and cabin air filter cover.

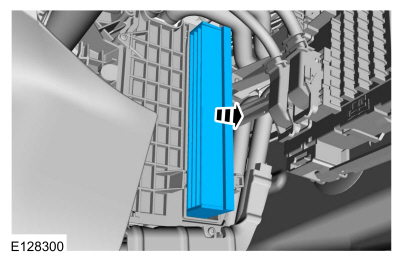

Remove the cabin air filter.

Installation

To install, reverse the removal procedure.
