Ford Fiesta: Climate Control System - General Information / Heater Core Leak Check. General Procedures
Inspection
-
NOTE:
A coolant leak in the heater hose could follow the
heater core tube to the heater core and appear as a leak in the heater
core.
Inspect for evidence of coolant leakage at the heater hose to heater core attachments.
-
NOTE:
Spring-type clamps are installed as original
equipment. Installation and overtightening of nonspecified clamps can
cause leakage at the heater hose connection and damage the heater core.
Check the integrity of the heater hose clamps.
-
Drain the coolant from the cooling system. Refer to
Cooling System Draining, Filling, and Bleeding procedure in Group 303.
-
Disconnect the heater hoses from the heater core.
-
Install a short piece of heater hose, approximately 101 mm (4 in) long on each heater core tube.
-
Fill the heater core and heater hoses with water and
install the plug (221373) and the adapter (221374) from the Pressure
Test Kit. Secure the heater hoses, plug and adapter with hose clamps.
-
Attach the pump and gauge assembly from the Pressure Test Kit to the adapter.
-

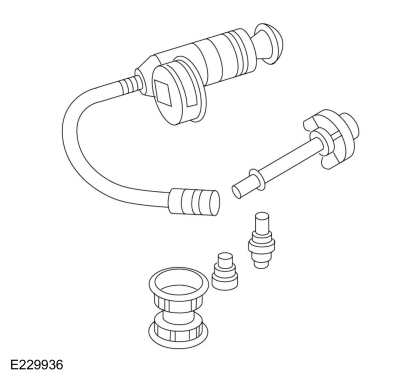

014-R1072 Radiator Pressure Test Set
-
Close the bleed valve at the base of the gauge. Pump 138 kPa (20 psi) of air pressure into the heater core.
-
Observe the pressure gauge for a minimum of 3 minutes.
-
If the pressure drops, check the heater hose connections
to the heater core tubes for leaks. If the heater hoses do not leak,
replace the heater core.
Special Tool(s) /
General Equipment
UV Leak Detector
Electronic Leak Detector
Leak detection
Vehicles with air conditioning
Review next note for important refrigerant system dye information...
Special Tool(s) /
General Equipment
Refrigerant Identification Equipment
Activation
NOTE:
Use Refrigerant Identification Equipment to identify
gas samples taken directly from the refrigeration system or storage
containers prior to recovering or charging the refrigerant system...
