Ford Fiesta: Front Disc Brake / Front Brake Flexible Hose. Removal and Installation
Removal
NOTICE:
If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTICE:
Make sure that all openings are sealed.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-
Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
-

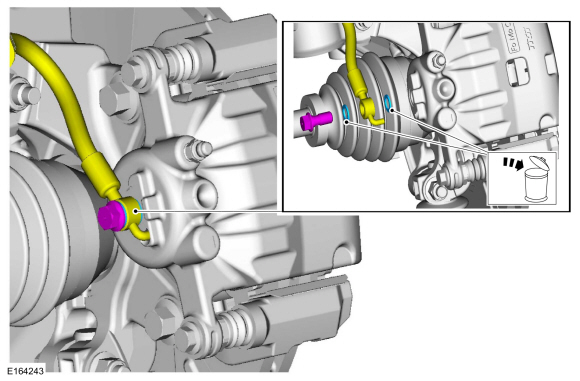

Remove the brake caliper flow bolt and detach the front brake flexible hose. Discard the washers.
Torque:
19 lb.ft (26 Nm)
-
-

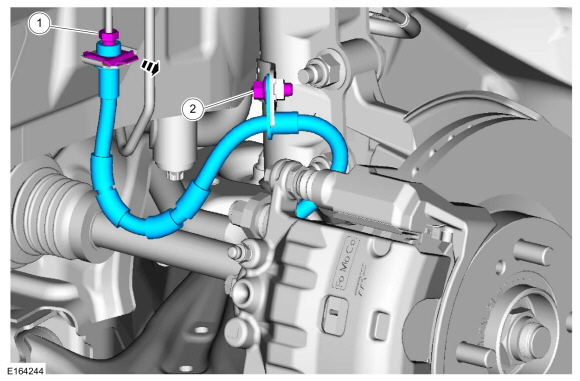

Disconnect the brake tube fitting and remove the clip.
Torque:
159 lb.in (18 Nm)
-
Remove the bolt and the front brake flexible hose.
Torque:
18 lb.ft (25 Nm)
Installation
-
To install, reverse the removal procedure.
-
Bleed the brake system.
Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures).
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the brake disc.
Refer to: Brake Disc (206-03 Front Disc Brake, Removal and Installation)...
