Ford Fiesta: Front Disc Brake / Brake Disc Shield. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Brake System / Front Disc Brake / Brake Disc Shield. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the brake disc.
    Refer to: Brake Disc (206-03 Front Disc Brake, Removal and Installation).

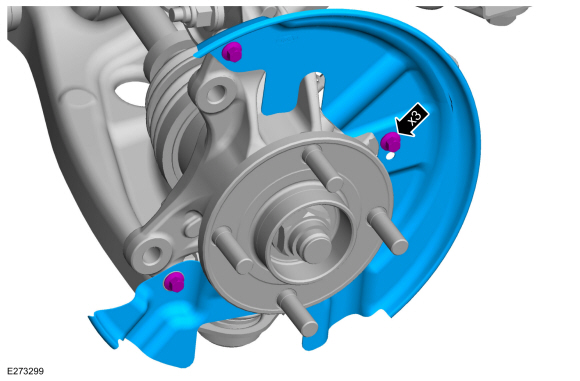

  1. Remove the bolts and the brake disc shield.
    Torque: 80 lb.in (9 Nm)

Installation

  1. To install, reverse the removal procedure.
