Ford Fiesta: Handles, Locks, Latches and Entry Systems / Exterior Front Door Handle. Removal and Installation
Removal
NOTE:
LH side shown, RH side similar.
-

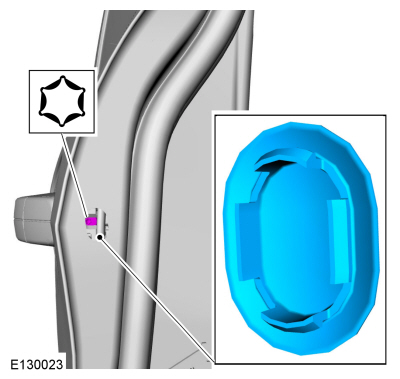

Remove the access plug and loosen the exterior front door handle retaining screw.
-

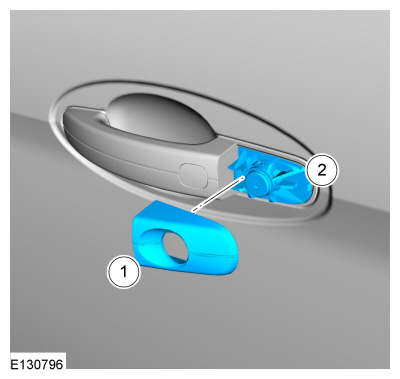

Remove the exterior front door handle cover and if equipped the front door lock cylinder.
-
Remove the exterior front door handle cover.
-
If equipped.
Remove the front door lock cylinder.
Vehicles without keyless entry
-
Remove the exterior front door handle.
-
Pull the exterior front door handle outward.
-
Remove the exterior front door handle.

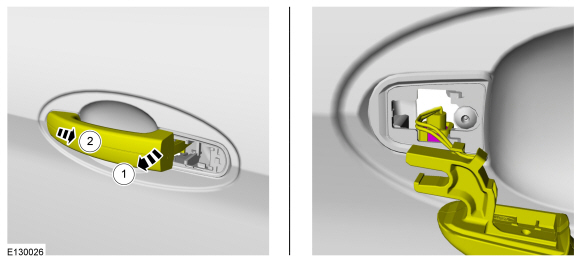

Vehicles with keyless entry
-
Position aside the exterior front door handle.
-
Pull the exterior front door handle outward.
-
Position aside the exterior front door handle.
-
Position the wiring harnass outside the opening to gain access to the electrical connector.
-
NOTE:
Exterior front door handle and exterior front door handle reinforcement shown removed for clarity.

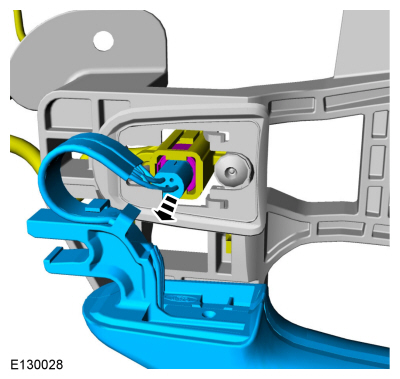

Disconnect the exterior front door handle electrical connector and remove the exterior front door handle.
Installation
-
To install, reverse the removal procedure.
