Ford Fiesta: Handles, Locks, Latches and Entry Systems / Exterior Rear Door Handle. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Exterior Rear Door Handle. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

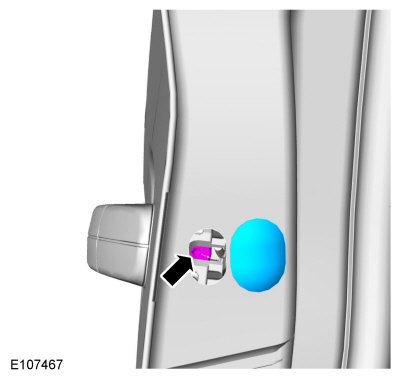

  1. Remove the access plug and loosen the exterior rear door handle retaining screw.

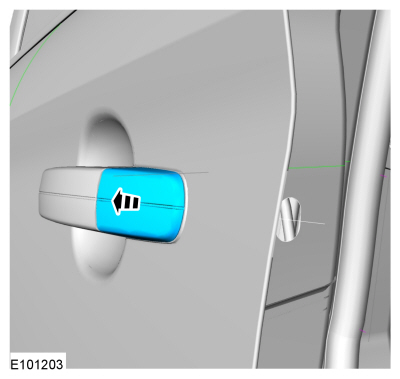

  1. Remove the exterior rear door handle cover.

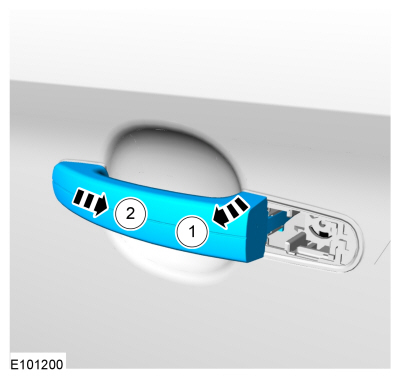

  1. Remove the exterior rear door handle.
    1. Pull the exterior rear door handle outward.
    1. Remove the exterior rear door handle.

Installation

  1. To install, reverse the removal procedure.
