Ford Fiesta: Climate Control System - General Information / Evaporator Temperature Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

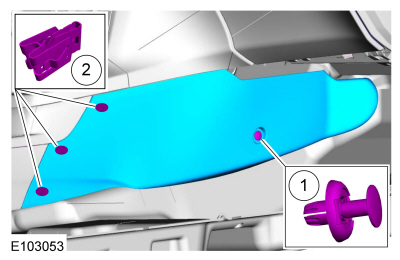

  1. Remove the push pin, release the clips and remove the RH floor console side trim panel.

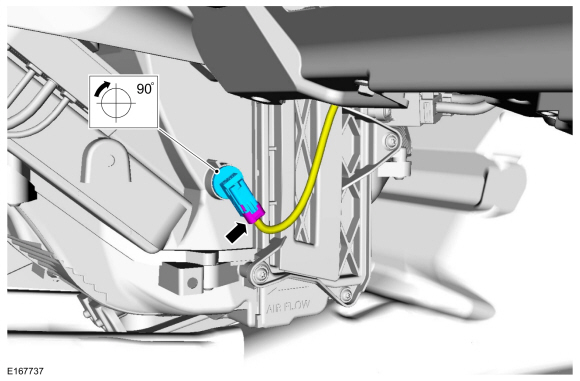

  1. Disconnect the electrical connector and remove the evaporator temperature sensor.

Installation

  1. To install, reverse the removal procedure.
