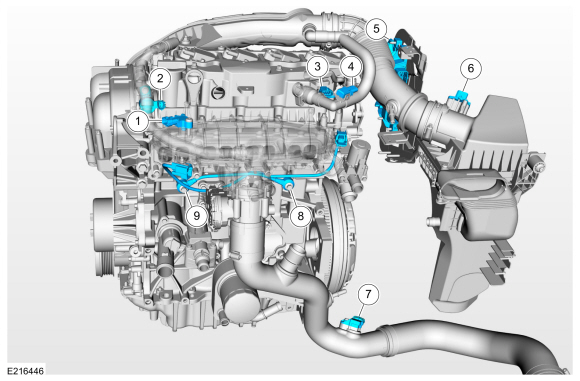

Electronic Engine Controls - LH Side of Engine
| Item | Description |
|---|---|
| 1 | MAP sensor |
| 2 | VCT oil control solenoid |
| 3 | CMP sensor - LH |
| 4 | Crankcase Pressure sensor |
| 5 | PCM |
| 6 | MAF sensor |
| 7 | Turbocharger boost pressure and charge air temperature sensor |
| 8 | Rear KS |
| 9 | Front KS |

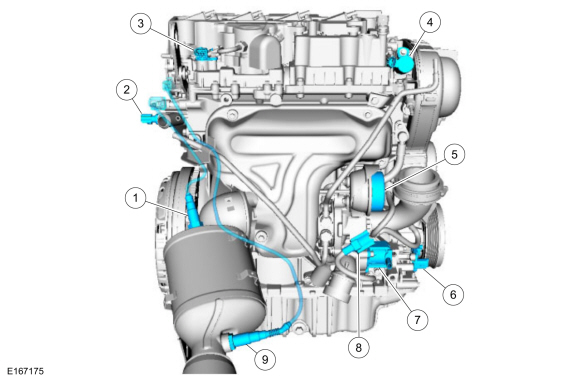

Electronic Engine Controls - RH Side of Engine
| Item | Description |
|---|---|
| 1 | HO2S |
| 2 | ECT sensor |
| 3 | CMP sensor - RH |
| 4 | VCT oil control solenoid |
| 5 | Wastegate acutuator |
| 6 | CKP sensor |
| 7 | Electrically controlled turbocharger bypass valve |
| 8 | Turbocharger bypass valve solenoid |
| 9 | Catalyst monitor sensor |

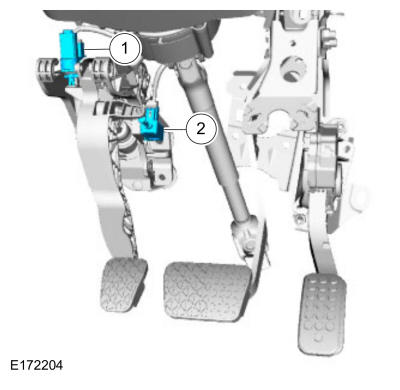

CPP Switches
| Item | Description |
|---|---|
| 1 | CPP switch - top of travel |
| 2 | CPP switch - bottom of travel |
Electronic Engine Controls - Overview. Description and Operation
Overview
The EEC system provides optimum control of the engine through the
enhanced capability of the PCM . The EEC system also has an OBD
monitoring system with features and functions to meet federal
regulations on exhaust emissions...
