Ford Fiesta: Front End Body Panels / Cowl Panel Grille. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Front End Body Panels / Cowl Panel Grille. Removal and Installation

Removal

  1. Remove the windshield wiper pivot arm. Refer to: Windshield Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).

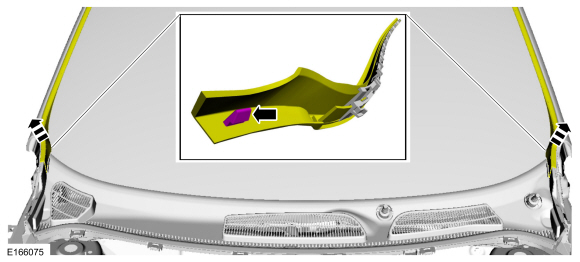

  1. Release the clip and position the weatherstrip aside.

  1. Remove the cowl panel grille.

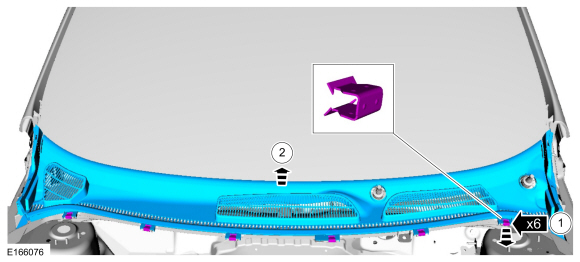

    1. Remove the clips.
    1. Lift the cowl panel grille up and remove.

Installation

  1. To install, reverse the removal procedure.
