Ford Fiesta: Front End Body Panels / Fender. Removal and Installation
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the headlamp assembly.
Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).
-

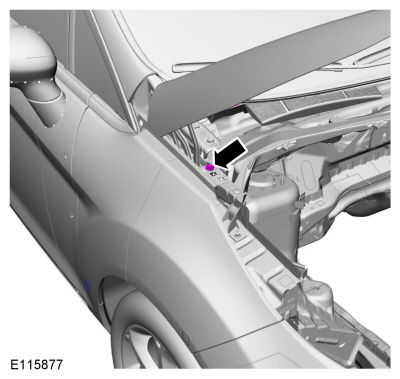

Remove the bolt.
Torque:
53 lb.in (6 Nm)
-

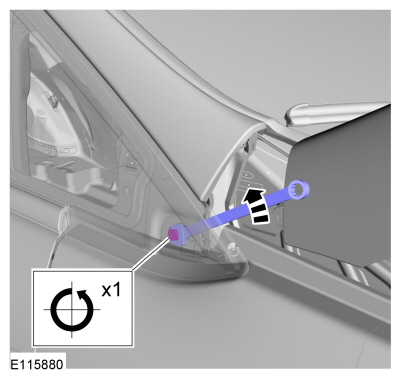

Remove the bolt cover.

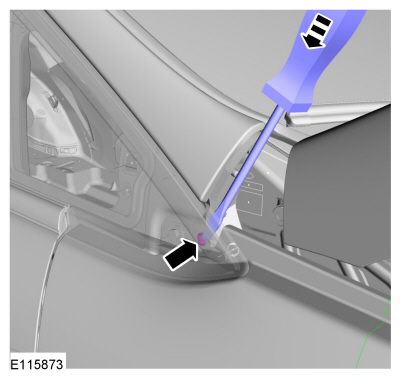

Use the General Equipment: Flat-Bladed Screwdriver
-
Loosen the bolt.
Torque:
53 lb.in (6 Nm)
-
Remove the fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
-

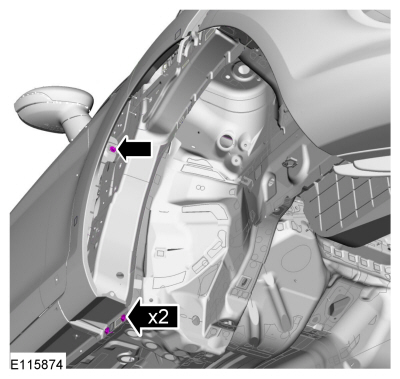

Remove the bolts.
Torque:
53 lb.in (6 Nm)
-

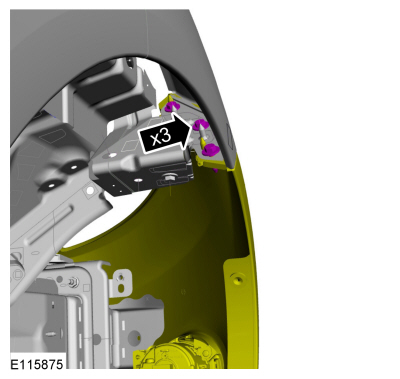

Remove the fender-to-bumper cover bolts.
Torque:
71 lb.in (8 Nm)
-

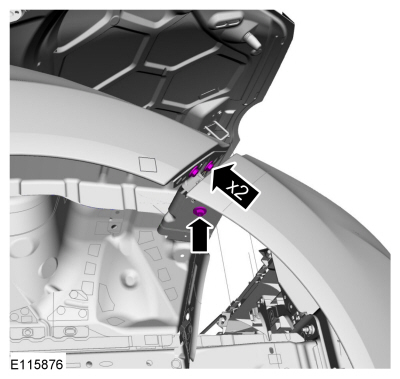

Remove the fender bolts.
Torque:
53 lb.in (6 Nm)
-

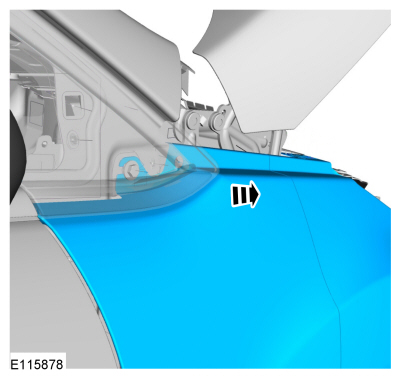

Remove the fender.
Installation
-
To install, reverse the removal procedure.
Removal
Remove the windshield wiper pivot arm.
Refer to: Windshield Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation)...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation)...
