Ford Fiesta: Front End Body Panels / Engine Undershield. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Front End Body Panels / Engine Undershield. Removal and Installation

  1. If equipped.

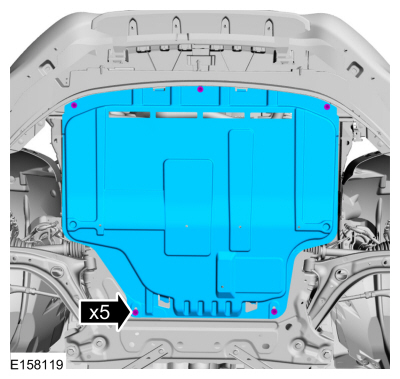

    Remove the bolts and the engine undershield.

    Fender Splash Shield. Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation)...

    Cowl Panel Grille. Removal and Installation

    Removal Remove the windshield wiper pivot arm. Refer to: Windshield Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation)...
