Ford Fiesta: Acceleration Control / Accelerator Pedal. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Fuel System / Acceleration Control / Accelerator Pedal. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

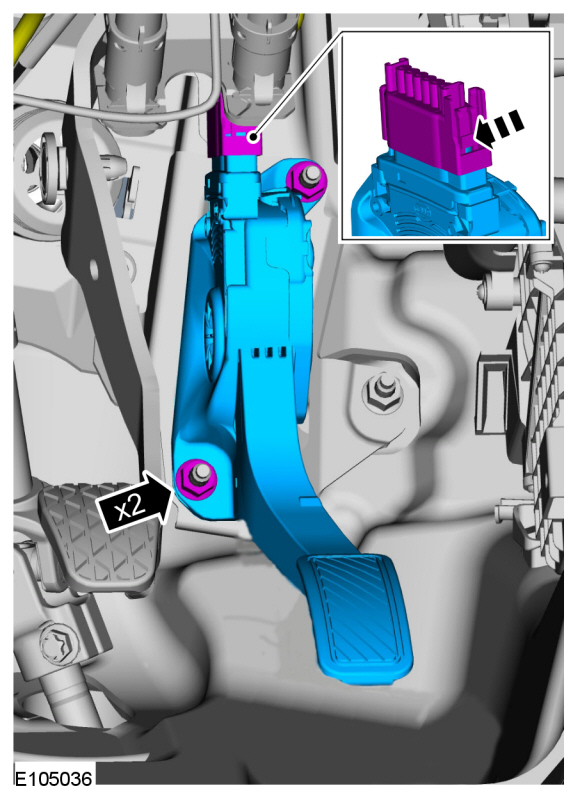

  1. Disconnect the electrical connector. Remove the nuts and the accelerator pedal assembly.
    Torque: 177 lb.in (20 Nm)

Installation

  1. To install, reverse the removal procedure.

    Acceleration Control - Overview. Description and Operation

    Overview The acceleration controls consist of the accelerator pedal and sensor assembly. The throttle is controlled by an APP sensor on the accelerator pedal assembly...
