Ford Fiesta: Wipers and Washers / Windshield Wiper Pivot Arm. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Wipers and Washers / Windshield Wiper Pivot Arm. Removal and Installation

Special Tool(s) / General Equipment

Two Leg Puller

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

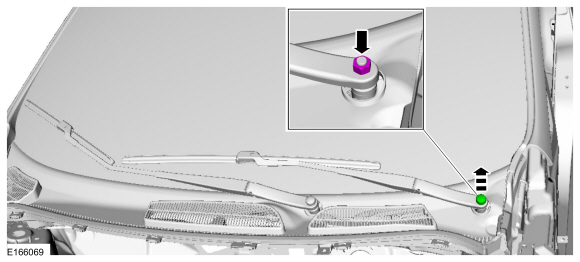

  1. Remove the windshield wiper pivot arm nut cover and remove the windshield wiper pivot arm nut.
    Torque: 18 lb.ft (24 Nm)
  1. Remove the wiper pivot arm.

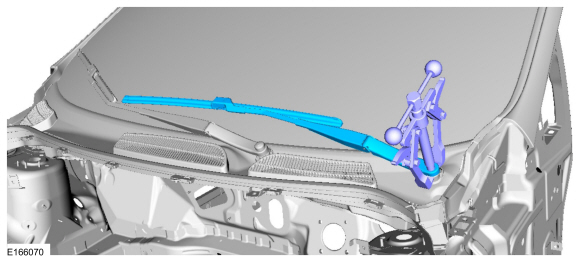

    Use the General Equipment: Two Leg Puller

Installation

  1. NOTE: Make sure that the windshield wipers are in the PARK position.

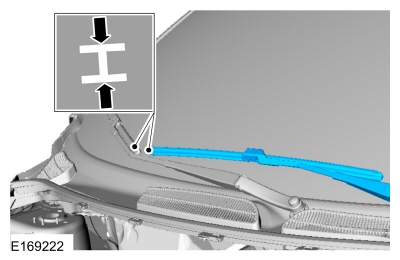

    NOTE: During installation align the wiper pivot arms with the marks on the windshield.

    Align the wiper blade(s) within the marks on the windshield.
  1. To install, reverse the removal procedure.
