Ford Fiesta: Body Closures / Luggage Compartment Lid. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Body Closures / Luggage Compartment Lid. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

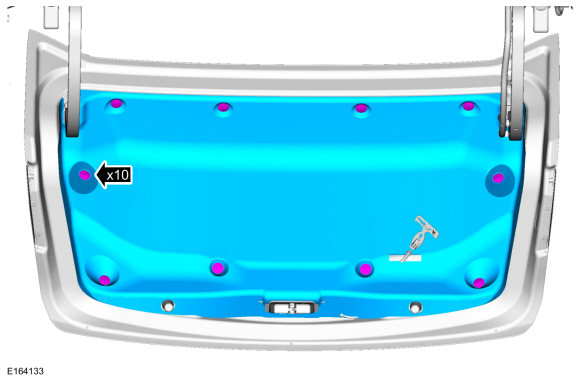

  1. Remove the pin-type retainers and the luggage compartment lid trim panel.

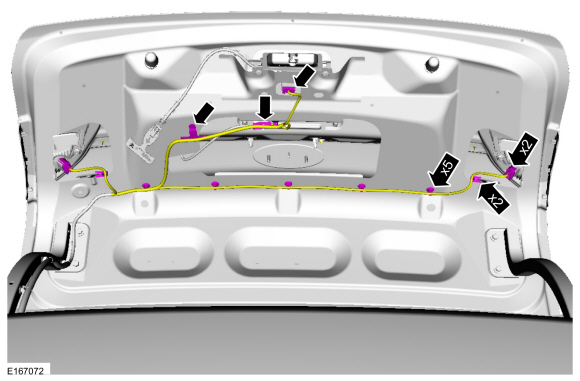

  1. Disconnect the electrical connectors, detach the wiring harness retainers and position the wiring harness aside.
  1. NOTE: This step requires the aid of another technician.

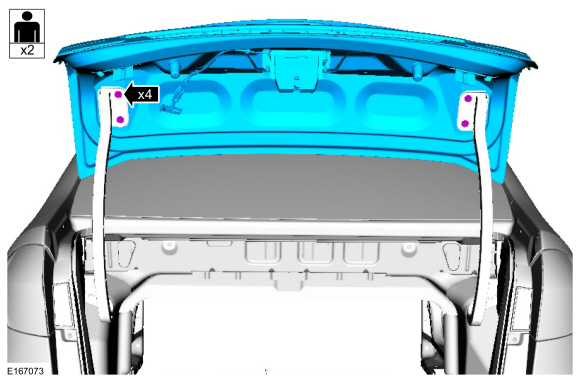

    Remove the bolts and the luggage compartment lid.
    Torque: 97 lb.in (11 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. Check the alignment and correct if necessary.
    Refer to: Luggage Compartment Lid Alignment (501-03 Body Closures, General Procedures).
