Ford Fiesta: Wipers and Washers / Windshield Washer Reservoir. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Wipers and Washers / Windshield Washer Reservoir. Removal and Installation

Removal

Remove LH fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

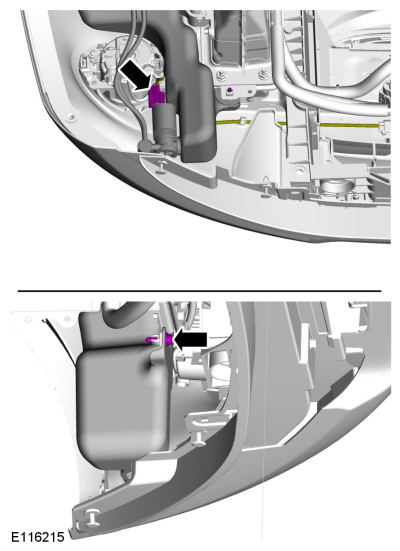

Disconnect the electrical connector and remove the bolt.

Remove LH headlamp.
Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

NOTICE: Make sure the open end of the hose is secured above the fluid level in the reservoir.

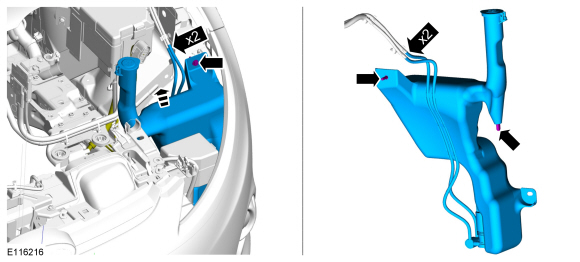

Remove the windshield washer reservoir.
- Remove the reservoir bolt.
- Detach the washer hoses.

Installation

NOTE: Transfer parts as necessary.
To install, reverse the removal procedure.
