Ford Fiesta: Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Oil Pressure Switch. Removal and Installation
Special Tool(s) /
General Equipment
Strap Wrench |
Oil Drain Equipment |
Hose Clamp Remover/Installer |
Materials
Name |
Specification |
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil XO-5W20-Q1SP |
WSS-M2C945-B1
|
Motorcraft® Thread Sealant with PTFE TA-24-B |
WSK-M2G350-A2
|
Removal
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-
-

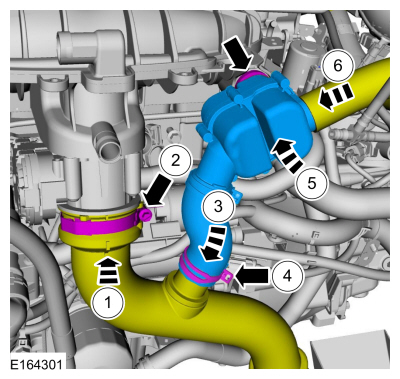

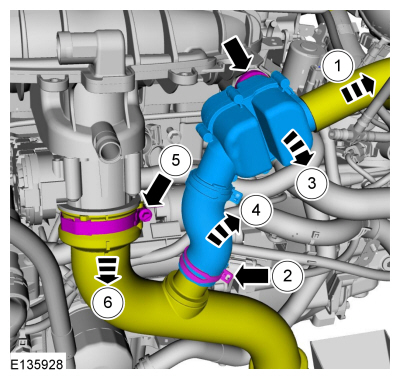

Disconnect the resonator assembly hose. Loosen the clamps and remove the resonator assembly.
Use the General Equipment: Hose Clamp Remover/Installer
-
Loosen the clamps and position aside the CAC hose.
-
Disconnect the EVAP tube from the CAC outlet tube.
-
-
Disconnect the electrical connector.
-

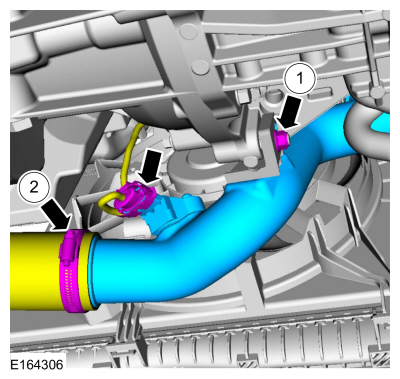

Remove the nut, loosen the clamp and remove the CAC outlet tube.
-

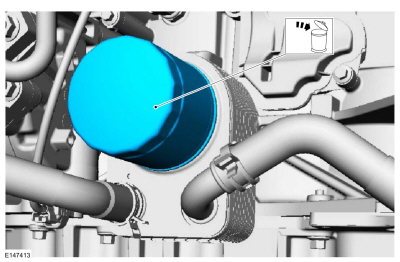

Remove and discard the oil filter.
Use the General Equipment: Oil Drain Equipment
Use the General Equipment: Strap Wrench
-

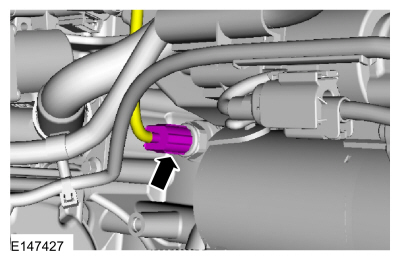

Disconnect the EOP switch electrical connector.
-

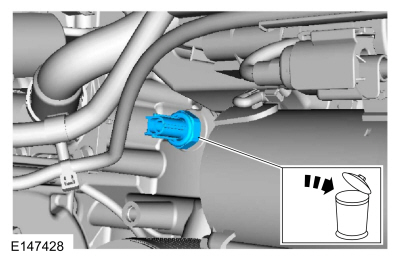

Remove and discard the EOP switch.
Installation
-

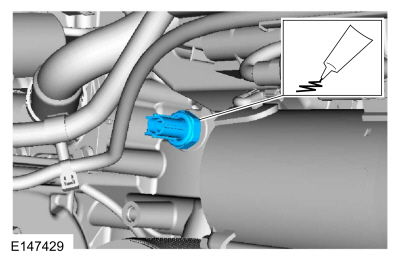

Install a new EOP switch.
Material: Motorcraft® Thread Sealant with PTFE
/ TA-24-B
(WSK-M2G350-A2)
Torque:
159 lb.in (18 Nm)
-

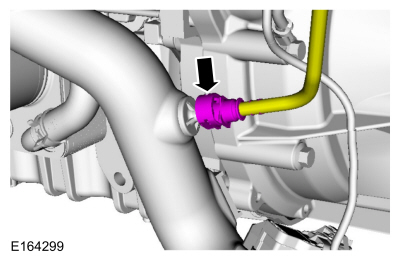

Connect the EOP switch electrical connector.
-

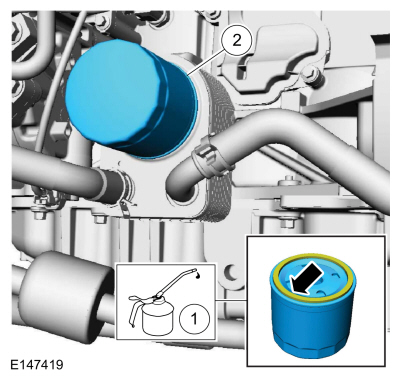

Lubricate the new engine oil filter O-ring seal with clean engine oil and install.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
/ XO-5W20-Q1SP
(WSS-M2C945-B1)
Torque:
128 lb.in (14.5 Nm)
-
-

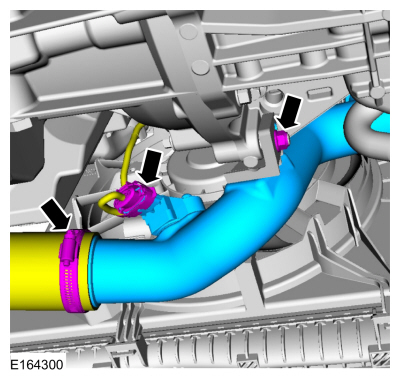

Install the CAC outlet tube and the nut.
Torque:
133 lb.in (15 Nm)
-
Tighten the hose clamp and connect the electrical connector.
Torque:
44 lb.in (5 Nm)
-
Connect the TP sensor electrical connector.
-
-
Position the CAC hose and tighten the clamp.
Torque:
44 lb.in (5 Nm)
-
Install the resonator assembly and connect the resonator assembly hoses.
Use the General Equipment: Hose Clamp Remover/Installer
