Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Front Door Tweeter Speaker. Removal and Installation
Removal
-
Remove the front door handle.
Refer to: Interior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
-

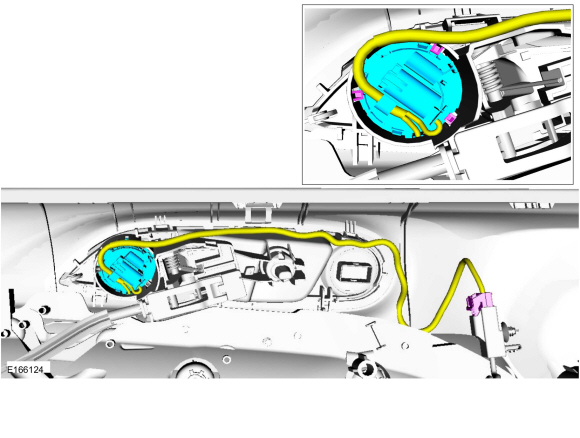

Release the tabs and remove the front door tweeter speaker.
-
Disconnect the electrical connector.
Installation
-
To install, reverse the removal procedure.
Removal
Remove the front door handle.
Refer to: Interior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation)...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
