Ford Fiesta: Interior Trim and Ornamentation / Liftgate Trim Panel. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Interior Trim and Ornamentation / Liftgate Trim Panel. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

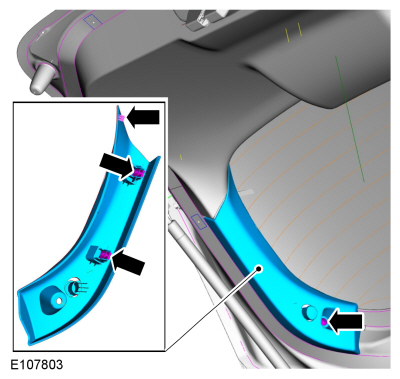

Release the clips and remove the LH upper side trim panel.

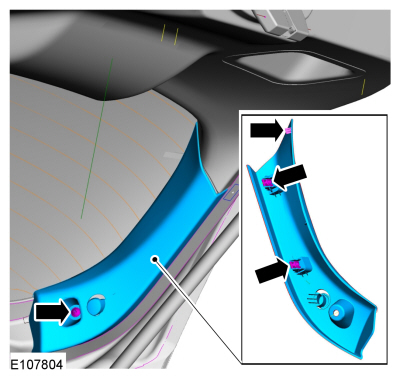

Release the clips and remove the RH upper side trim panel.

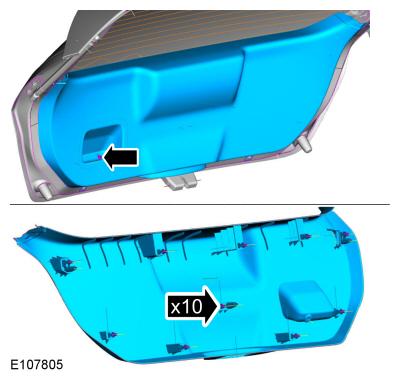

Remove the retainer, release the clips and remove the liftgate lower trim panel.

Installation

To install, reverse the removal procedure
