Ford Fiesta: Handles, Locks, Latches and Entry Systems / Liftgate Release Switch. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Liftgate Release Switch. Removal and Installation

Removal

Remove the luggage compartment lid moulding - 5 door.
Refer to: Luggage Compartment Lid Moulding - 5-Door (501-08 Exterior Trim and Ornamentation, Removal and Installation).

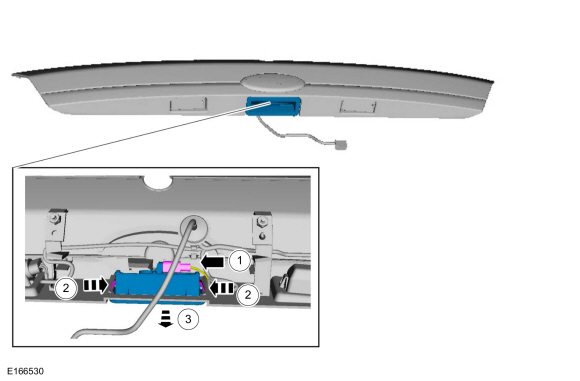

Remove the liftgate release switch.
1. Disconnect the liftgate release switch electrical connector.
1. Release the retaining tabs.
1. Remove the liftgate release switch.

Installation

To install, reverse the removal procedure.
