Ford Fiesta: Instrument Panel and Console / Instrument Panel Center Upper Trim Panel. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Instrument Panel and Console / Instrument Panel Center Upper Trim Panel. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

  1. NOTE: Instrument panel center upper trim panel with 6.5 inch screen shown, 4.2 inch screen similar.

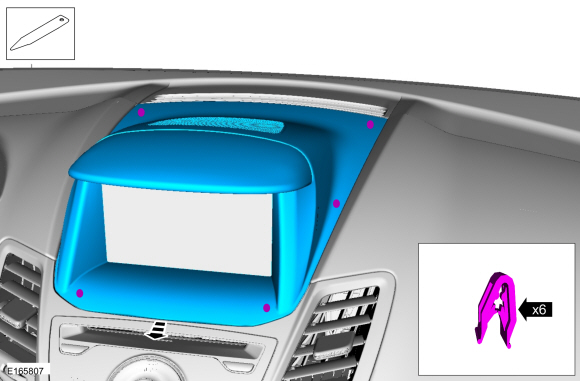

    Release the clips and remove the instrument panel center upper trim panel.
    Use the General Equipment: Interior Trim Remover

Installation

  1. To install, reverse the removal procedure.
