Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Information and Entertainment System - Component Location. Description and Operation
Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Information and Entertainment System - Component Location. Description and Operation

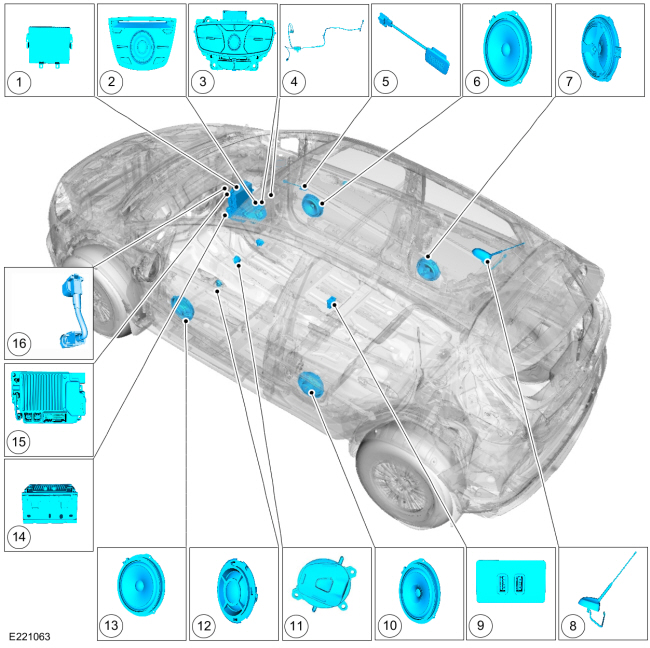

| Item | Description |
|---|---|
| 1 | 6.5-inch (165 mm) FDIM |
| 2 | FCIM (with Sony®) |
| 3 | FCIM (without Sony®) |
| 4 | Front AM / FM /HD Radio® (if equipped) antenna coaxial cable and satellite radio/ GPS splitter/cable assembly |
| 5 | Microphone (located in the headliner) |
| 6 | RHF door midwoofer speaker ( LHF also shown) (without Sony®) |
| 7 | RHR door co-axial speaker ( LHR also shown) (with Sony®) |
| 8 | AM / FM /HD Radio® (if equipped)/satellite radio/ GPS antenna |
| 9 | USB hub |
| 10 | LHR door full-range speaker ( RHR also shown) (without Sony®) |
| 11 | LH steering wheel switches |
| 12 | LHF door tweeter speaker ( RHF also shown) |
| 13 | LHF door woofer speaker ( RHF also shown) (with Sony®) |
| 14 | ACM |
| 15 | APIM |
| 16 | LVDS (Low Voltage Differential Signaling) cable |
| - | Rear AM / FM /HD Radio® (if equipped) antenna coaxial cable and satellite radio/ GPS coaxial cable assembly (Not shown) (Part of the 14A630 harness) |
| - | USB cable (Not shown) (Part of the 14401 harness) |
Information and Entertainment System - Overview. Description and Operation
Overview
The audio system consists of the following:
Main Components:
6 speakers
6.5-inch (165 mm) FDIM touchscreen
ACM
AM / FM /HD Radio® (if equipped)/satellite radio/ GPS antenna
APIM
Non-branded or Sony®-branded FCIM
LH audio steering wheel switches
USB hub
Main Features:
AM radio
..
Other information:
