Ford Fiesta: Exterior Lighting / Headlamp Assembly. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Lighting / Exterior Lighting / Headlamp Assembly. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

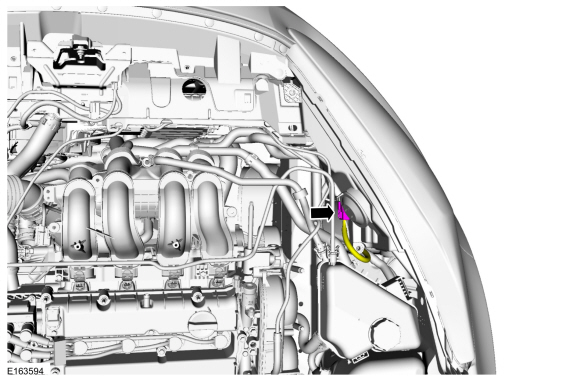

Disconnect the headlamp electrical connector.

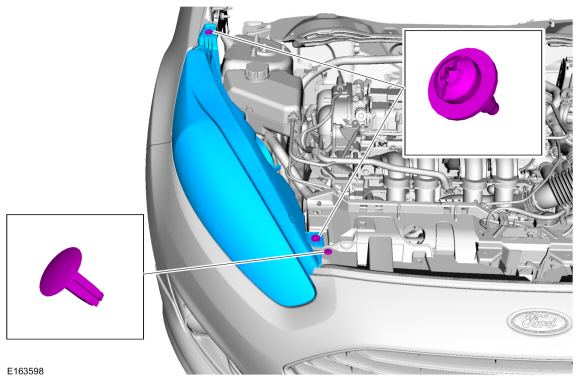

Remove the bolt and remove the headlamp assembly.
Torque: 44 lb.in (5 Nm)

Installation

To install, reverse the removal procedure.

If a new headlamp assembly has been installed.
Refer to: Headlamp Adjustment (417-01 Exterior Lighting, General Procedures).

Front Fog Lamp Adjustment. General Procedures

Adjustment NOTE: Horizontal aim is not required for this vehicle and is not adjustable. Consult your state vehicle inspection center for recommended tolerance ranges for visual aiming...

Headlamp Bulb. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. WARNING: The bulb contains gas under pressure...
