Ford Fiesta: Handles, Locks, Latches and Entry Systems / Luggage Compartment Lid Release Switch. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Luggage Compartment Lid Release Switch. Removal and Installation

Removal

  1. Remove the luggage compartment lid moulding - 4 door.
    Refer to: Luggage Compartment Lid Moulding - 4-Door (501-08 Exterior Trim and Ornamentation, Removal and Installation).

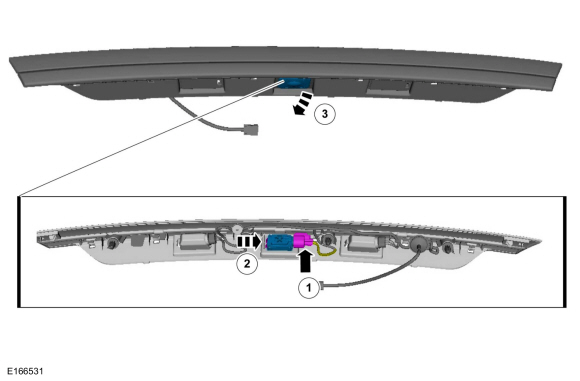

  1. Remove the luggage compartment lid release switch.
    1. Disconnect the electrical connector.
    1. Remove the retainers.
    1. Remove the luggage compartment lid release switch.

Installation

  1. To install, reverse the removal procedure.
