Ford Fiesta: Clutch Controls - 5-Speed Manual Transmission – B5/IB5/6-Speed Manual Transmission – B6 / Clutch Pedal. Removal and Installation

Removal

  WARNING: Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

  WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

  WARNING: Do not allow the brake master cylinder to run dry during the bleeding operation. Master cylinder may be damaged if operated without fluid, resulting in degraded braking performance. Failure to follow this instruction may result in serious personal injury.

  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: When any part of the hydraulic system has been disconnected for repair or new installation, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be bled manually or with pressure bleeding equipment.

1. Remove the battery tray.
   Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) – Sigma (414-01 Battery, Mounting and Cables, Removal and Installation).

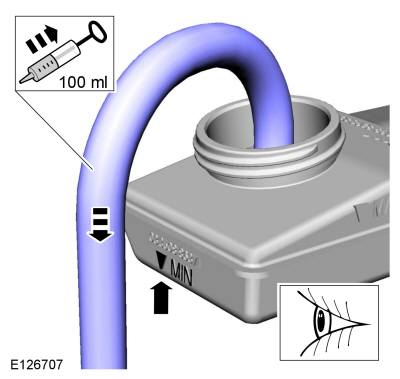

1. Using a suction gun, drain the brake fluid reservoir to the MIN mark.

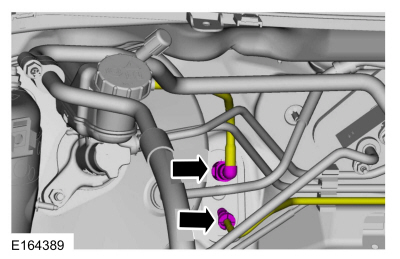

1. Disconnect and remove the clutch tube fittings.

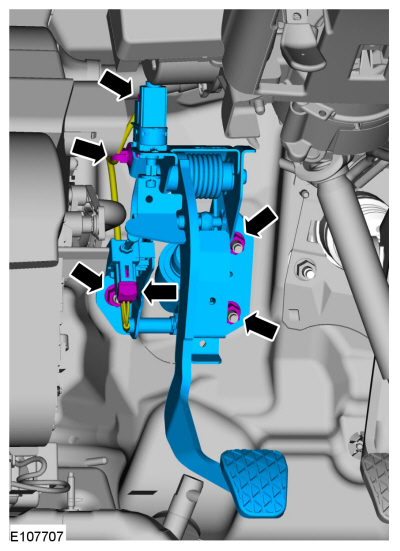

1. • Detatch the retainer and disconnect the electrical connector.

   • Remove the nuts and the clutch pedal.


Installation

1. • Install the clutch pedal and the nuts.
     Torque: 18 lb.ft (25 Nm)
   • Attatch the retainer and connect the electrical connector.

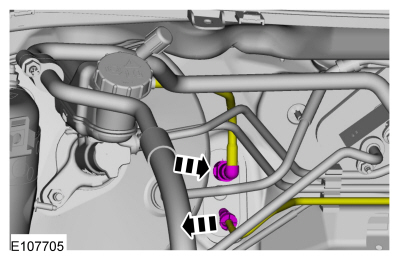

1. Install the clutch tube fittings.


1. Bleed the clutch system.
   Refer to: Clutch System Bleeding (308-02 Clutch Controls - 5-Speed Manual Transmission – B5/IB5/6-Speed Manual Transmission – B6, General Procedures).
