Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Audio Unit Antenna. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Audio Unit Antenna. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Lower the headliner.
Refer to: C-Pillar Upper Trim Panel - 4-Door (501-05 Interior Trim and Ornamentation, Removal and Installation).
Refer to: Headliner - 5-Door (501-05 Interior Trim and Ornamentation, Removal and Installation).

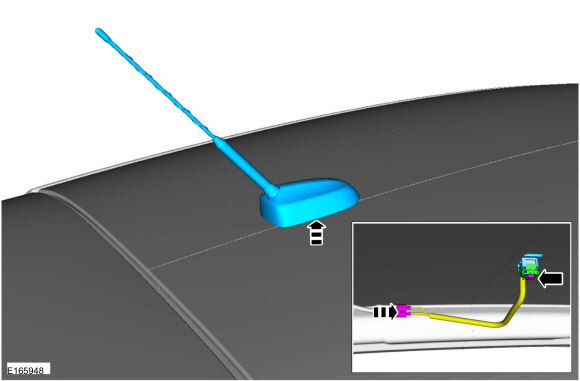

Remove the retainer, audio unit antenna and harness through the roof opening.
- Disconnect the electrical connectors.
  Torque: 80 lb.in (9 Nm)

Installation

To install, reverse the removal procedure.

SYNC Module [APIM] Programming. General Procedures

Activation WARNING: Before beginning any service procedure in this section, refer to Health and Safety Precautions in section 100-00 General Information...

Audio Unit Antenna Cable. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Front cable Remove the ACM . Refer to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display, Removal and Installation)...
