Ford Fiesta: Exterior Lighting / Front Fog Lamp. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Lighting / Exterior Lighting / Front Fog Lamp. Removal and Installation

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Remove the appropriate wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
  1. NOTE: If equipped.

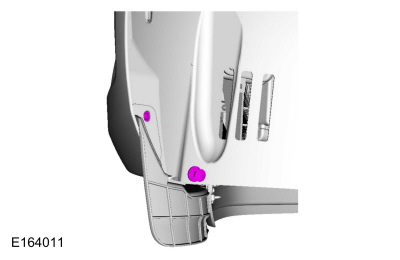

    Remove the screw and the pin-type retainer.
  1. NOTE: If equipped.

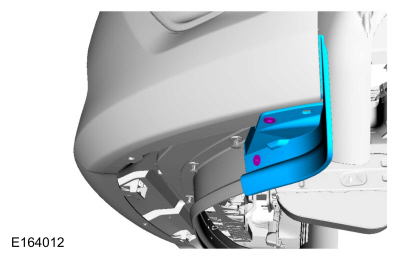

    Remove the screws and the front stone deflector extension.

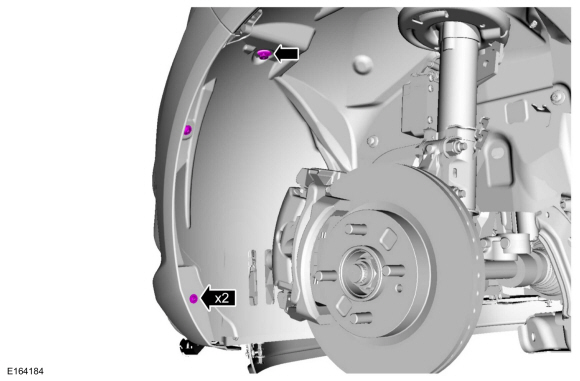

  1. Remove the plastic rivets and bolt from the front of the fender liner.

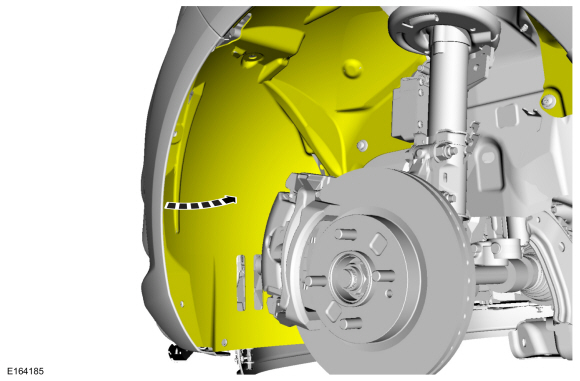

  1. Position the fender splash shield.

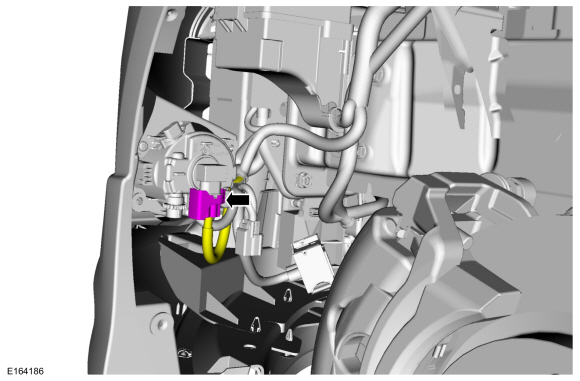

  1. Disconnect the fog lamp electrical connector.

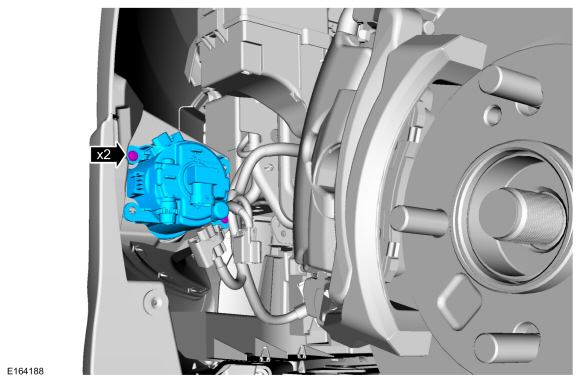

  1. Remove the screws and the front fog lamp assembly.

Installation

  1. To install, reverse the removal procedure.
  1. Refer to: Front Fog Lamp Adjustment (417-01 Exterior Lighting, General Procedures).
