Ford Fiesta: Bumpers / Front Bumper Cover. Disassembly and Assembly

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Bumpers / Front Bumper Cover. Disassembly and Assembly

DISASSEMBLY

NOTE: Disassembly steps in this procedure may contain assembly details.

  1. Remove the front bumper cover.
    Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
  1. NOTE: The ST foglamp bezel is shown, the base foglamp bezel is similar.

    On both sides.

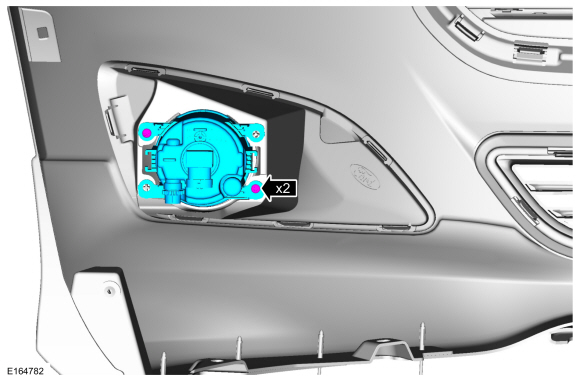

    Remove the screws and the fog lamp.
  1. On both sides.

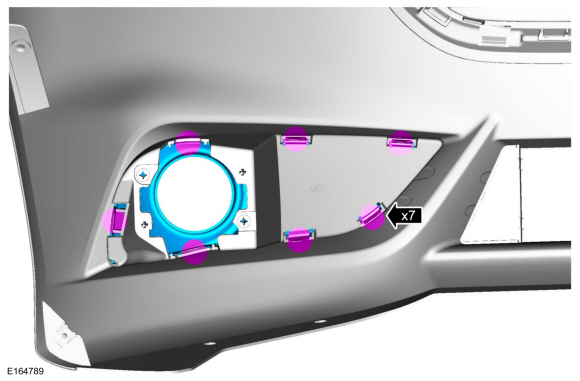

    Release the tabs and remove the fog lamp bezel panel.

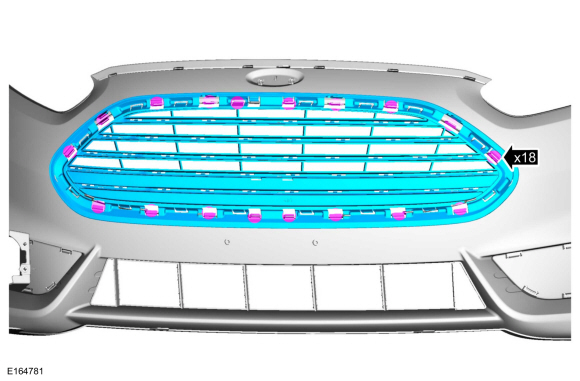

  1. Release the tabs and remove the upper radiator grille.

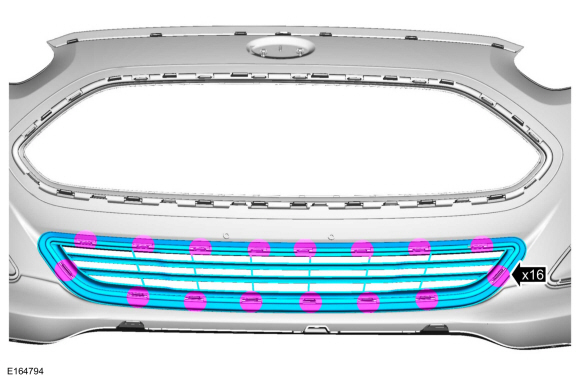

  1. Release the tabs and remove the lower radiator grille.

ASSEMBLY

  1. To assemble, reverse the disassembly procedure.
