Ford Fiesta: Engine Emission Control - 1.6L EcoBoost (132kW/180PS) – Sigma / Crankcase Vent Oil Separator. Removal and Installation

Materials

Name Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
XO-5W20-Q1SP
WSS-M2C945-B1


Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the intake manifold.
    Refer to: Intake Manifold (303-01B Engine - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).
  1. Remove the starter motor.
    Refer to: Starter Motor (303-06B Starting System - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

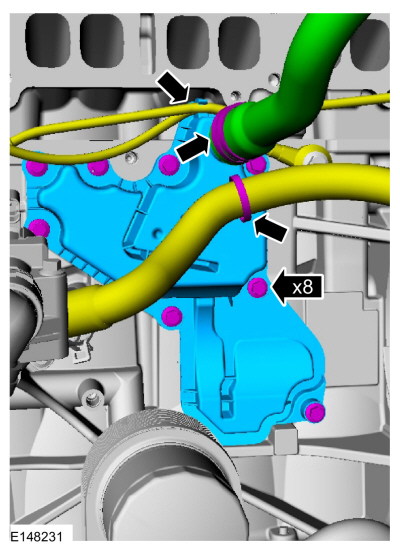

    • Disconnect the crankcase oil separator hose.
    • Detach the knock sensor wiring harness from the harness retainer.
    • Detach the coolant hose from the hose retainer.
    • Remove the crankcase vent oil separator bolts and then remove the crankcase vent oil separator.

Installation

NOTICE: Make sure that the mating faces are clean and free of foreign material.

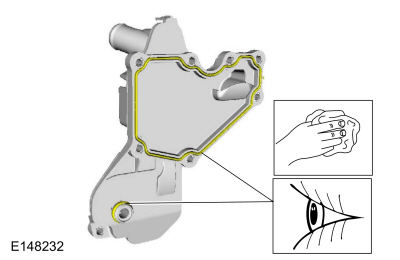

  1. Inspect the crankcase vent oil separator gasket and the spigot O-ring seal. Replace as needed.

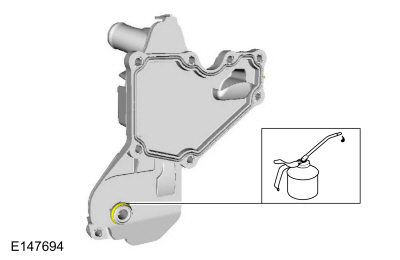

  1. Lubricate the spigot O-ring seal with clean engine oil.
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
    1. Push the spigot into the engine block.
    1. Start all of the bolts finger tight.

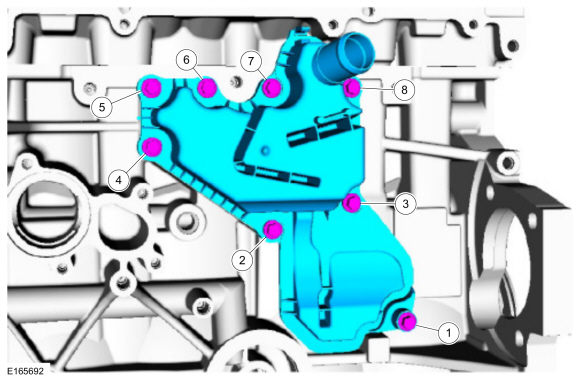

    1. Tighten bolts 1, 2 and 3.
      Torque: 49 lb.in (5.5 Nm)
    1. Tighten bolts 4, 5, 6, 7 and 8.
      Torque: 49 lb.in (5.5 Nm)
    1. Tighten all bolts in sequence.
      Torque: 84 lb.in (9.5 Nm)
  1. To install, reverse the removal procedure.
