Ford Fiesta: Engine System - General Information / Valve Stem Diameter. General Procedures

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine System - General Information / Valve Stem Diameter. General Procedures

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

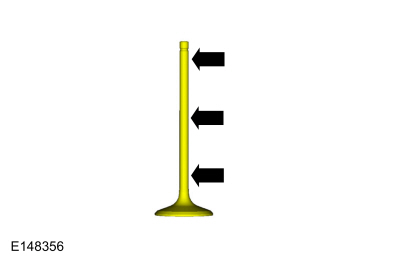

Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.

Valve Guide Inner Diameter. General Procedures

Check NOTE: Refer to the appropriate Section 303-01 for the specification. NOTE: Valve guides tend to wear in an hourglass pattern...

Powertrain/Drivetrain Mount Neutralizing. General Procedures

Adjustment Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation). Remove the battery tray...
