Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Universal Serial Bus (USB) Hub. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Universal Serial Bus (USB) Hub. Removal and Installation

Removal

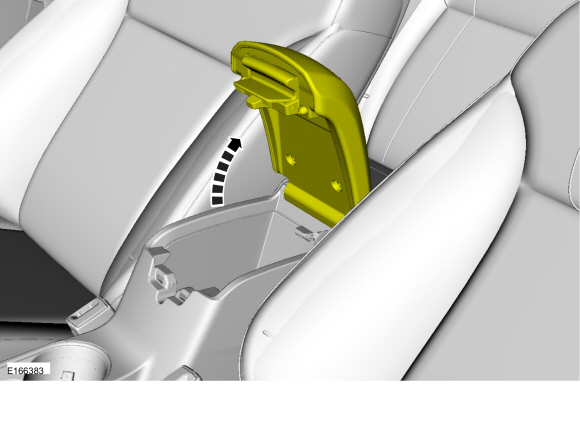

Open the floor console armrest.

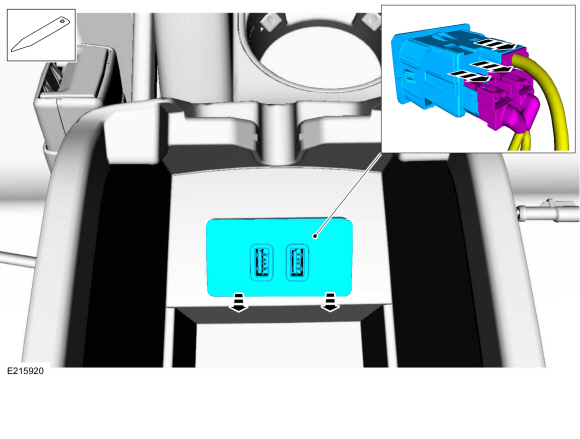

Remove the media hub.
- Disconnect the electrical connectors.

Installation

To install, reverse the removal procedure.

SYNC Module [APIM] to Universal Serial Bus (USB) Port Cable. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: The instrument panel and floor console USB cables are taped into the wiring harness...

Lighting

Other information:

Ford Fiesta 2014 - 2019 Service Manual: Rear Window Wiper Motor. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the nut and the rear wiper pivot arm. Torque: 133 lb.in (15 Nm) Remove the liftgate trim panel. Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation). Remove the rear ..

Ford Fiesta 2014 - 2019 Service Manual: Brake Booster. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the brake master cylinder. Refer to: Brake Master Cylinder (206-06 Hydraulic Brake Actuation, Removal and Installation). NOTICE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pe..

Front Strut and Spring Assembly. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component to the left-hand side.

Remove the nuts and position aside the remote brake fluid reservoir.
Torque: 62 lb.in (7 Nm)

Remove the strut and spring assembly upper mount nuts.
Torque: 22 lb.ft (30 Nm)
