Ford Fiesta: Side Panel Sheet Metal Repairs / A-Pillar Outer Panel. Removal and Installation
Special Tool(s) /
General Equipment
Resistance Spotwelding Equipment |
Hot Air Gun |
Air Body Saw |
8 mm Drill Bit |
MIG/MAG Welding Equipment |
Spot Weld Drill Bit |
Materials
Name |
Specification |
Metal Bonding Adhesive TA-1, TA-1-B, 3M™ 08115, LORD Fusor® 108B, Henkel Teroson EP 5055 |
-
|
Seam Sealer TA-2-B, 3M™ 08308, LORD Fusor® 803DTM |
-
|
Flexible Foam Repair 3M™ 08463, LORD Fusor® 121 |
-
|
Removal
-
WARNING:
Before beginning any service procedure in this
manual, refer to health and safety warnings in section 100-00 General
Information. Failure to follow this instruction may result in serious
personal injury.
Refer to: Body Repair Health and Safety and General Precautions (100-00 General Information, Description and Operation).
-
Remove the following items:
Refer to: Windshield Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).
Refer to: Front Door (501-03 Body Closures, Removal and Installation).
Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
Refer to: Front Seat (501-10 Seating, Removal and Installation).
Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
Refer to: Fender (501-02 Front End Body Panels, Removal and Installation).
Refer to: Front Door (501-03 Body Closures, Removal and Installation).
Refer to: Front Bumper (501-19 Bumpers, Removal and Installation).
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).
Refer to: Front Fog Lamp (417-01 Exterior Lighting, Removal and Installation).
-
Remove the fender apron panel reinforcement.
Refer to: Fender Apron Panel Reinforcement (501-27 Front End Sheet Metal Repairs, Removal and Installation).
-
Reposition the carpeting and wiring harness away from the working area.
-
Remove the door hinges and door opening weatherstrip.
-
NOTICE:
Use caution to cut the outer panel only.

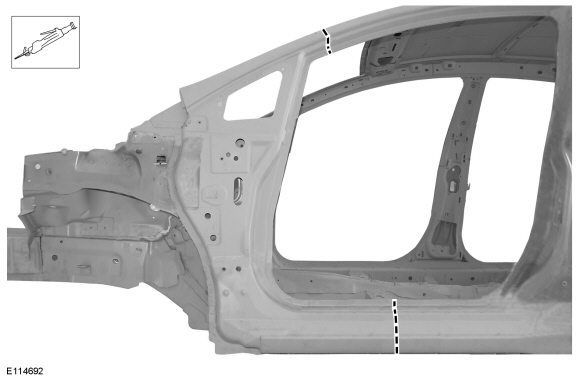

Carefully cut the A-pillar outer panel section.
Use the General Equipment: Air Body Saw
-

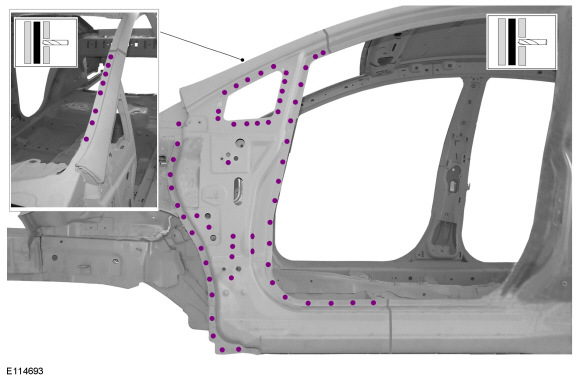

Drill out the spot welds.
Use the General Equipment: Spot Weld Drill Bit
-

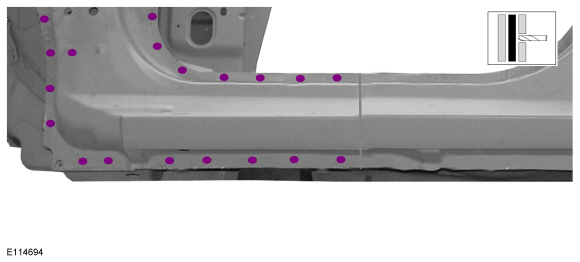

Drill out the spot welds.
Use the General Equipment: Spot Weld Drill Bit
-

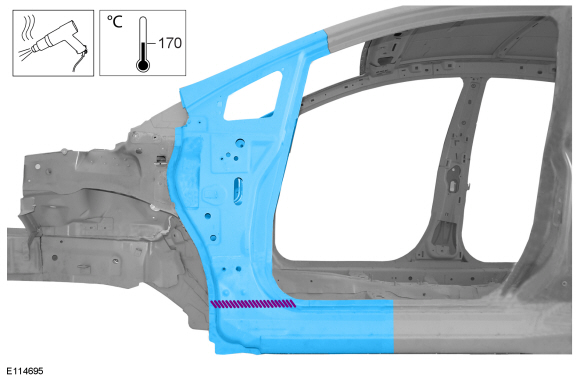

Break the adhesive bond and remove the A-pillar outer panel.
Use the General Equipment: Hot Air Gun
Installation
-
Carefully cut the replacement panel to fit repair area.
-

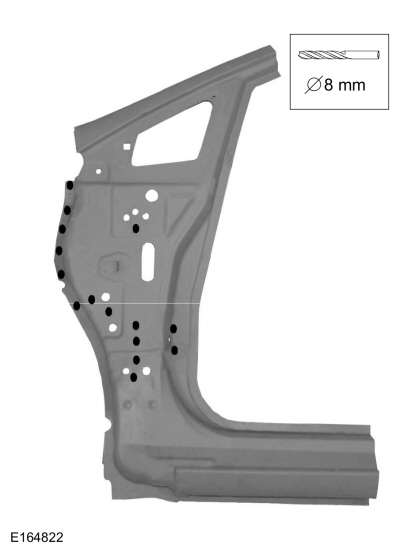

Drill plug weld holes in the replacement A-pillar outer panel.
Use the General Equipment: 8 mm Drill Bit
-

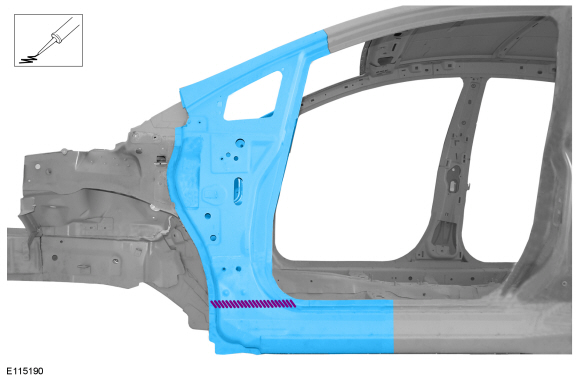

Apply adhesive and install the replacement A-pillar outer panel as indicated.
Material: Metal Bonding Adhesive
/ TA-1, TA-1-B, 3M™ 08115, LORD Fusor® 108B, Henkel Teroson EP 5055
-

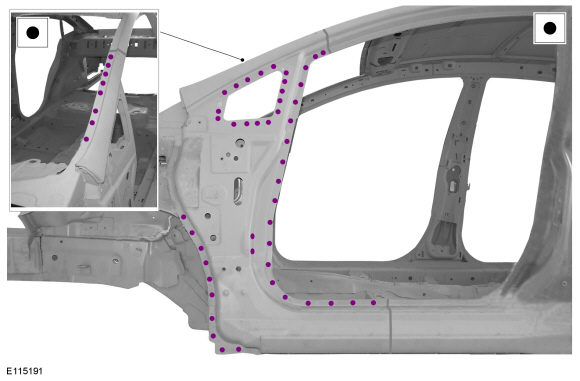

Spot weld the door opening portion and the windshield flange area of the A-pillar panel.
Use the General Equipment: Resistance Spotwelding Equipment
-

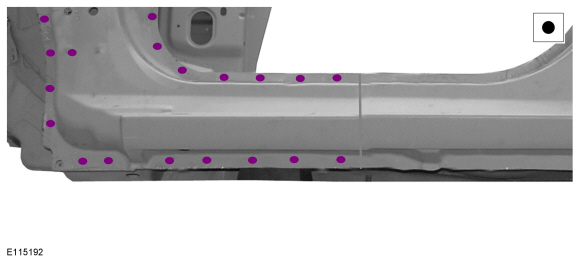

Spot weld the lower portion of the A-pillar panel.
Use the General Equipment: Resistance Spotwelding Equipment
-

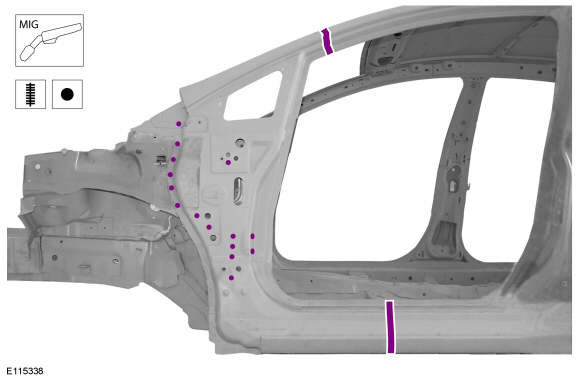

Seam and spot weld the A-pillar panel.
Use the General Equipment: MIG/MAG Welding Equipment
Use the General Equipment: Resistance Spotwelding Equipment
-
-

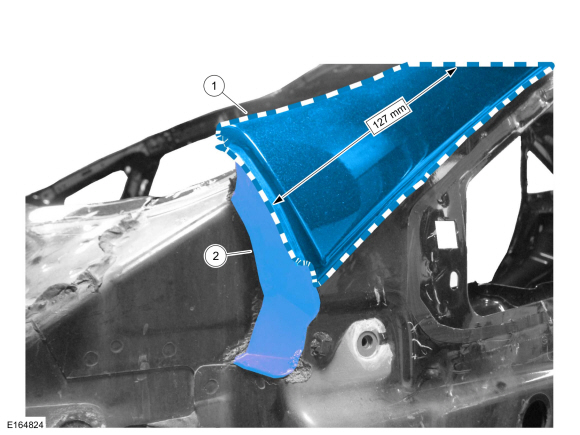

Fill the cavity approximately 127 mm (5 in) with NVH foam.
-
Immediately insert the baffle in to the NVH material before it has cured.
Material: Flexible Foam Repair
/ 3M™ 08463, LORD Fusor® 121
-
Metal finish the repair area using typical metal finishing techniques.
-
Sand and prime repair area using a Ford approved paint system.
-
Sealing work: All areas must be sealed to production level.
Material: Seam Sealer
/ TA-2-B, 3M™ 08308, LORD Fusor® 803DTM
-
Refinish using a Ford approved paint system.
-
Restore corrosion protection.
Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).
-
Install the door hinges and door opening weatherstrip.
-
Reposition the wiring harness and carpeting to original location.
-
Install the apron panel reinforcement.
Refer to: Fender Apron Panel Reinforcement (501-27 Front End Sheet Metal Repairs, Removal and Installation).
-
Install the following items:
Refer to: Front Seat (501-10 Seating, Removal and Installation).
Refer to: Windshield Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).
Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
Refer to: Fender (501-02 Front End Body Panels, Removal and Installation).
Refer to: Front Door (501-03 Body Closures, Removal and Installation).
Refer to: Front Bumper (501-19 Bumpers, Removal and Installation).
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).
Refer to: Front Fog Lamp (417-01 Exterior Lighting, Removal and Installation).
-
Align the front door.
Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).
-
Install and align the hood.
Refer to: Hood Alignment (501-03 Body Closures, General Procedures).
