Ford Fiesta: Fuel Charging and Controls - Turbocharger - 1.6L EcoBoost (132kW/180PS) – Sigma / Turbocharger - Component Location. Description and Operation
Ford Fiesta 2014 - 2019 Service Manual / Engine / Fuel Charging and Controls - Turbocharger - 1.6L EcoBoost (132kW/180PS) – Sigma / Turbocharger - Component Location. Description and Operation
1.6L EcoBoost

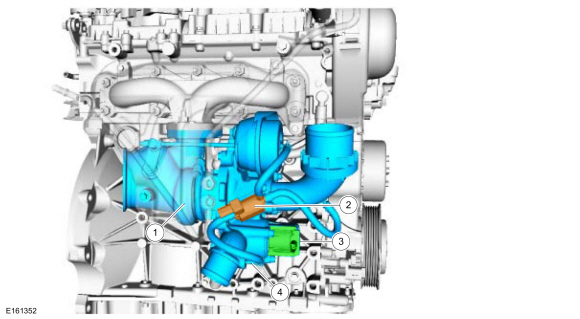

| Item | Description |
|---|---|
| 1 | Turbocharger |
| 2 | Wastegate control valve solenoid |
| 3 | Turbocharger bypass valve |
| 4 | Pressure side of compressor |
Specifications
T..
Turbocharger - Overview. Description and Operation
Overview
NOTICE:
Whenever turbocharger air intake system components are
removed, always cover open ports to protect from debris. It is important
that no foreign material enter the system...
