Ford Fiesta: Rear Suspension / Rear Suspension - Component Location. Description and Operation

Ford Fiesta 2014 - 2019 Service Manual / Suspension / Rear Suspension / Rear Suspension - Component Location. Description and Operation

NOTE: Base model shown, ST similar.

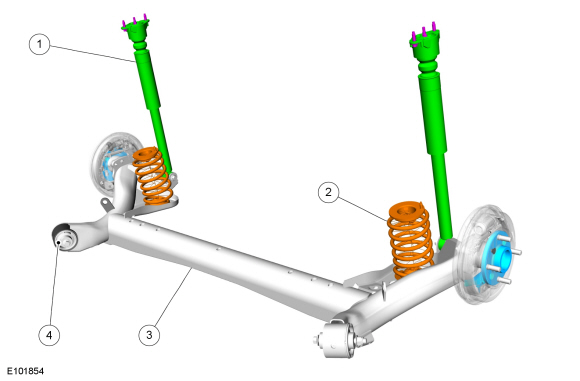

Item Description
1 Shock absorber
2 Spring
3 Twist-beam rear axle
4 Twist-beam rear axle receiver bearing

    Rear Suspension

    ..

    Rear Suspension - Overview. Description and Operation

    Overview Characteristics of rear axle: Twist-beam axle (torsionally rigid axle) Single-pipe gas shock absorbers with stable damping performance for optimum handling Axle suspension uses large rubber bushes for optimum ride comfort Function If compression takes place on both wheels evenly (for example when a load is placed on the vehicle), the who..
