Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC / Front Control/Display Interface Module (FCDIM). Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC / Front Control/Display Interface Module (FCDIM). Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel center upper trim panel.
Refer to: Instrument Panel Center Upper Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).

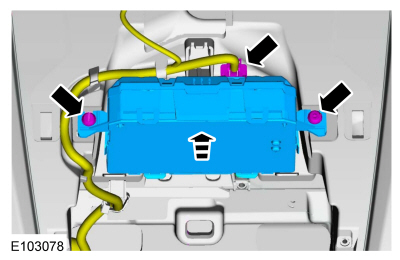

Remove the bolts and the FCDIM .
- Disconnect the electrical connector.
  Torque: 11 lb.in (1.2 Nm)

Installation

To install, reverse the removal procedure.

Front Controls Interface Module (FCIM). Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: This step is only necessary when installing a new component...

Front Door Tweeter Speaker. Removal and Installation

Removal Remove the front door handle. Refer to: Interior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation)...
